Why do you need makeup air

WHAT IS MAKE-UP AIR? Make-up air is designed to “make up” the air in your interior space that has been removed due to process exhaust fans. This type of HVAC solution pulls in fresh, tempered air from outside your building to replace existing air that cannot be recirculated.

Why do I need makeup air for my range hood?

In homes with naturally drafted fuel-fired appliances like a boiler inside the envelope, kitchen range hoods that exhaust more than 400 cu. … of air per minute require makeup air so they don’t depressurize the home and draw combustion gases from the appliance into the living space.

Does a dryer need makeup air?

Makeup air shall be provided for Type 1 clothes dryers in accordance with the manufacturer’s instructions. … 3.1] Where a closet is designed for the installation of a clothes dryer, an opening of not less than 100 square inches (0.065 m2) for makeup air shall be provided in the door or by other approved means.

What happens if you don't have make up air?

Without enough make up air, the building pressure becomes negative. This can cause all kinds of problems and wreak havoc on your entire ventilation system as well as the comfort of your personnel and customers.

Are kitchen vents required?

In California, vent hoods are required that produce 100 cfm or more intermittently or produce 5 air exchanges in one hour. This is required in all residential areas, remodeled homes, or areas that are 1000 square feet or larger.

At what CFM do you need makeup air?

New building codes require what is called “make-up air” to be installed when a kitchen ventilation hood exceeds 400 CFM (cubic feet of air per minute). Many gas range and cooktop manufacturers recommend well over 400 CFMs for a ventilation hood especially when you exceed 4 burners on your appliance.

How do you calculate air makeup requirements?

Divide room volume (Step 1) by total/1000 (Step 2). If less than 50, additional air is needed. If greater than or equal to 50, no additional air is needed.

Is 400 cfm enough for a gas range?

Smoke and steam will stay in your kitchen, as well as cooking odors, which is not ideal. But if the size of your duct matches your ventilation power, your kitchen exhaust fan will do its job properly and quietly. A good rule of thumb for estimating duct diameter and CFM requirements is: 400 to 600 CFM = 6” to 8” duct.

Do kitchen fans bring in outside air?

Though several vent hoods exhaust air to the outside, few recirculate the air to the kitchen. In a recirculating system, filters can be used to remove odors in addition to the grease. … Kitchen, bathroom, and whole-house systems improve ventilation, letting out the bad to the better indoor environment.

Why do commercial kitchens need make up air units?

Make-Up Air Units Help minimize smoke, unpleasant odors, and stale air. A very noticeable benefit of having a make-up air system to create balanced air pressure for your restaurant or commercial kitchen is that it helps to minimize the presence of smoke, odors, and stuffy, stale air.

Article first time published on

What is the difference between an air handling unit and a make up air unit?

AN AHU is a component that has the purpose of conditioning and circulating air. … Bigger air handlers, which are used to condition 100% of the outside air, and use zero re-circulated air, are known as a makeup air unit or MAU.

Do gas dryers need combustion air?

In this context, the vent that directs combustion products is the vent that directs hot air and lint. They are one and the same for gas dryers. All gas dryers must vent outside or carbon monoxide would build possibly killing you.

How many CFM does a dryer exhaust?

Typically, a dryer will exhaust around 100 to 250 CFM. This is assuming that your dryer’s capacity, ductwork, and other influencing factors are of standard value.

Does gas dryer need fresh air?

These fresh air vents are commonly installed for fireplaces, gas dryers, or even gas heaters. … It is recommended to install one and is required when up replace your gas appliances.

Do electric stoves need a vent hood?

The truth is that you should consider a vent for your electric stove. Even if you cook one or two times a week, a vent hood can be beneficial for you. It will clean your indoor air and improve your indoor air quality. For electric stoves, we recommend a range hood of at least 600 CFM.

Do I need a vent over my stove?

Yes. A range hood keeps cooking exhaust, chemicals, and smoke out of your kitchen. It improves your indoor air quality and streamlines your cooking experience. Depending on where you live, a range hood may be required by your building codes.

How do you vent a kitchen without a hood?

1. Use a window fan. …
2. Use a portable HEPA air filter. …
3. Use a fan in another room, like the bathroom. …
4. Get a grease splatter guard. …
5. Wipe down your kitchen cabinets frequently. …
6. If you paint your kitchen, use a satin or semi-gloss finish, or choose scrubbable paint.

How much air does a boiler need?

A good rule of thumb is to provide 4 – 6 square inches of unrestricted airflow for every boiler horsepower. As an example, if you have a 60 HP boiler, you can estimate 240 – 360 square inches of area are needed for optimal operation.

How much combustion air do I need?

Combustion air from outside the dwelling 1) Direct opening to outside requires one square inch per 4000 BTU’s (no duct). 2) Opening via horizontal duct requires one square inch per 2000 BTU’s. 3) Opening via vertical duct requires one square inch per 4000 BTU’s.

Does make up air need to be heated?

Heated makeup air systems temper the outside air, preheating it before in enters your HVAC system. This improves both the comfort and the safety of those inside. For areas where is gets very hot, a makeup air unit with cooling is also available.

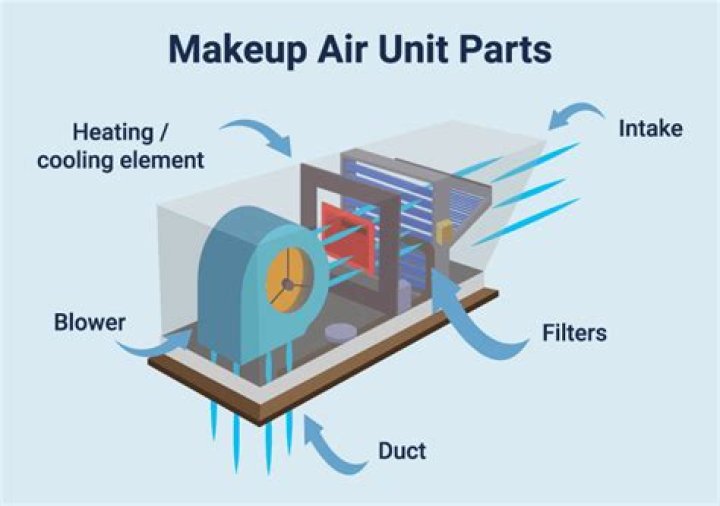

What is a make up air unit used for?

Make-Up Air units are designed to replace exhaust air by bringing in fresh outdoor air into the space and heating or cooling it to the desired condition and discharge the conditioned or tempered air into the building.

Can a bathroom fan be used in kitchen?

No. Fans installed above kitchen ranges must be listed for that application by UL, and must be designed to handle grease and high temperatures. An alternate approach is to use a ducted range hood or downdraft exhaust, and a bathroom ventilation fan to exhaust the general odors and moisture in the kitchen.

What type of venting does not vent outside?

How do ductless range hoods work? Ductless range hoods do not vent to the exterior of the home like ducted hoods. Since they cannot expel the air they take in, these range hoods filter the air and then recirculate it back into the kitchen.

What is the difference between ventilation fan and exhaust fan?

While a ventilation fan works to bring clean air into an enclosed space from an outside source, an exhaust fan removes pollutants from the indoor air in a home or commercial space.

Is 900 cfm enough for range hood?

A range hood with 900+ CFM will be enough to clean your kitchen air and keep your kitchen smelling fresh. In general, it’s better to go with more CFM than less.

How many CFM do I need for a 30 gas range?

A range hood fan should move a minimum of 100 CFM of air for every 12 inches of stove width. This means that if you have a stove that is 30 inches wide then you need a range hood with a fan that rotates at least 250 CFM of air.

How much CFM is too much?

The rule of thumb is that you need at least 1 CFM per square foot of room area. To determine the square footage of your bathroom, multiply the length times the width. For example, if your bathroom is 6 feet wide and 9 feet long, its square footage is 54. Therefore, it should have a fan rated for at least 54 ​CFM.

Should a modern kitchen be air conditioned?

It is not recommended to use AC in kitchen as you will not spend more time in the kitchen instead use fan to get air for yourself. AC in kitchen will absorb cooking oil and blocking of grease on the radiator. More electricity consumption. It will take more time to cook.

Are restaurant kitchen air conditioned?

Commercial kitchens use powerful exhaust fans to draw out air from the kitchen. … If the HVAC system is designed properly, even in an airtight building, some replacement air should enter the kitchen from adjacent areas, such as the dining room.

How do restaurant kitchens stay cool?

1. Don frozen accessories. …
2. Create a ‘bat cave’ …
3. Make the walk-in multipurpose. …
4. Install custom air vents. …
5. Get creative with fans. …
6. Try cold treats. …
7. Allow a costume change.

Do make up air units have filters?

In order to do this effectively and efficiently, your makeup air makeup air supply unit needs proper filtration. Makeup air units work continuously to provide a steady stream of fresh air. Using EZ Kleen air filters is one of the easiest ways to ensure that the air you bring in is clean.
