Why do you need an air gap

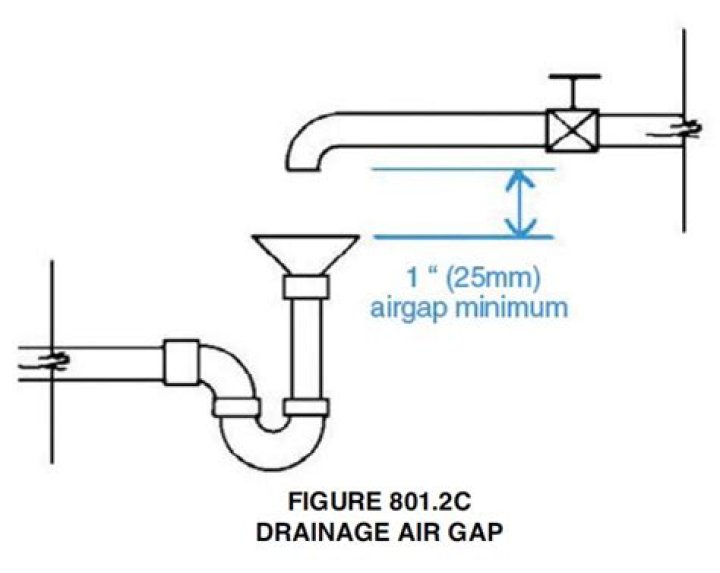

Plumbing codes call for an air gap between portable water and a drain. This gap is usually about the distance between the faucet and the top of the sink or bathtub (one inch or more). Basically, the air gap is there to prevent accidental backflow. If contaminated water backflows, it can cause serious health risks.

Where are air gaps required?

Most plumbing codes require an air gap on the RO drain line to prevent the possibility of contamination. Since RO systems must dispense water through their own faucet, many opt for an air gap faucet that incorporates the air gap inside the body of the faucet itself.

Is an air gap required in Texas?

As an example, in Texas, dishwashers are required to have an ‘air gap’ that prevents dirty water from flowing back into the unit. In other areas of the country though, you can solve this problem by creating a ‘high loop’ with your drain line.

Is air gap required for washing machine drain?

Without an air gap, a washing machine’s dirty water may back-flow. Having an air gap gives you peace of mind, knowing that your plumbing’s water pipes are protected from contaminants, but ultimately you may be required to have an air gap installed on your washing machine whether or not you want to.

What is the thing on my kitchen sink?

The chrome thing on your sink that looks like an upside-down juice glass is an air gap fitting for your dishwasher. … This is because air gap fittings prevent contaminates from the drain line from flowing back into your water supply and mixing with water that you may use for drinking, showering, or washing dishes.

Why does my dishwasher back up into my sink?

There are several common causes of a dishwasher backing up into a sink, including a block in the air gap, an obstruction in your dishwasher or a clogged garbage disposal. One of the most likely culprits is a simple sink clog.

Why is water coming out of my air gap?

In a properly functioning air gap, the dishwasher hose attaches to an input on the air gap, and the water is expelled out the end. … One of the most common reasons for an air gap clog is failure to remove the knockout plug from the input where the water line enters the garbage disposal.

Where does the water drain from a washing machine?

The drain hose is usually found on the back of the washer, along with two separate hoses for both cold and hot water supply. The drain hose carries wastewater out of the machine, while the hot and cold water supply hoses bring clean water in.

How tall should a washing machine standpipe be?

Laundry standpipes must be tall enough to extend past the washing machine’s overflow line—typically 30-36” in height, or 18”-30” above the trap.

How do you connect a drain hose to a standpipe washing machine?

Hook the drain hose over the lip of the standpipe or lip of the laundry sink. If connecting to a standpipe, don’t seal the hose to the pipe. Plumbing codes require that an air gap be left between the drain hose and standpipe to prevent siphoning water out of the washer. Don’t lay the hose on the floor.

Article first time published on

Where is the air gap on a dishwasher?

The air gap is a chrome plated cylinder located on the back of the sink where the faucet is located. Not all areas have plumbing codes that require an air gap, so you may not have one installed with your dishwasher drain. The air gap prevents water from a clogged drain from backing up into the dishwasher.

What is a high drain loop for a dishwasher?

Bosch: The high loop in the drain hose of your dishwasher is to keep water from settling in the hose if it were hanging down any lower or horizontally. This keeps the drain hose dried out and keeps any odors from backing up into the dishwasher.

What is the cap next to kitchen faucet?

A dishwasher air gap (sometimes called a “kitchen air gap” or “kitchen sink air gap”) is usually a small metal cylinder near your sink faucet with a few holes in it, designed to prevent dirty water from draining back into your dishwasher.

Why do kitchen sinks have two bowls?

The primary purpose of double-bowl sinks was to make dishwashing easier: one bowl for soapy water, the other bowl with clean water for rinsing. Nowadays, the double-bowl sink is rarely used for dishwashing. … You can use the garbage disposal on one side even if the other bowl is full of water or dirty dishes.

Why are there 3 valves under kitchen sink?

Three-way stop valves have an inlet and two outlets. These are often seen under kitchen sinks, where they are used to feed both the hot tap of the faucet as well as the dishwasher.

Do you need an air gap with a garbage disposal?

When there is a garbage disposal installed, the dishwasher drain line should run down from the air gap or high loop and connect to a side nipple on the disposal, where it connects with a hose clamp. Do not bypass the garbage disposal if it is present.

What to do if your dishwasher overflows with bubbles?

Slide out the bottom rack and liberally pour table salt on top of the suds to break down the foam. Run a quick rinse-only cycle and check for remaining suds. If there are still tons of suds pouring out of the dishwasher, add more salt and repeat the rinse cycle until the foam stops coming out of the machine.

Why is water coming out of dishwasher overflow?

When the dishwasher is discharging water, a lot of water floods out of the air gap. … When the gap leaks, it is normally due to a kink or blockage in the tube from the air gap to the tail piece (drain line) below the sink. The gap may need to be cleaned, or the drain line below the sink may be plugged.

Why is water not draining from my dishwasher?

It is quite common for a dishwasher to not drain because either the drain hose or the air gap (if the unit has one) is clogged up. Drain hose clogs commonly occur where the hose is attached to the main household drain line, or where the hose connects with the garbage disposer.

How do you plunge an air gap sink?

1. If your sink has an air gap. Block the water that would otherwise come through it while you’re plunging. …
2. Apply petroleum jelly to the plunger. Apply some petroleum jelly to the rim of the longer. …
3. Start plunging. Pump the plunger vigorously at least 10 to 12 times.

Can dishwasher air gap be under sink?

A dishwasher air gap must extend above the countertop and drain into the sink. An air gap installed under the counter could flood your under-sink area. If the drain were to become clogged, water would overflow out of the air gap and into the cabinet, damaging the floorboards.

Can you run garbage disposal while dishwasher is running?

Another urban legend floating around: You shouldn’t run your disposal while the dishwasher is operating. This is false, experts say. … Share this list of disposal mistakes with your household before the holiday crush. And keep those Cornish game hens away from the sink.

Can you run your dishwasher if your garbage disposal is broken?

If, for example, your disposal is broken, as in an electrical or mechanical problem, you can still run the dishwasher. It’s the garbage disposal drain system that can keep the dishwasher from draining properly.

Does washing machine standpipe need to be vertical?

The Standpipe The correct way to drain a washing machine is to install a standpipe. That is a vertical length of pipe that connects to a P-trap that, in turn, connects to the drain. The top of the standpipe must extend above the overflow level of the washing machine, and it must be properly vented.

Do washers need standpipe?

Most washing machines are plumbed directly into a fitting on the u-bend under the sink these days instead of being pushed into a standpipe (as above). Unless fitted properly though, some of the dirty smelly water poured down the sink can run down the drain hose into the washing machine.

How high should a washing machine outlet box be?

Once you’ve selected the right washing machine outlet box for your situation, it should be installed at a height where the flood level rim (or the top of the drainage outlet) is 32” to 34” above the finished floor.

Why are my clothes soaked after washing?

Loading Too Many Items. Overloading can lead to an imbalance that reduces the washer’s spin speed, leaving clothes too wet after spin cycle completes. If the washer leaves clothes soaked after a large load, remove some items, redistribute others and run another rinse and spin cycle.

Why is there water in the rubber seal of my washing machine?

If you have water remaining in the door seal (bellows) area of the washer, check under the door seal. Small items, dirt, and pet hair can get trapped in the bellows area. If there is a build-up, water can also build up and remain in that area. This area should be inspected and cleaned on a monthly basis.

Can I drain my washing machine water into the garden?

Household wastewater from washing machines, bathroom sinks, showers, and bathtubs is considered “gray” because it is only lightly soiled and poses a minimal health risk. As long as you’re only putting biodegradable products down the drain, graywater is perfectly safe for irrigating plants.

Why does my washing machine drain smell?

The most likely is bacteria growing in your washer because of built-up dirt, mildew and mold, lint, and/or soap. If you don’t regularly clean your washing machine, these things build up on, under, or inside the rubber seal and in the crevices of the drum.

Why does a washing drain hose need elevated?

This is to prevent water flowing out of the machine whilst filling or washing / rinsing and to prevent siphoning out. In some machines the INTERNAL hose from the pump (the pump is always mounted below the wash bowl) rises above the maximum water level so this should not be an issue.
