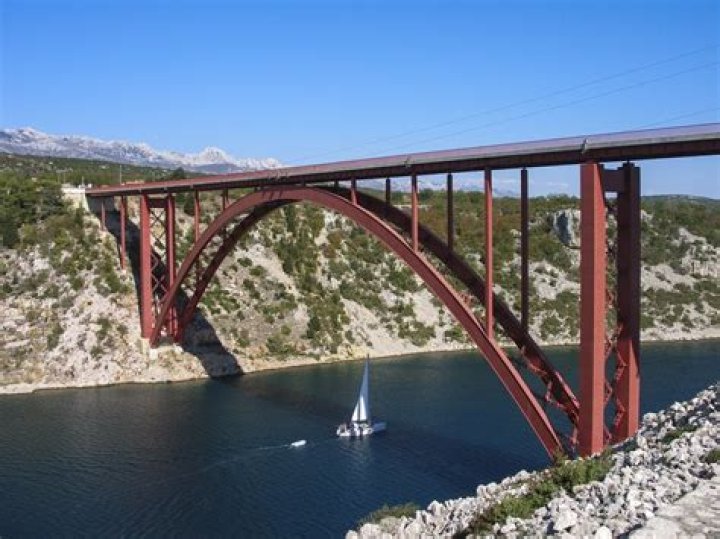

Why do bridges have arches

The arch allows the load to spread out instead of pushing straight down. The load spreads out to the abutments, which are supports on the ground at both ends, which keeps the ends of the arch bridge from breaking apart. The curved design and abutments allow the entire bridge to carry the load.

Why do bridges use arches?

After more than 2,000 years of architectural use, the arch continues to feature prominently in bridge designs and with good reason: Its semicircular structure elegantly distributes compression through its entire form and diverts weight onto its two abutments, the components of the bridge that directly take on pressure.

What are the advantages of arch bridges?

It distributes pressure effectively. …
It is a cheap design option. …
It offers better resistance. …
It is easier to maintain. …
It opens new transportation networks. …
It is a design option that is structurally sound. …
It must be perfect for it to be effective.

Why do some bridges have arches on top?

Bridges featuring arches were among the earliest large-scale engineering and construction projects. Arch bridges can span vast areas because they transform the forces affecting them into compressive stresses, which eliminates tensile stresses. (This is often referred to as “arch action.”)

Why do arches work?

Arches work by transferring the load through the arch to the supporting foundation via the abutments. As the load tries to straighten out the arch, the outward movement is resisted by the abutments and the downward force is transferred to the foundation.

Why are bridges not flat?

Road bridges that span over waterways are curved in order to have water drain. Especially in colder climates, where water on a bridge could freeze.

What are bridges with arches called?

An arch bridge is a bridge with abutments at each end shaped as a curved arch.

What are the pros and cons of a arch bridge?

They can provide higher levels of resistance. …
Their design is good when it comes to pressure. …
They can be made from virtually anything. …
They come with no distortion. …
They become stronger through time. …
They are structurally sound. …
They are economically advantageous in some way.

How did they build arch bridges?

How are arch bridges built? Building an arch bridge isn’t easy, since the structure is completely unstable until the two spans meet in the middle. For years, engineers used a technique called centering, in which a wooden form supported both spans until they locked together at the top.

What is 1 disadvantage to an arch bridge?

It can take up to triple the time to build this structure, which may not be available to some communities if a span is needed immediately. This disadvantage is also why the cost of building is so much higher with an arch-based design, since there is more labor involved in the project.

Article first time published on

Why do arch bridges fail?

Failure mechanism for a masonry arch bridge subject to symmetrical scouring. According to Heyman [60], [61], the masonry arch can undergo to failure mainly due to loss of equilibrium, whereas the collapse for ultimate axial load exceedance is a very rare occurrence.

What is an arch explain?

1 : a usually curved part of a structure that is over an opening and serves as a support (as for the wall above the opening) 2 : something that has a curved shape like an arch the arch of the foot.

What makes a bridge strong?

Suspension bridges work by using a force called tension. Tension is just pulling something tight. … Suspension bridges are strong because the force on the bridge gets spread out. The weight of the cars or trains or horses, whatever’s traveling across it, pulls on the cables, creating tension.

How do arch bridges carry load?

Instead of pushing straight down, the weight of an arch bridge is carried outward along the curve of the arch to the supports at each end. These supports, called the abutments, carry the load and keep the ends of the bridge from spreading out.

Who first built the arch bridge?

The 4th century BC Rhodes Footbridge rests on an early voussoir arch. Both the Etruscans and ancient Greeks knew about arches. But the Romans were the first to use arches for bridge construction. Roman arch bridges were usually semicircular.

What is the strongest bridge?

Even though the truss bridge design has been around for literally centuries it is widely regarded as the strongest type of bridge.

How do tied arch bridges work?

They work like arch bridges on one hand, because force of the load on the deck (thrust) is translated as tension to the curved top chord by vertical ties of the deck which try to flatten the arch and to push its tips outward into the abutments. Tips of the arch of this bridge are tied together by a bottom chord.

Is a longer bridge stronger?

The longer the bridge, the more it weighs, the more it carries, and the bigger the risk it’ll collapse. … Like a beam bridge, the top is in compression and the bottom in tension. The diagonal trusses are in tension and the vertical ones are in compression.

What is the weakest type of bridge?

We did further research after our experiment and learned that beam bridges are actually the weakest of all bridges and suspension bridges are the strongest.

Why are some bridges bumpy?

Bridge bumps are a result of differential settlement of bridge/approach slab and/or approach slab/pavement. The most common bumps are at the end of the bridges 4 Page 5 caused when the soil beneath the approach slab looses contact with it. It can also be caused due to strength deficient approach slabs.

Who invented arches?

Arches appeared as early as the 2nd millennium BC in Mesopotamian brick architecture, and their systematic use started with the ancient Romans, who were the first to apply the technique to a wide range of structures.

What are the weaknesses of arch bridge?

It offers a finite span length to use. …
It is a time-consuming project to complete. …
It is a structure which requires careful maintenance. …
It is a bridge option that cannot be built in some locations. …
It requires more side support to complete a successful span.

How are arches built?

Most arches consist of wedge-shaped blocks. The top center stone, called the keystone, is the last block to be inserted. During construction, arches are often supported by a wooden frame. When the frame is removed, both sides of the arch press against the keystone and thereby support the arch.

Is the arch bridge expensive?

5. They can be expensive. As mentioned above, arch bridges require lots of time and labor, which can translate to thousands of dollars. … Of course, the materials that are used to construct the bridge also contribute to the overall cost; the higher the quality of the materials, the more expensive the bridge would be.

Why do engineers build beam bridges?

The Future of Beam Bridges The beam bridge design is oriented towards the achievement of light, strong, and long-lasting materials like reformulated concrete with high performance characteristics, fiber reinforced composite materials, electro-chemical corrosion protection systems, and more precise study of materials.

Are curved bridges stronger?

An arch bridge is stronger than a beam bridge, simply because the beam has a weak point in the center where there is no vertical support while arches press the weight outward toward the support. … Arch bridges, meanwhile, have been used to cover very long distances, with up to 800 feet for a single arch.

How much weight can an arch support?

Two distinct types of arches have been recognized based on span, rise, and loading. The more common concrete masonry arch is the minor arch where maximum span is limited to about 6 feet (1.8 m) with a rise-to-span ratio not exceeding 0.15, and carrying loads up to 1500 lb per foot of span (21,891 N/m).

Why do arches form?

Natural arches commonly form where inland cliffs, coastal cliffs, fins or stacks are subject to erosion from the sea, rivers or weathering (subaerial processes). … The alcoves erode further into the formation eventually meeting underneath the harder caprock layer, thus creating an arch.

Why is the arch of the foot important?

The purpose of the arch aids in maintaining balance in the body, and provides a spring to the step. Arches are generally strong, and this may help the feet to adjust to a variety of surfaces that are walked on.

What is the rise of an arch?

rise (of an arch or a vault) The vertical distance between the spring line of an arch or vault and the keystone or boss.

What makes a bridge a good bridge?

The prototypical bridge is quite simple—two supports holding up a beam—yet the engineering problems that must be overcome even in this simple form are inherent in every bridge: the supports must be strong enough to hold the structure up, and the span between supports must be strong enough to carry the loads. …
