Why are seal bearings used

Sealed spherical roller bearings are able to handle high loads and large misalignments, with effective protection against dirt, and at the same time maintain lubrication. The sealing adds a number of attributes: The bearing is protected against external contamination. Lubricant is kept in place.

What are the three types of mounted bearings?

Pillow block bearings, flange bearing units, and take-up bearings units all consist of a housing section with a bearing mounted in it.

What is a double shielded bearing?

Double-shielded Bearing with Grease-metering Plate Facing Grease Reservoir. The housings serve as a lubricant reservoir and are filled with grease. By regulating the flow of grease into the bearing, the shields act to prevent excessive amounts from being forced into the bearing.

What is a labyrinth seal used for?

A labyrinth seal is a type of mechanical seal that provides a tortuous path to help prevent leakage. An example of such a seal is sometimes found within an axle’s bearing to help prevent the leakage of the oil lubricating the bearing.

How many types of mechanical seals are there?

The Three Types of Mechanical Seals.

What are bearing seals made of?

The standard bearing seal consists of nitrile/BUNA-N rubber bonded to a metal washer. The washer is made of SPCC cold rolled steel for chrome steel bearings or 304 stainless steel for stainless steel bearings. High temperature PTFE seals (up to 250°C) or Viton seals (up to 230°C) are available on some sizes.

What are the types of oil seals?

Aflas® (TFE/P) …
Carboxylated Nitrile (XNBR) …
Viton® (Fluoropolymer FKM) …
Fluorinated Ethylene – Propylene (FEP) …
Fluorosilicone (FVMQ) …
Hydrogenated Nitrile (HNBR) or Highly Saturated Nitrile (HSN) …
Nitrile (NBR) Buna-N & Low-Temp. …
Polyacrylate (ACM)

What is sealed ball bearing?

They are designed with balls rolling between an inner and outer raceway. They arecommonly used in pumps, gear motors and electric motors. Double Seal Bearings are factory lubricated with oil or grease and … In Stock.

What is a non-contact seal on a bearing?

With a non-contact seal, similar to a shield, there is no contact to the bearing inner ring. A contact seal is designed to contact the bearing inner ring with the lip of the seal,” he said. Both non-contact seals and shields allow reduced rotational torque as there is no contact to the inner ring.

Why are oil seals used?

Oil seals are used to protect shafts and bearings from ingress of dirt and foreign matter and egress of oil or grease. An oil seal generally consists of an outer circular metal part and an inner flexible member that does the actual sealing and is bonded to the metal part by chemical adhesive agents.

Article first time published on

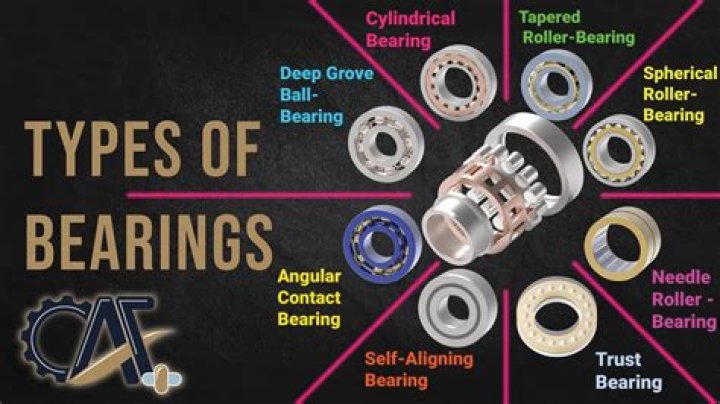

What is bearings and its types?

Bearings are mechanical assemblies that consist of rolling elements and usually inner and outer races which are used for rotating or linear shaft applications, and there are several different types of bearings, including ball and roller bearings, linear bearings, as well as mounted versions that may use either rolling …

What are the main types of bearings?

Plain Bearings. The most basic type, plain bearings consist of a flat surface without any balls or rollers. …
Ball Bearings. …
Roller Bearings. …
Fluid Bearings. …
Magnetic Bearings.

How many types of bearing are there?

There are many different types of bearings, each used for specific purposes and designed to carry specific types of loads, radial or thrust. Here, we’ll look at the 6 most popular types: plain bearings, rolling element bearings, jewel bearings, fluid bearings, magnetic bearings, and flexure bearings.

What is a carbon seal?

A carbon seal is used to prevent the gas from leaking through the space between a rotating and a static device and thus reducing the efficiency (Figure 82). s: size of the gap between rotor and carbon ring. …

What is a taconite seal?

The SKF Taconite Seal consists of two rings (one stationary and one rotating) which form a very narrow labyrinth between the two rings. … The V-ring seal blocks contaminants from entering the bearing housing and aids the purging of contamination and old grease when the seal is re-greased.

What is a seal in engineering?

A mechanical seal is a device that helps join systems or mechanisms together by preventing leakage (e.g. in a pumping system), containing pressure, or excluding contamination. … A stationary seal may also be referred to as ‘packing’.

What is better sealed or shielded bearings?

Seals can be either contact or non-contact types. The former offer better protection, but with reduced speed capabilities, whereas the latter have higher speed capabilities and levels of protection superior to shields. Shields have no contact with the inner ring, of the bearing, hence their low torque qualities.

Do sealed bearings need seals?

The need to change to sealed bearings was to reduce oil leakage through external seals. … With a sealed bearing, the bearing is lubricated with grease and the bearing seals give extra protection.

What is the difference between sealed and non sealed bearings?

Unsealed bearings that require lubrication also allow contaminants to be introduced. Because sealed bearings do not require lubrication, they tend to be more closed off, offering no route for contaminants to enter in the first place. A failure in the seal may result in the failure of the bearing.

What are the types of mechanical seals?

Seals come in various forms which include single springs pump seals, compressor seals, multi-spring seal designs, metal bellows seals, mixer and agitators seals, and single and double cartridge seals.

What are the two main parts of a mechanical seal?

A stationary ring (usually the stationary seat) arranged in the stationary part (casing) Secondary seal (usually O-ring) between these parts.

What are the three types of mechanical seals?

Gaskets.
O-rings.
Bellow seals.
Cartridge seals.
Labyrinth seals.
Radial shaft seals.
Axial shaft seals.

What are the types and applications of oil seals?

Oil seals are often called grease, fluid, or dirt seals. These seals close spaces between stationary and moving components in mechanical equipment. Oil seals are designed to prevent the escape of lubricant. They also block contaminants from entering machinery.

How are hydraulic seals classified?

Hydraulic and Pneumatic Seals are moulded according to working temperature, cylinder speed, cylinder operating pressure, working application, and medium. … Dynamic Hydraulic Seals are Rod Seals and Piston Seals. Rod Seals are exposed to the motion on their inner diameter along the rod or shaft of a hydraulic cylinder.

Where are cassette seals used?

Cassette seals are highly rigid and therefore employed for very heavy-duty use and in dirty environments, like commercial vehicles, materials handling equipment, as well as agricultural, forestry and construction machinery.

What is a radial lip seal primarily used for?

Lip seals serve to protect lubricated moving parts and they do this by keeping the lubricant inside the bearing, and keeping contamination from dirt or other liquids out. The term lip seal is generally used to refer to what is correctly known as rotary shaft seals or oil seals or radial shaft seals.

How sealed are sealed bearings?

Endurance. A sealed bearing is self-enclosed; not only does the seal lock out debris, but it also keeps lubrication trapped inside. Open face bearings require a lot more maintenance if they are going to last a long time.

What is double lip oil seal?

Double lip oil seals feature two lips for better fluid separation or contamination exclusion. Many oil seals are spring loaded to provide constant, a uniform load of the lip on the shaft for the life of the seal. The spring load also provides a constant load on both lips of the double lip seal.

What does VV mean on a bearing?

VV : Double non-contact seals. DW : Single light-contact seal. DDW : Double light-contact seals. DU : Single contact seal.

What is a grease seal?

A grease seal, often called an oil or dirt seal, is a type of seal utilized to retain grease in a case or housing. Grease seals close spaces between stationary and moving components in mechanical equipment, helping prevent lubricant escape.

What is felt seal?

Felt seals are mainly used as oil or grease seals for retaining lubrication and at the same time preventing dirt or dust entering the bearing. Felt has long been used for sealing duties because of numerous favorable properties such as wicking and oil absorption properties, fine filtering and resilience.
