Where is die casting used

Die casting is mainly used for large series production, i.e. for many components of the same type to be cast. Despite the high pressure used during the manufacturing process, a high casting quality is achieved.

What is die casting good for?

Die casting provides complex shapes within closer tolerances than many other mass production processes. Die Castings are produced at high rates of production. Little or no machining is required. Die casting provides parts which are durable, dimensionally stable, and have the feel and appearance of quality.

What is die cast metal made of?

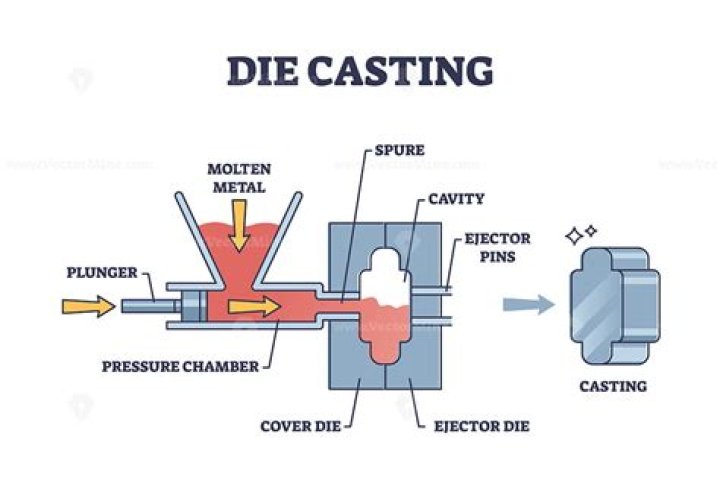

Die casting is a metal casting process that involves feeding molten nonferrous alloys into dies under high pressure and at high speed to rapidly create molded products. The main materials used in die casting are alloys of aluminum, magnesium and zinc.

What metals are used in die casting?

Zinc, aluminum, and magnesium are the three main die casting alloys. They are normally non-ferrous and their mechanical properties vary greatly to fit almost every type of application a manufacturer may need. Not only can die cast alloys withstand high operating temperatures, but they are also fully recyclable.

What is die casting pros and cons?

• Not applicable for high melting point metals and alloys (eg. steels)
• Large parts can not be cast.
• High die cost.
• Too long lead time.
• Some gases my be entrapped in form of porosity.

How does die casting affect material properties?

During Die Casting Process, the temperature can affect mechanical properties to a certain extent. It is crucial as it affects both metal flow and casting quality. … In general, as temperature increases, both tensile and yield strength decrease in most die casting alloys.

What is the advantage and disadvantage of die casting?

Dimensional accuracy and stability – Die casting produces parts that are durable and dimensionally stable, while maintaining close tolerances. They are also heat resistant. Strength and weight – Die cast parts are stronger than plastic injection moldings having the same dimensions.

Can brass be die casted?

The alloys you will typically choose from when it comes to die casting are aluminum, magnesium and zinc. There are other metal alloys you can use for die casting as well, like copper, brass, tin and lead, though these alloys are much less-common, specialty materials in the die casting industry.

Does copper and zinc make brass?

Brass is mainly an alloy that consists of copper with zinc added. Brasses can have varying amounts of zinc or other elements added. These varying mixtures produce a wide range of properties and variation in color.

Which of the given materials is commonly used in the preparation of die casting?

Aluminum, zinc, and magnesium are the most commonly used die casting alloys.

Article first time published on

What is flash in die casting?

Flash can be described as any unwanted, excess metal which comes out of the die attached to the cavity or runner. Typically it forms a thin sheet of metal at the parting faces.

Can stainless steel be die cast?

Die casting is suited to materials such as tin, lead, zinc, aluminium, magnesium to copper alloys and even iron alloys such as stainless steel.

Which of the following are the most suitable material for die casting?

• A. Iron.
• Copper.
• Steel.
• Nickel.

Is Aluminium casting expensive?

It’s relatively inexpensive in terms of materials and process. It’s suited to small and large components. It can be used for ferrous and non-ferrous metals. It reduces the amount of expensive, labour-intensive tooling required.

What are the common defects of casting?

In die casting the most common defects are misruns and cold shuts. These defects can be caused by cold dies, low metal temperature, dirty metal, lack of venting, or too much lubricant. Other possible defects are gas porosity, shrinkage porosity, hot tears, and flow marks.

What is the difference between sand casting and die casting?

The biggest and most obvious difference between the die and sand casting process is the materials used to form the molds. As we reviewed above, die casting uses a metal mold, while sand casting uses a mold made out of sand.

Which is a limitation of die casting?

The main disadvantage to die casting is the very high capital cost. Both the casting equipment required and the dies and related components are very costly, as compared to most other casting processes. Therefore, to make die casting an economic process, a large production volume is needed.

What are the types of die casting?

• Low-pressure die casting.
• Vacuum die casting.
• Squeeze die casting.
• Semi-solid die casting.

What are the advantages of die casting over sand casting?

Die casting provides a greater improved surface finish compared to sand casting. Thin sections of complex shapes can be produced efficiently using the die casting process. The more true shape can be created with close tolerance in die casting. Casting shapes produced by die casting are usually very less defective.

Why is die casting suitable for mass produced products?

Die casting It can produce large numbers of complex pieces and so is ideal for mass production. Because die casting can have expensive set-up costs, large volumes of goods need to be produce to make if cost effective. An example of goods produced via die casting would be component parts for engines.

Which metal alloys produce parts of aircraft by die casting?

Die castings used for airplane parts are usually made of different aluminum alloys. The two most common die casting alloys for aircraft parts are A380 and A413. For example, Al 7075 is commonly used for making frames because of its toughness.

What is diecast aluminum?

Die cast aluminum is a kind of aluminum wherein metals are molted under high pressure in the mold cavities. In the die casting process, the metals are hardened and the desired shapes are produced. … This process is essential in creating metal parts with specified details and quality.

What is pure brass?

The composition of brass, generally 66% copper and 34% zinc, makes it a favorable substitute for copper based jewelry, as it exhibits greater resistance to corrosion.

What does copper and tin make?

bronze, alloy traditionally composed of copper and tin.

What is solder metal made of?

Solder is a metal alloy usually made of tin and lead which is melted using a hot iron. The iron is heated to temperatures above 600 degrees fahrenheit which then cools to create a strong electrical bond.

Can iron be die casted?

Ferrous metals such as carbon steel, alloy steel, and stainless steel all can rust because they contain iron. It’s possible to die cast these metals, but due to their propensity to rust, it’s quite uncommon. Non-ferrous metals, such as aluminum and copper, contain only trace amounts of iron, at most.

Can steel casted?

Steel casting is a specialized form of casting involving various types of steel. Steel castings are used when cast irons cannot deliver enough strength or shock resistance. … Steel castings are categorized into two general groups: carbon steels and alloy steels.

What is die cast stainless steel?

High pressure die casting is the process that molten metal is poured into a steel mould by high pressure and cooling the molten metal solidifies to form a solid casting. … When the wax is melted, the molten stainless steel is poured in to the mold to create a replica of the original wax pattern.

Which of the following materials is mostly used as a die material in gravity die casting?

Explanation: In gravity die casting, fine-grained grey cast iron is the most generally used die material. Sometimes alloy cast iron, alloy steels (H11 and H14) and C20 steel are also used as die material for very large volumes and large parts.

Why non-ferrous metals are used in die casting?

Non-ferrous metals are typically used for structural applications because of desirable properties such as low density, higher strength to density ratio, higher conductivity, non-magnetic property or resistance to corrosion, etc.

What is sprue in sand casting?

Casting. In casting, a sprue is the passage through which a molten material is introduced into a mold, and the term also refers to the excess material which solidifies in the sprue passage.
