What size is my Morse taper

To determine the Morse Taper (abbreviated as MT) size of your lathe’s head stock spindle or tail stock ram, you can measure the shank diameter of an existing drive center or tail center you may have that fits.

What size is a #1 Morse taper?

AC- length1 morse taper0.4750″ 12.065mm2.13″ 54.10mm2 morse taper0.7000″ 17.780mm2.56″ 65.02mm3 morse taper0.9380″ 23.825mm3.19″ 81.06mm4 morse taper1.2310″ 31.267mm4.06″ 103.12mm

Is standard for Morse taper?

TypePart NumberWeightCarbide Tipped Half471044.08

What is the difference between #1 and #2 Morse taper?

The difference between a #1 Morse taper and a #2 is basically the length and the “section” of the taper. Think of a long, tapered rod that starts at a point and gets larger in diameter the farther down the rod you go. You could cut a section out of any place along that rod and have the same taper.

What are the standard tapers?

There are several standards for self-holding tapers, but the American National, Morse, and the Brown & Sharpe are the standards most widely used by American manufacturers.

What is the smallest Morse taper?

TaperLarge EndTaper/ Foot#00.3561.6246#10.4750.5986#20.7000.5994#30.9380.6024

What size is MT5?

ParameterValueUnitK1 (Morse)MT5D63mmd44,399mmL335mm

What size is a MT2 taper?

This is easily determined by measuring the inside diameter of the spindle. Dimensions may vary slightly according to the depth of the taper, but should be near to the size stated. MT1 (12mm approx.) MT2 (18mm approx.)

What is the ratio of Morse taper?

Morse Taper is a self holding type taper and it is available in a 8 size from MT 0 to MT 7. The taper ratio of morse taper is found 1:10 and its included angle available in 3° or 5/8 inch/foot. Morse taper mostly used in lathe machine ds nose spindle, drill shank, arbor, etc.

What is a 1/10 taper?

“The taper is the inclusive angle. Tapering of the propeller shaft. All propellers in stock at TechProMax have the standard taper 1:10. This means that the difference between the largest and the smallest diameter of the tapered hole represents 10% of the length of the propeller’s boss (D-d=0.1 x L).”

Article first time published on

What is the taper size of bs10 Brown and Sharpe taper?

Brown & Sharpe Tapers were introduced by the Brown & Sharpe Manufacturing Company and have a nominal taper-per-foot of 1/2 inch. In reality, the tapers are not exact to the specification, but range in size from . 49973 to .

What is a Morse taper sleeve?

Morse Taper drill sleeves are used as reduction or sizing up of Morse taper tooling. Most common Morse taper tooling is taper shank drills, also Morse taper reamers and other HSS cutting tools. The Morse taper drill sleeves are hardened steel, internally and externally ground.

What is a Morse taper shank?

A Morse Taper Shank drill incorporates a standardized taper shank design that is used in tapered drill chucks. … Often this is abbreviated as MT followed by a digit, for example a Morse taper number 4 would be MT4. The MT2 taper is the size most often found in drill presses up to 1/2” capacity.

What is taper shape?

As a noun, taper refers to a shape that narrows at one end, and it’s also another word for a candle that is smaller at one end than the other. “Narrow candle” is the original meaning of the word, and it seems to derive from the Latin papyrus, which was once used to make candle wicks.

What is Morse taper in lathe?

A Morse Taper is a tapered spindle used on lathes and drill presses to mount tooling. Morse Tapers on the headstock of your lathe have a hollow housing that is designed to fit a male ended arbor. When spinning, the arbor is forced farther into the housing, increasing the surface pressure between the two metal parts.

How do Morse tapers work?

The principle of the Morse taper is that of the cone in the cone. The trunnion (the male portion) and the bore (the female portion) are both uniformly tapered. … The conical femoral taper compresses the walls in the bore as it expands. Thus, the stresses inside the materials keep both components fixed together.

What is a Jarno taper?

Jarno tapers have a of taper of about 1:20 on diameter, or . 600″ on diameter per foot, or . 050″ on diameter per inch. The large diameter size can be obtained by dividing by 8, the small end is always the taper size divided by 10 and the length is the taper size divided by 2.

What is taper length?

Taper Length Drills are designed for general purpose drilling where a length longer than Jobber Length is required. They come in a wide range of sizes, finishes and materials such as High Speed Steel, Cobalt and Carbide Tipped.

What is a 1/12 taper?

1 in 12 taper is 1″ inch to the foot and the angle center line is 2 degrees 23′ minutes 9″ seconds.

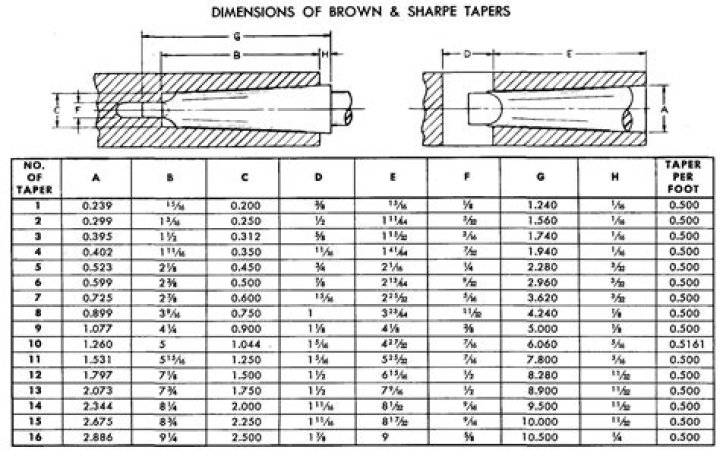

What is Brown and Sharpe taper?

Brown & Sharpe tapers, standardized by the company of the same name, are an alternative to the more-commonly seen Morse taper. Like the Morse, these have a series of sizes, from 1 to 18, with 7, 9 and 11 being the most common. Actual taper on these lies within a narrow range close to . 500 inches per foot.

What is an MT2 Arbor?

MT2 Drill Chuck Arbors with Drawbar Thread. Morse Taper drill chuck arbors for use with Jacobs and DIN taper drill chucks. Designed to be used on machines fitted with a drawbar.

What is a 1/6 taper?

The expression “1 in 6” taper means that in inches, the part increases diameter by 1″ every 6″ along the centreline. In other words-if the part is 6″ long and is 1″ diameter on the small end, it will be 2″ diameter on the large end.

What is a 1/8 taper?

1:8 taper mean the shaft diameter decreases by 1/8th the taper length. Example: Shaft diameter = 2.00. Taper length =3.5. Shaft has a 1:8 taper.

Is a taper the same as a fade?

A taper is when hair gradually changes from one length to another. A fade is a shorter taper that blends or fades into the skin—hence the name. … A fade is the style for you. Go for a blended hairstyle if you want to leave some length on the top, sides, and back.

What is metric taper?

A taper pin is a fastener used in mechanical engineering. They are steel rods with one end having a slightly larger diameter than the other. … Metric taper reamers are designated by the small diameter. For example, a 2 mm taper pin reamer has a 1.9 mm small end (2 mm nominal size) and a 2.86 mm large end.

What does a Chuck do?

A chuck is a specialized type of clamp used to hold an object with radial symmetry, especially a cylinder. In a drill, a mill and a transmission, a chuck holds the rotating tool; in a lathe, it holds the rotating workpiece. Chucks commonly use jaws to hold the tool or workpiece.
