What size is a W12x40 beam

SIZELBS/FTDEPTHW12x303012.34W12x353512.5W12x404011.94W12x454512.06

What do the numbers mean on a steel beam?

The nomenclature for steel shapes follows two standards: For wide flange, bearing pile, S-shapes, channels, and tees: the letter indicates the shape, the first number indicates the nominal height, and the second number indicates the weight per 1 foot of length.

What is a W8x10?

W8x10 structural beam has a 7-7/8″ x 3/16″ thick web & 4″ x 3/16″ thick flange. This beam has many uses to include rafter, column, header, etc.

How do you read steel beam sizes?

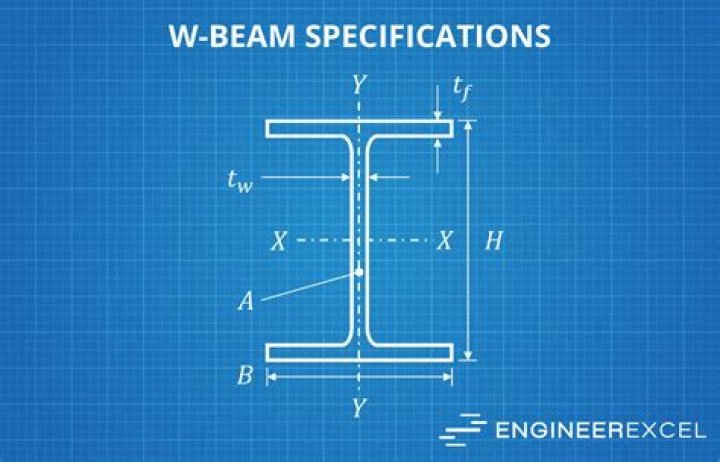

Beam Terms Beam Depth: The distance from the top and bottom surface of the steel (see “A” in diagram). Flange Width: The top and bottom flat horizontal sections width (“B”). Flange Thickness: The thickness of the top and bottom flat horizontal sections (“C”).

How wide is a W8 beam?

Size & Weight Per FootB Flange Width InchesW6 x 256.080W8 x 103.940W8 x 134.000W8 x 154.015

What is stronger H-beam or I-beam?

H-beam: An H-beam has a thicker center web, which means it is often stronger. I-beam: An I-beam often has a thinner center web, which means it is often not able to take as much force as an h-beam.

How strong is A36 steel?

A36 steel can have ultimate tensile strengths from 58,000 to 79,800 psi.

What is UB in structural steel?

UC – universal column or UB – universal beam. Universal columns are the most often used sections for structural steel purposes. Unlike a universal beam, the UC’s width is roughly equal to their depth.

What is the strongest beam shape?

I-Beam is the quintessential beam profile. The design is super strong in the vertical direction, yet has a uniform and equal response to other forces. It has the best strength to weight ratio (vertical) making it a great DIY beam profile — for Cranes, and for the main beams of big and/or long trailers.

What does W mean in steel beams?

Lets start with the most widely used beam for structural steel. W-Beams, so called because they are technically known as Wide-Flange Beams, come in a wide variety of size from 4” tall to 44” tall. … per foot of beam (ex. 8×31 is 8” tall with a load capacity of 31 pounds per foot).
