What PSI is PVC rated for

Most consumer air compressors compress air to 125-175 psi, which does not sound like much. Most smaller sizes of PVC pipe are rated for between 300-600 psi, but that is only if the pipes are new and the system is perfectly sealed.

Can PVC withstand high pressure?

PVC pipe often gets a bad rap because it cannot handle as much pressure as various types of metal pipe. However, smaller sizes of PVC pipe, especially schedule 80, can handle plenty of pressure for most home and business uses. Unlike tensile strength, burst pressure decreases as pipe size increases.

What type of PVC can be pressurized?

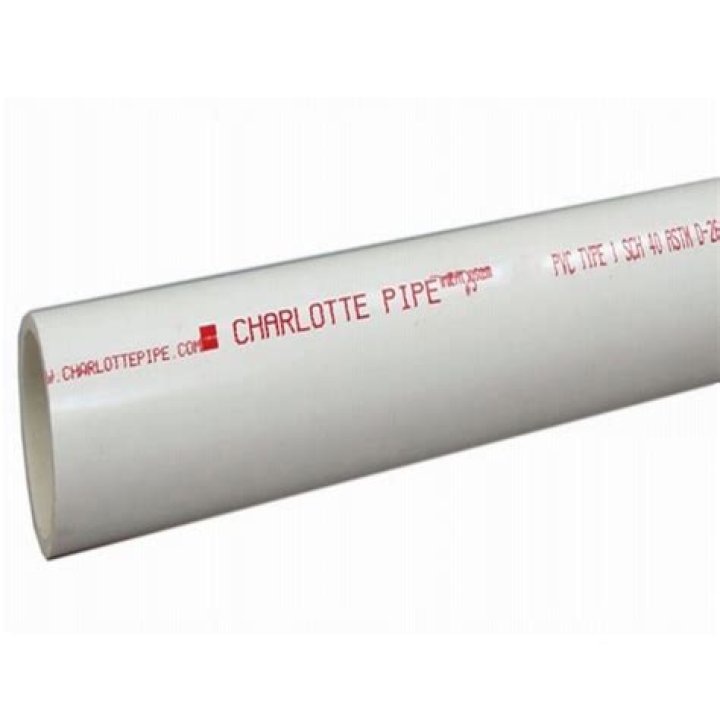

Schedule 40 PVC pipe is strong, rigid, and can handle pressure applications.

What PSI is Schedule 40 PVC rated for?

This makes it ideal for industrial and chemical applications. To give you an idea of the size difference, 1” schedule 40 PVC pipe has a . 133” minimum wall and 450 PSI, while schedule 80 has a . 179” minimum wall and 630 PSI.

What is the pressure rating of Schedule 20 PVC pipe?

Schedule 20 PVC pipe is rated up to 200 psi which is WAY more than you’ll need for your tank.

What pressure is SCH 80 pipe good for?

Larger Schedule 80 pipe that is used for internal installation ranges from 2 inches to 3 1/2 inches in diameter. A 2-inch pipe is rated for 920 PSI of continuous service pressure and will burst at 7,340 PSI. Pipes 3 1/2 inches in diameter have a service rating of 990 PSI and a burst pressure of 7,950 PSI.

What PSI can schedule 80 PVC handle?

Trade SizePart NumberPressure Rating (psi)1/258050208503/45807520690158100206301-1/45812520520

What is the difference between PVC pipe and CPVC pipe?

What are the differences between CPVC and PVC? The main difference between CPVC and PVC is the range of temperatures each is capable of withstanding. CPVC can handle temperatures up to 200° Fahrenheit, while PVC peaks at 140° Fahrenheit.

What is the pressure rating for CPVC pipe?

CPVC piping which is suitable for hot and cold water distribution has a 400 psi pressure rating at room temperature, and a 100 psi pressure rating at 180°F. CPVC materials are resistant to many everyday household chemicals.

What is the difference between Schedule 20 and Schedule 40 PVC pipe?

SCHEDULE 20 PVC PIPE The wall of the pipe is much lighter than that of Schedule 40, and must only be used in situations where vehicles, traffic, or any other type of equipment crossing the area will not be a factor.

Article first time published on

Can Schedule 40 PVC be used for electrical conduit?

Schedule 40 PVC conduit is permitted for exposed locations where not subject to physical damage. Schedule 80 PVC conduit is identified for use in areas subject to physical damage.

What's the difference between Schedule 40 PVC and regular PVC?

Schedule 40 PVC is usually white in color and has thinner walls, thus can handle less pressure than it’s counterpart. Schedule 40 PVC pipe works best for low water pressure applications. By contrast, Schedule 80 PVC is usually gray in color and has thicker walls; therefore, it can handle higher water pressures.

What is the difference between white PVC and GREY PVC?

Grey PVC is used as electrical conduit and is better suited for sunlight resistance. The fittings for this type of pipe are made to pull wires into and not intended for containing pressured fluids. White is for plumbing applications. Both use the same solvents and glues.

What pressure is schedule 40 black pipe?

Pipe Dimension (inches)Standard – STD – Sch. 40Bursting Pressure (psi)Working Pressure (psi)3/4861010801809010101 1/46745840

Can I use SharkBite on PVC?

SharkBite PEX fittings make it easy to transition between pipe types during repairs. Fast, efficient and reliable, our transition fittings are compatible with Polybutylene, PEX, PVC, CPVC, PE-RT and SDR-9 HDPE, and are approved for behind-the-wall installation as well as burial.

What is Schedule 40 PVC pipe?

PVC Schedule 40 pipe is used for drainage and lower pressure water flow applications. Schedule 40 PVC pipe can handle up to 140 degrees F in temperature. Pipe lengths come in standard 10′ or 20′ sections. PVC schedule 40 pipe is available in plain end or belled end that do not require coupling for installation.

How long do you wait after gluing PVC?

After joining the pipes you must hold them together for 30 seconds until the plastic hardens or they can slip apart. It takes another 15 minutes for the joint to harden to a point at which it can withstand water pressure and two hours to fully cure.

Can I use PVC for air compressor lines?

PVC Pipe. The use of PVC pipe is common but not recommended for use with compressed air. … However, as with many plastics, PVC gets brittle over time and can crack, break, or even shatter. The presence of air compressor oils in the line and heat from the compressed air accelerates the degradation of PVC.

What is the difference between PVC UPVC and CPVC?

PVC is a material which is widely used in the production of pipelines. UPVC and CPVC are two types of PVC. The main difference between UPVC and CPVC is that UPVC is made without adding plasticizers whereas CPVC is made by adding plasticizers and undergoing the process of chlorination.

What SDR means in pipes?

The standard dimension ratio (SDR)—also referred to as the standard dimensional ratio—is a measurement and method often used by pipe manufacturers to rate the working pressure capacity of a pipe. It is calculated by determining the relationship of the pipe’s outside diameter to its minimum wall thickness.

Is it OK to use PVC pipe for hot water?

The short answer: No. Explanation: PVC is a thermoplastic, and therefore, at some point it will begin to degrade and break down as it’s heated up. It just so happens that Schedule 40 PVC’s maximum operating temperature is 140 degrees Fahrenheit, around the same temperature that hot water gets to in most homes.

Can I use PVC instead of CPVC?

We recommend the use of PVC for recreational use/building, cold water systems, vent systems, and drainage systems. CPVC is recommended for applications where the maximum temperature will exceed 140 degrees Fahrenheit, but stay under CPVC’s max rating of 200 degrees Fahrenheit.

Is Schedule 40 PVC safe for drinking water?

Most schedule 40 PVC found in homes and offices is white pipe with a National Sanitation Foundation (NSF) rating for potable water. Both materials are considered safe for potable water. …

Which is stronger schedule 40 or SDR 35?

Here is where the flexibility of SDR outweighs the strength of Schedule 40. SDR will bend with the shifting and settling. Having a higher flex tolerance means less breaks from the soil conditions. Schedule 40 is so rigid that in the event the ground shifts or settles this pipe has no give.

What is 200 psi PVC pipe used for?

PVC Class 200, 160 and 125 pressure pipe are used in rural water systems, agricultural and turf irrigation and as sewer force mains. Class 200, 160 and 125 pipe conform to steel pipe O.D.’s. The pressure rating of the pipe—200 psi, 160 psi or 125 psi—indicates the maximum allowable sustained pressure per ASTM D2241.

What is Schedule 10 PVC pipe used for?

Scheule 10 PVC piping exists, but due to its flimsy nature is used mostly for building drain or ventilation lines.

Is it OK to run Romex in conduit?

Running Romex in a Conduit When using any non metallic wire outdoor, including Romex, it is a good idea to run it through a conduit. Yes, they can be used outdoors, it is better to be safe than sorry. We recommend using a conduit when running the wire underground.

What is the difference between Schedule 40 and Schedule 80 electrical PVC?

Schedule 40 PVC conduit is cheaper and has a larger inside diameter, so it’s easier to pull wires through it. The plastic on Schedule 80 is thicker, but the conduit has the same outside diameter as 40, so the inside diameter is smaller.

Can I use white PVC pipe for electrical conduit?

The most noticeable difference between regular PVC and electrical PVC is the color of the pipes. PVC pipe that is used for plumbing is usually white while electrical conduit PVC is usually gray. … Therefore, Schedule 80 pipes should not be used as an electrical conduit.

What pressure can schedule 40 pipe hold?

Trade SizePart NumberPressure Rating (psi)10-foot1/25405010P6003/45407510P48015410010P450

Can I glue Schedule 40 PVC to schedule 80?

Yes they can be glued together. The outside diameters are the same for each pipe but the inside diameter is smaller on sch 80 pipe. Sch 80 pipe is capable of handling more pressure, hence the thicker wall. I use sch 80 for its grey apperance and thats it, sch 40 is fine for all of our applications.
