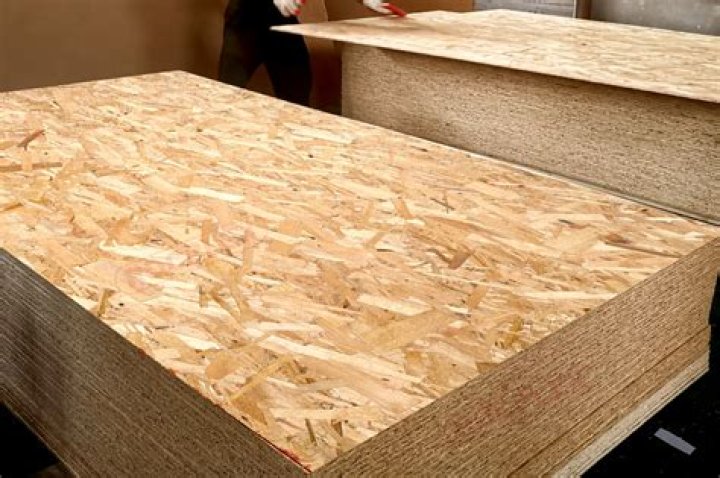

What kind of board is OSB

Oriented strand board (OSB) is a type of engineered wood similar to particle board, formed by adding adhesives and then compressing layers of wood strands (flakes) in specific orientations. It was invented by Armin Elmendorf in California in 1963.

Is OSB the same as MDF?

OSB is considered to be stronger than MDF. OSB is suitable for structural projects and withstands water, moisture, and weather conditions better than MDF. However, MDF is more versatile and easy to work with than OSB and preferred for projects requiring a smooth finish.

What is OSB board made of?

What are they, and how are they made? OSB is manufactured from heat-cured adhesives and rectangular- shaped wood strands that are arranged in cross-oriented layers. Produced in large, continuous mats, OSB is a solid-panel product of consistent quality with few voids or gaps.

What is the difference between fiberboard and plywood?

Plywood is made from several individual layers glued together perpendicular to each other to provide strength. Fiberboard is made from individual random chunks of wood glued together under pressure without grain patterns. … When structural strength is needed, plywood should be used.

What is stronger OSB or plywood?

OSB and plywood offer similar (and sufficient) performance in terms of strength and functionality, though plywood is about 7% stronger. … Plywood will absorb moisture quicker than OSB, but consequently it will also dry quicker.

Which is stronger particle board or OSB?

Because of the three-layer crisscross structure, OSB board is more uniform than the general particle board, has good toughness, strong nail holding power, and is not easy to expand due to moisture.

Is it better to use OSB or plywood for subfloor?

The National Tile Contractors Association and the Resilient Floor Covering Institute both recommend plywood for subflooring and underlayment, because it doesn’t have the risk of swollen edges that OSB does. Plywood also has a slight advantage in stiffness, which means that subflooring panels need not be quite as thick.

What is an alternative to OSB?

In addition to OSB, builders can choose plywood, fiberboard, rigid foam, diagonal boards, and fiberglass-faced gypsum panels.

Is OSB a good sound barrier?

What Makes OSB a Good Soundproofing Material? Thanks to its high density and mass, OSB can block sound to reduce its transmission from one room to another, especially when combined with other materials such as glass wool. But its ability to block sound is admirable; its sound absorption is what really stands out.

What is the difference between OSB and particle board?

Particle board comes in different densities, but still softer compared to OSB boards. The most popular types are HDF and MDF – High/Medium Density Fiberboard, with fewer chips and more dust. Particle board and fiber board are more uniform in appearance, and some are painted by the manufacturer for moisture resistance.

Article first time published on

Is fiberboard the same as particle board?

Particleboard is a type of fiberboard, but it is comprised of bigger pieces of wood than medium-density fiberboard and hardboard. Particleboard is less expensive, denser and more uniform than the usual wood and plywood and is substituted for them when appearance and durability are less important than cost.

Is fiberboard the same as Masonite?

Masonite is a type of hardboard, also referred to as HDF or high-density fiberboard, a type of fiberboard. As opposed to MDF or medium-density fiberboard.

Is OSB safe to use indoors?

OSB can be used on interior walls since it is strong, durable, and provides structural support. The wood strands add a chic decorative finish if you are wanting the walls to stand out. Leave them unpainted for a raw decorative element or seal and paint them for stylish textured walls.

Why is OSB so expensive right now?

Structural Framework And Support One of the reasons OSB is so expensive is that it’s used in building construction. … Because homes use a lot of OSB, the demand for it is high. When supply is low, the price for OSB increases. OSB is expensive because home construction requires a lot of it.

What is OSB board good for?

OSB is now used for about 70 percent of all floor, wall and roof sheathing in North America. Building codes, the Engineered Wood Association, architects and most builders rate plywood and oriented strand board (OBS sheathing) equal in strength and durability.

Which is stronger OSB or CDX?

CDX plywood is not good moisture resistant. But it is stronger and more durable than OSB. It is used for roof sheathing, construction of crates and boxes, garage shelves, sub-flooring, and low humidity. Due to the cross structure of CDX, it can easily withstand heavyweight.

Can I use OSB for subfloor?

OSB subfloor serves as a base under the finish floor (hardwood, engineered wood, vinyl tile, etc.) … Most local codes allow OSB to be used for subflooring. It’s always best to check with your local permitting office before using OSB for your subfloor. One advantage that OSB has over plywood is its larger formatting.

Which is stronger 1/2 inch plywood or 1/2 inch OSB?

Osb is stronger than plywood in shear. Shear values, through its thickness, are about 2 times greater than plywood. This is one of the reasons osb is used for webs of wooden I-joists. However, nail-holding ability controls performance in shear wall applications.

What is the best material to use for a subfloor?

Plywood is considered the most popular material used for subflooring, it has been used since the 1950s and remains one of the top choices for contractors. Standard plywood works perfectly fine as a subflooring material, but the best option is ¾” tongue-and-groove plywood subflooring.

Can you install vinyl plank on OSB?

You can put tile or sheet vinyl flooring over OSB so long as you ensure that the surface of the OSB is completely smooth without any major knicks, knots, or bulging staples. With vinyl being as thin as it is, it must have a smooth base so that the appearance of the vinyl remains very smooth.

What is better for roofing OSB or plywood?

Plywood Holds the Moisture Advantage Over OSB When plywood gets wet, it tends to swell. … OSB takes longer than plywood to get saturated, but also takes much longer to dry out. When used as roof sheathing, this tendency to hold moisture means it will degrade faster than plywood when exposed to chronic leaks.

Which is cheaper OSB or particle board?

Particle board is cheaper, denser and more uniform than conventional wood and plywood.

Are OSB boards waterproof?

OSB is more water-resistant than plywood. So, OSB can be used for both indoor and outdoor projects. Make sure that you know how to make OSB board waterproof to add barrier against moisture or water.

What is cheaper than OSB?

Plywood is the more expensive option to build with than OSB. The material tends to be thicker and needs to be made to more exacting standards, which increases costs. A 4×8-foot sheet of construction-grade plywood costs roughly $10 a sheet, while the same size sheet of OSB costs only $6 a sheet.

What materials can block sound?

1. Mass-Loaded Vinyl Sound Barrier. …
2. Acoustic Mineral Wool Insulation. …
3. Green Glue Soundproofing Compound. …
4. Resilient Sound Channels. …
5. Soundproof Drywall. …
6. Acoustic Caulk, Sealant. …
7. Soundproof Foam Panels. …
8. Soundproof Blankets.

Is plywood sound absorbing?

Since sound in air is energy in motion, sound waves may be absorbed by a surface or reflected. Plywood, like other materials, will absorb some of the sound energy and reflect the remainder.

Does OSB help insulation?

Contractors use OSB for external sheathing, internal subfloors and when adding structural strength to interior walls. OSB is not insulation, but is used in combination with insulation to form the exterior envelope for the structure.

What is the cheapest sheet material?

• OSB.
• Plywood.
• Chipboard Flooring.
• MDF.

Why is 7/16 OSB so expensive?

Building material suppliers have to have 7/16 OSB to sell to customers, so many of them contract the product from mills. That means they are obligated to buy it regardless of current pricing. As they bought product at the higher prices, they were forced to raise their retail price to keep from losing money.

Can you use foam board instead of OSB?

Styrofoam Residential Sheathing offers a lightweight, efficient sheathing alternative to high-priced OSB panels. One solution: Specify rigid Styrofoam Residential Sheathing instead of OSB, for sections of the home that can be brought to code with other stiffening measures.

Is OSB board the same as chipboard?

Chipboard manufactured from waste materials has extra carbon offset value making a contribution to a sustainable environment. … OSB is characterised by its constituent strand elements which vary in size and aspect ratio and are larger than the chips from which chipboard is pressed.
