What is your critical path

In project management, the critical path is the longest sequence of tasks that must be completed to successfully conclude a project, from start to finish. The tasks on the critical path are known as critical activities because if they’re delayed, the whole project will be delayed.

What is critical path example?

For example, in the diagram below, activities E, F, G, H, and I make up the critical path. Their total duration is 100 hours. Activities B, C, D and E make up the second longest sequence with a total duration of 90 hours. The difference between their total duration is 10 hours.

How do you show a critical path?

On the View tab, pick a view from the Task Views group.
Staying on the View tab, select Critical from the Highlight list. The critical path shows up in yellow.
To see only the tasks on the critical path, choose the Filter arrow, then pick Critical.

What is a critical path and how is it calculated?

Identify all possible paths through the diagram, and add up all tasks’ duration to calculate the time to complete each path. The path that has the longest total duration is your critical path.

What activities are on the critical path?

The critical path outlines the longest distance between the start and the end of a project. It includes all the tasks, resources, and activities that must be completed to finish the project on time. The critical path also forms the basis of the project schedule and indicates the time it would take to complete the work.

How does critical path analysis work?

Critical path analysis identifies the sequence of crucial and interdependent steps that comprise a work plan from start to finish. It also identifies non-critical tasks. … The concept of a critical path recognizes that completion of some tasks in a project is dependent on the completion of other tasks.

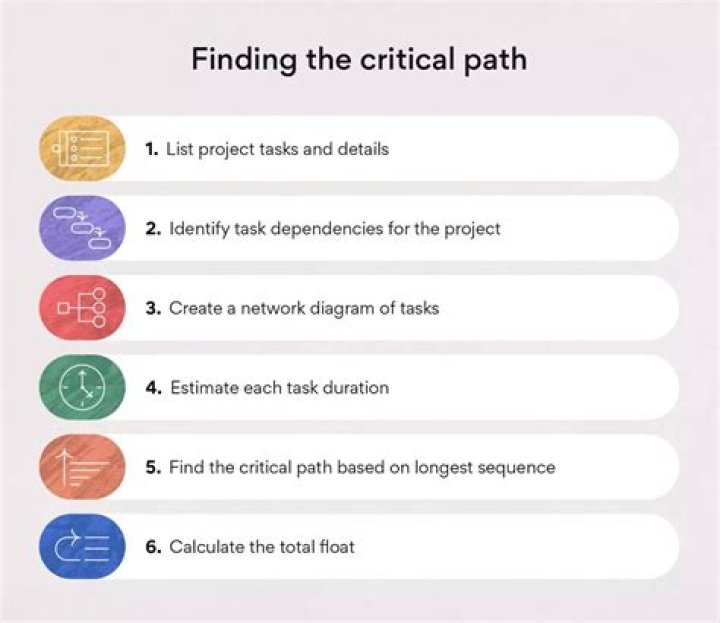

How do you solve a critical path problem?

Step 1: Specify Each Activity. …
Step 2: Establish Dependencies (Activity Sequence) …
Step 3: Draw the Network Diagram. …
Step 4: Estimate Activity Completion Time. …
Step 5: Identify the Critical Path. …
Step 6: Update the Critical Path Diagram to Show Progress.

What are critical tasks?

Critical Tasks are tasks that have a direct impact on the scheduled end date of the project. … A critical task duration increase of one day will cause the project total duration to increase by one day.

What is critical path Gantt chart?

A critical path in a Gantt chart refers to the phenomenon in which any individual task causes a delay in the related sequence of tasks, thus pushing back a project’s overall end date. … Such tasks also require the least amount of slack, and you must complete them within the designated time frame.

What is the difference between critical path and longest path?

The term “critical path” is often used to refer to the “longest path”. But an activity that is critical does not necessarily mean it falls on the longest path. … The second is by longest path. Any activities that fall along the longest path are flagged as critical.

Article first time published on

What is critical path PDF?

→ The Critical Path Method is used to determine the shortest possible time to complete the project. → The CPM is a sequence of activities of a project’s starting activity & time and the project’s finish time and activity. … → CPM_method is used for planning and scheduling activity.

What is slack time example?

It usually takes Fred one week to complete his marketing materials, so he needs to begin his work one week before the due date. The time difference between the time that he absolutely needs to begin the work so the project is not late and the time that he can begin working on his part of the task is the slack time.

What is slack of an event?

The head event slack of an activity in a network is the slack at the head (or terminal point) of an activity. In other words, head event slack of an activity in a network is the difference between the latest event time and earliest event time at its head (or terminal point or node).

What is slack time?

Slack time refers to the amount of time for which a project can experience delays beyond the earliest start date, without affecting project completion by its deadline.

Is critical path the longest or shortest?

Fact: The critical path is the longest path through the network diagram, meaning the sequence of activities that collectivity define the starting and ending dates for the project and have no slack or float time (excess time). Conversely, non-critical paths have slack time which is the amount of time a task can slip.

What is critical path in construction?

The critical path method in construction is a method of project scheduling that breaks down required activities using a diagram to calculate the duration required to complete each activity. … It’s commonly used by project managers to accurately plan construction projects.

What is the significance of critical path?

To summarize, the critical path is important when managing a project because it identifies all the tasks needed to complete the project—then determines the tasks that must be done on time, those that can be delayed if needed (due to the triple constraint of time, cost and scope) and how much float you have.

What is critical path slack?

Slack is the amount of time that an activity can be delayed past its earliest start or earliest finish without delaying the project. The critical path is the path through the project network in which none of the activities have slack, that is, the path for which ES=LS and EF=LF for all activities in the path.

What is the critical path What does it mean can the critical path change once a project has started explain your answer?

The critical path can change as critical tasks are completed, or as tasks in another series of tasks are delayed. There is always one overall critical path for any project schedule. The new critical path then becomes the series of tasks you track more closely to ensure the finish date you want.

How do you crash activities on the critical path?

Step 1: Analyze the critical path. …
Step 2: Identify all tasks that can be shortened with additional resources. …
Step 3: Calculate for each task: trade-off, gain, time reduction. …
Step 4: Choose the least costly approach. …
Step 5: Provide a crashing budget and updated project baselines to the sponsor.

Is the critical path important if only one person is working on a project?

6 replies. “It is important only if all tasks are on the critical path. If there are tasks not on the critical path and those tasks cannot be done in parallel since there is only one person, the time required for those tasks will have the be added to the time of the critical path to determine the completion time.”

Can there be two critical paths?

You can have more than one critical path in a project, so that several paths run concurrently. This can be the result of multiple dependencies between tasks, or separate sequences that run for the same duration.

Why critical path is the longest?

Let’s break it down. Critical Path is the longest path through the project because that’s the only path with no (positive) float / wiggle room. Other (non-critical) paths on the schedule network diagram have (positive) float / wiggle room.

What is the opposite of critical path?

An additional parallel path through the network with the total durations shorter than the critical path is called a sub-critical or non-critical path. Activities on sub-critical paths have no drag, as they are not extending the project’s duration.

What is management slack?

In project management, float or slack is the amount of time that a task in a project network can be delayed without causing a delay to: subsequent tasks (“free float”)

What is slack in the workplace?

Slack is a workplace communication tool, “a single place for messaging, tools and files.” This means Slack is an instant messaging system with lots of add-ins for other workplace tools.

How do we calculate slack?

Total slack is calculated as the smaller value of the Late Finish minus the Early Finish field, and the Late Start minus the Early Start field.
