What is wall tie corrosion

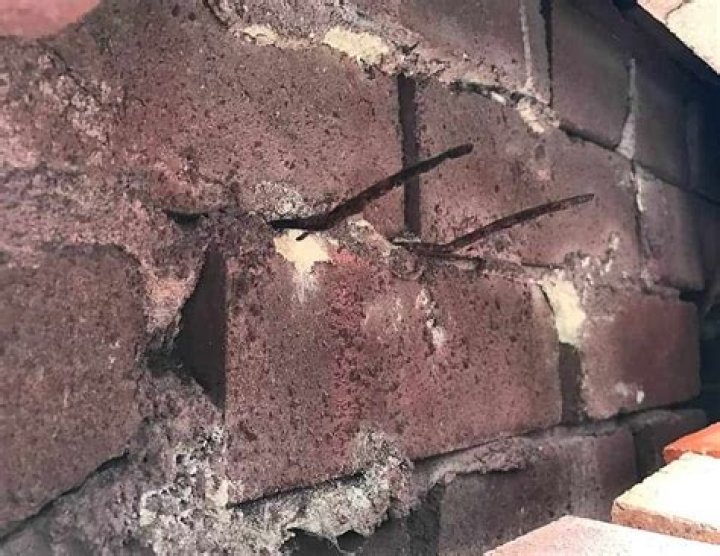

When a mild steel or galvanised steel wall tie corrodes, there is a build up of rust (also known as iron oxide), which causes the tie to expand in size. The resulting pressure on the surrounding masonry causes cracking in the mortar bed. Expansion in the external wall can also cause the brickwork to bulge outwards.

What is cavity wall tie corrosion?

When a mild steel or galvanised steel wall tie corrodes, there is a build up of rust (also known as iron oxide), which causes the tie to expand in size. The resulting pressure on the surrounding masonry causes cracking in the mortar bed. Expansion in the external wall can also cause the brickwork to bulge outwards.

What happens when wall ties fail?

Faulty wall ties can cause horizontal cracks and bulges to appear in your brickwork and even your outer cavity wall to completely collapse. … As you may be able to tell from the above, if your property is suffering from wall tie failure then this can mean that both skins become independent of each other.

What are the main causes of cavity wall tie failure?

The main cause of failures is the rusting of metal ties, although there can be other causes, such as failure to properly bed the tie in the mortar joint, poor quality mortar reducing the bond between tie and mortar, or not installing the requisite number of ties.

How do you know if a cavity wall tie fails?

Horizontal Cracks in Brick Mortar Cracks along the masonry and brick mortar are tell-tale signs that wall ties have deteriorated and started to rust. As the tie rusts, the volume of rust expands inside the mortar where it sits. Over time, widespread buildup of rust can actually crack the mortar between bricks.

Can I replace wall ties myself?

Typically, you can leave in place any original wire-type or ‘butterfly’ wall ties, embedded in standard-sized mortar joints. Generally, the metal is of insufficient mass for any corrosion to cause structural damage to the walls. Merely installing a replacement wall tie system will restore stability.

Do wall ties need replacing?

Wall ties are used to join the internal and external walls of a cavity wall and are installed during construction. Over time these wall ties start to corrode and require replacing – particularly where the steel wall ties have had little protection.

How often do wall ties need replacing?

In houses built before the 1980s, you can expect the wall ties to last around 15 to 20 years. For properties built since the 1980s, wall ties are generally made of stainless steel and can last over 50 years.

How do you inspect wall ties?

locate a number in each elevation using a metal detector, drill holes nearby and look at the tie within the cavity with an endoscope. Often we can see the heavy corrosion and de-lamination. If there is any doubt as to the condition of the wall ties, we expose the outer end by taking out the surrounding mortar.

Can Wall ties cause damp?

Problem: Wall ties dirty: can cause damp spots to appear on the inside plaster, sometimes with ‘salt’ or black mould. … Problem: Wall ties rusting: can cause damp spots to appear on the inside plaster, sometimes with ‘salt’ or black mould.

Article first time published on

Do old wall ties need to be removed?

Although they may seem like a small aspect of the build, wall ties contribute significantly to the stability of the structure. Unfortunately in some instances wall ties can become prone to corrosion and need to be replaced.

What is the purpose of wall ties?

Wall ties, sometimes called ‘brick ties’, are used in buildings with cavity walls. They are used to join the two leaves of a cavity wall together, allowing the two parts to act as a homogeneous unit. Hidden from view after construction, wall ties play a vital role in ensuring the stability of a building.

Can cavity wall insulation damage wall ties?

Over time, cavity wall ties mayhave deteriorated due to moisture within the brickwork and insulation, with this happening it can result in walls becoming bowed or collapsing or the structure of the house reshaping. Any cracks appearing in the cavity walls will need to be investigated before severe damage is caused.

What are Type 4 wall ties?

Type 4 wall ties are a light duty wall tie which is used to join together two masonry leaves. Designed for use on domestic homes up to 10 meters in height. Type 4 wall ties are suitable for cavities up to 100mm and must meet standards outlined in BSEN 845-1.

What are remedial wall ties?

Twistfix remedial wall ties offer rapid wall tie replacement and reliable brick pinning installation. … They screw in to brick, masonry or concrete when hammered into pilot holes using the impact action of a hammer drill.

How many Wall ties can you have in a house?

You need two and a half wall ties per square metre of masonry. The maximum horizontal spacing is 900mm and the maximum vertical spacing is 450mm. That’s why cavity wall insulation boards usually have a maximum dimension on the short edge of 450mm. Set each wall tie a minimum of 50mm into both masonry leaves.

How long does a wall tie survey take?

CookieDurationDescription_uetvid16 days 6 hoursNo description

How much does it cost to replace a brick wall?

How much does it cost to repair a brick wall? It’ll cost anywhere from $300 to $10,000 or more depending on the level of damage, your location and ease of access. A small crack might cost $300 to $750 while full exterior multistory restorations run over $10,000.

What length should wall ties be?

Cavity Width (mm)Length of Wall Tie (mm)50-7520076-100225101-125250126-150275

How often should I brick tie?

Ties should be spaced every 16″ vertically and every 16″ or 24″ horizontally depending on stud spacing. This supports most codes which require one wall tie for every 2.67 SF of wall area. Ties must be nailed into studs and are typically installed as the mason works up the wall with brickwork.

Are wall ties covered on home insurance?

Despite the various different home insurance and contents insurance available, not all property insurance policies will cover cavity wall ties and are unlikely to insure against cavity wall ties affected by corrosion. Different insurance policies will vary in what is and is not covered.

Are brick ties important?

Brick ties are an important component of bricklaying. Brick ties are small architectural elements that are used to connect two brick walls across a narrow cavity or to bind a brick wall to a wood or steel frame. … Brick ties are a cheap and effective method of reinforcing brick-and-mortar construction.

Why does the wall tie have a bend in middle?

These wall ties distort or crack the walls in which they’re placed. Due to absorption of moisture, brickwork can expand too. This expansion places uneven pressure on your structure and may result in a leaning, bowing, bending or bulging wall.

Do all cavity walls have wall ties?

Every cavity wall will have ties built into it, and they play a crucial role in ensuring its safety and stability. Any brick-built house developed over the last century or so is most likely to have been constructed using cavity walls and wall ties.

What are Type A wall ties?

In most cases, cavity walls require Type A wall ties: these tend to be lighter and transmit less vibration (and sound) between the two connected leaves. … Whilst this generally relates to external walls, it is often the case that the wider cavity is carried through to separating walls between adjacent dwellings.
