What is VAT polymerization

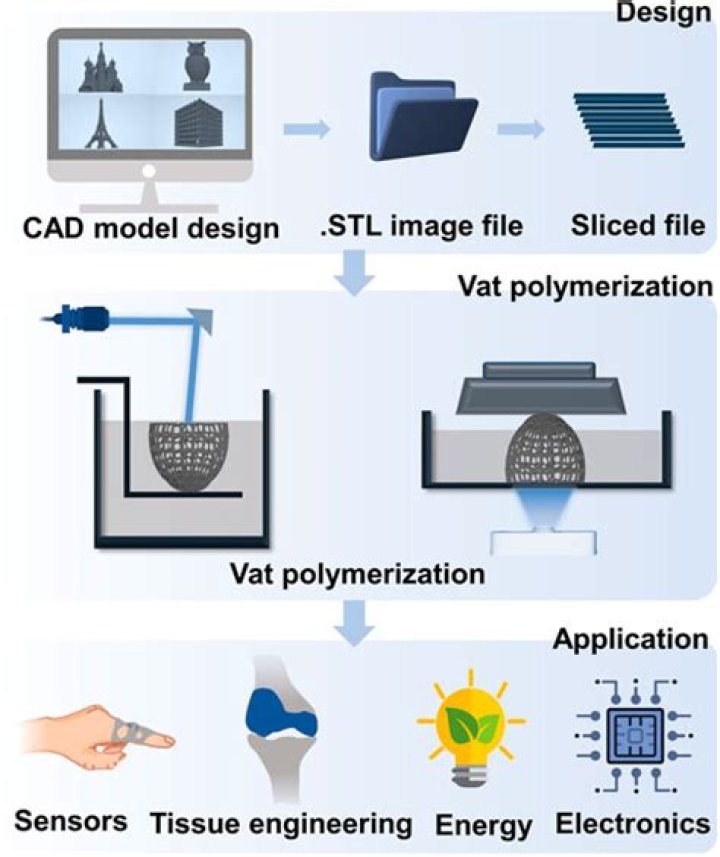

Vat polymerisation uses a vat of liquid photopolymer resin, out of which the model is constructed layer by layer. An ultraviolet (UV) light is used to cure or harden the resin where required, whilst a platform moves the object being made downwards after each new layer is cured.

Where is vat polymerization used?

Most 3D printers that use vat photopolymerization keep liquid photopolymer in a container or vat, with the build platform partially submerged at the liquid’s surface. The printer directs a light source to selectively cure the liquid photopolymer into a solid layer using information from a CAD file.

What is polymerization in additive manufacturing?

Vat polymerization is a type of additive manufacturing technique that offers an attractive strategy for fabricating 3D objects due to its high resolution, versatility of feedstock materials, and high dimensional accuracy.

What is the earliest example of a vat polymerization type process?

Stereolithography was the first AM process to be invented. The first patent was filed in 1975 which described a two-laser 2PP process[7].

What is the concept of photopolymerization?

Photopolymerization is a technique that uses light (visible or ultraviolet; UV) to initiate and propagate a polymerization reaction to form a linear or crosslinked polymer structure.

How does powder bed fusion work?

Powder bed fusion (PBF) methods use either a laser or electron beam to melt and fuse material powder together. … Selective Heat Sintering differs from other processes by way of using a heated thermal print head to fuse powder material together. As before, layers are added with a roller in between fusion of layers.

What are the different types of vat polymerization?

Since the advent of stereolithography in the 1980s, vat photopolymerization has grown to also include continuous liquid interface production (CLIP), solid ground curing (SGC), and direct light processing (DLP). All types of vat photopolymerization use special resins called photopolymers as the printing material.

Which can be used for rapid prototyping?

Stereolithography (SLA)
Selective Laser Sintering (SLS)
Fused Deposition Modeling (FDM)
Selective Laser Melting (SLM)
Laminated Object Manufacturing.
Digital Light Processing.
Binder Jetting.

What occurs during polymerization?

polymerization, any process in which relatively small molecules, called monomers, combine chemically to produce a very large chainlike or network molecule, called a polymer. The monomer molecules may be all alike, or they may represent two, three, or more different compounds.

What is the other name of multi jet Modelling?

Share: The additive manufacturing method, or 3D printing method, known as Multi-Jet Modeling (MJM) uses layers of photopolymer being positioned on top of each other and cured with UV light. This method is also known as the Inkjet or Polyjet method.

Article first time published on

What is vat in 3D printing?

VAT 3D printers work by selectively curing particles of photopolymer resin within a vat. The vat is filled with photopolymer resin, after which a UV light selectively cures the material to build the desired object. … It selectively cures photopolymer resin in a vat to build objects.

What materials can be used in additive manufacturing?

Three types of materials can be used in additive manufacturing: polymers, ceramics and metals. All seven individual AM processes, cover the use of these materials, although polymers are most commonly used and some additive techniques lend themselves towards the use of certain materials over others.

When was vat photopolymerization invented?

I’ll begin with vat photopolymerization because it was the first AM process to be successfully commercialized. This process was introduced to the market in the late 1980s by 3D Systems and called Stereolithography based on Chuck Hull’s patent for the technology.

What do photoinitiators do?

A photoinitiator is a molecule that creates reactive species (free radicals, cations or anions) when exposed to radiation (UV or visible). … Some small molecules in the atmosphere can also act as photoinitiators by decomposing to give free radicals (in photochemical smog).

Which technique uses photopolymerization process?

Stereolithography, digital imaging, and 3D inkjet printing are just a few 3D printing technologies that make use of photopolymerization pathways. 3D printing usually utilizes CAD-CAM software, which creates a 3D computer model to be translated into a 3D plastic object.

How do photopolymers work?

Photopolymerization works by leveraging the UV-sensitive properties of photopolymer materials. For most 3D printing processes, layers of deposited material are cured via a UV light. … The UV light triggers a reaction within the deposited material, essentially solidifying it.

What is SLA printing used for?

Stereolithography (SLA) is an industrial 3D printing process used to create concept models, cosmetic prototypes, and complex parts with intricate geometries in as fast as 1 day. A wide selection of materials, extremely high feature resolutions, and quality surface finishes are possible with SLA.

What is sheet lamination?

Sheet lamination is an additive manufacturing (AM) methodology where thin sheets of material (usually supplied via a system of feed rollers) are bonded together layer-by-layer to form a single piece that is cut into a 3D object.

What is material jetting?

Material jetting creates objects in a similar method to a two dimensional ink jet printer. Material is jetted onto a build platform using either a continuous or Drop on Demand (DOD) approach. Material is jetted onto the build surface or platform, where it solidifies and the model is built layer by layer.

What are the disadvantages of powder bed fusion?

Relatively slow and long print time – Powder preheating, vacuum generation, cooling-off period all add to the build time making it one of the slowest in the additive manufacturing.
Post-processing – Printed parts need..

What is the difference between directed energy deposition and powder bed fusion process?

Directed Energy Deposition vs Powder Bed Fusion Research has shown that Directed Energy Deposition is ten times faster and five times less expensive than Powder Bed Fusion (PBF) when creating mid-size metal parts. The study tested the two methods in building a 150mm diameter, 200mm tall metal part from Inconel.

What are the advantages of powder bed fusion?

Powder bed fusion offers a wide range of advantages, some of which are listed below. Reduced material waste – Building up the part layer by layer eliminates most of the waste associated with subtractive manufacturing technologies. After the part is complete, any excess powder is collected and recycled.

What is an example of polymerization?

Polymerization reactions are chain reactions, and the formation of Teflon from tetrafluoroethylene is one example. In this reaction, a peroxide (a compound in which two oxygen atoms are joined together by a single covalent bond) may be used as the initiator.

Why do we need polymerization?

Polymers, a large class of materials, consist of many small molecules named monomers that are linked together to form long chains and are used in a lot of products and goods that we use in daily life. … The rapid increase in demand for the manufactured products introduce the new materials.

What is polymerisation in simple words?

Polymerization or polymerisation is the process in which small molecules, called monomers, join chemically to produce a very large chain-like or network molecules, called a polymer. The monomer molecules may all be alike, or they may represent two, three, or more different compounds.

What is evolutionary prototyping?

Evolutionary prototyping is a software development method where the developer or development team first constructs a prototype. After receiving initial feedback from the customer, subsequent prototypes are produced, each with additional functionality or improvements, until the final product emerges.

What is the difference between additive manufacturing and rapid prototyping?

Rapid prototyping means producing a prototype rapidly. Additive manufacturing refers to any manufacturing process which makes products by gradually adding materials.

What is rapid prototyping UX?

Rapid prototyping is the process of creating high-fidelity prototypes to test user flows and validate ideas fast! UX teams usually outline a strategy and assign roles to optimize an efficient workflow for the prototyping and testing phases. The goal of rapid prototyping is speed.

What materials can be used in binder jetting?

The materials commonly used in Binder Jetting are metals, sand, and ceramics that come in a granular form.

What is another name for rapid prototyping?

Rapid Prototyping is also known as 3D Printing (3DP), layered manufacturing, layered additive manufacturing, additive layered manufacturing (ALM), additive manufacturing (AM), direct digital fabrication, digital prototyping, digital fabrication, direct digital manufacturing, desktop fabricator, desktop manufacturing, …

Which CAD software can be used to create data for prototyping machine?

The software most frequently used in prototyping includes SketchUp, AutoCAD, SolidEdge and SolidWorks.
