What is USB ACM device

USB CDC (Communications Device Class) ACM (Abstract Control Model) is a vendor-independent publicly documented protocol that can be used for emulating serial ports over USB.

What is USB CDC ACM?

The CDC-ACM class provides a serial interface for connecting devices such as modems to an embedded system. The package provides a CDC-ACM host class driver for a USB stack. The system allows a USB serial port device to be plugged into the host and recognized as a remote serial port.

What is ACM modem?

Another control model, aptly named abstract control model or ACM, lets the modem hardware perform the analog functions, and require that it supports the ITU V. … 250 commands by itself, the device will never have to answer them.

What is ACM driver?

This embedded USB Communications Device Class – Abstract Control Model (CDC-ACM) class driver is used for connecting legacy serial ports or modems over a USB link to a host system. … This allows a device to connect to a host system and appear to the host system as one or more locally connected serial ports.

What is ACM in Linux?

The CDC ACM + Linux gadget MS driver is a USB composite gadget driver which implements the serial communication and mass storage functions. This allows the device to be registered on a host computer as a seral port (e.g. /dev/ttyACM0 or COM1:) and as a USB thumb drive (e.g. /dev/sdf or E:).

What is CDC host?

Description. USB Host functions to support Communication Device Class (CDC) Abstract Control Model (ACM) USB Devices. The CDC ACM class in the USB Host Component is used for attaching communication devices to your system.

What is CDC ACM data?

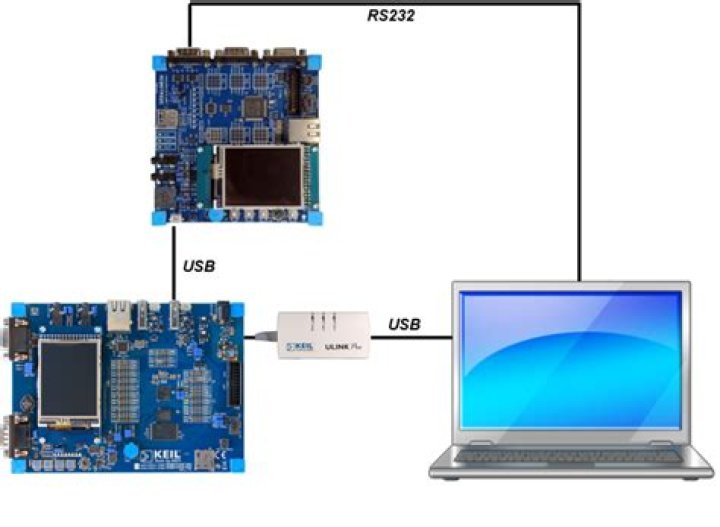

The CDC (ACM) class in the USB Component is used for data communication. You can typically use it in applications that previously used a serial COM or UART communication. … USB Device Virtual COM Port example project.

What is ttyUSB0 in Linux?

ttyUSB0 is the device for the first USB serial convertor. If you have an USB serial cable you’d be using a ttyUSBn to connect to the serial port of a router. ttyAMA0 is the device for the first serial port on ARM architecture.

How do I know if I have Dev ttyUSB0?

cd /sys/devices.
Find the directory of the first of your ports: find -name “ttyUSB0” . It will probably find them in something like ./pci0000:00/0000:00:1d. …
The pci* part is the USB controller.

What is Dev ttyS0?

Serial Port Terminals For each such terminal there is a special file in the /dev (device) directory. /dev/ttyS0 is the special file for the serial port known as COM1 in the DOS/Windows world. To send text to a terminal you may redirect standard output of some command-line command to the appropriate special file.

Article first time published on

What is ACM in satellite communication?

Adaptive Coding and Modulation (ACM) is a feature incorporated into the DVB-S2 satellite specification, allowing real-time adaptation of transmission parameters according to the link conditions.

What are udev rules?

Udev rules determine how to identify devices and how to assign a name that is persistent through reboots or disk changes. When Udev receives a device event, it matches the configured rules against the device attributes in sysfs to identify the device.

What means TTY Linux?

The tty command of terminal basically prints the file name of the terminal connected to standard input. tty is short of teletype, but popularly known as a terminal it allows you to interact with the system by passing on the data (you input) to the system, and displaying the output produced by the system.

What is ttymxc1?

/dev/ttymxc1 (UART2) is the serial boot/debugging console, routable to the same rear-panel USB port that can also be used for Arduino programming.

What is USB CDC mode?

USB communications device class (or USB CDC class) is a composite Universal Serial Bus device class. The communications device class is used for computer networking devices akin to a network card, providing an interface for transmitting Ethernet or ATM frames onto some physical media.

How does USB CDC work?

USB CDC sends data to USB IN FIFO. This function sends data to USB IN FIFO. Transmit data size specified in Length.

What is USB bulk transfer?

A USB bulk endpoint can transfer large amounts of data. Bulk transfers are reliable that allow hardware error detection, and involves limited number of retries in the hardware. For transfers to bulk endpoints, bandwidth is not reserved on the bus.

What is network CDC?

CDC’s Health Alert Network (HAN) is CDC’s primary method of sharing cleared information about urgent public health incidents with public information officers; federal, state, territorial, tribal, and local public health practitioners; clinicians; and public health laboratories.

What is CDC ECM?

This embedded USB Communications Device Class – Ethernet Control Module subclass (CDC-ECM) class driver is used to send and receive Ethernet frames over USB. … It emulates an Ethernet device but uses USB instead of Ethernet as the medium.

What is CDC programming?

In databases, change data capture (CDC) is a set of software design patterns used to determine and track the data that has changed so that action can be taken using the changed data.

What COM port is ttyUSB0?

If you are using USB to connect your devices, the output will likely be ttyUSB0 . The port name is the output with the directory included: /dev/ttyUSB0 . If you are using USB to connect your devices, the output will look something like tty. usbserial-A4017DXH .

What is ttyUSB0 connection?

ttyUSB means “USB serial port adapter” and the “0” (or “1” or whatever) is the device number. ttyUSB0 is the first one found, ttyUSB1 is the second etc. (Note that if you have two similar devices, then the ports that they are plugged into may affected the order they are detected in, and so the names).

How do I know if my device has a serial port?

To test if the computer COM port is functioning correctly, you can do a simple loopback test. (In a loopback test, a signal is sent from a device and returned, or looped back, to the device.) For this test, connect a serial cable to the COM port that you want to test. Then short pin 2 and pin 3 of the cable together.

How do I find USB devices on Linux?

$ lsusb.
$ dmesg.
$ dmesg | less.
$ usb-devices.
$ lsblk.
$ sudo blkid.
$ sudo fdisk -l.

How do I connect to Dev ttyUSB0?

But don’t forget to add your user to dialout: sudo adduser <username> dialout then reboot the system. After that, you can use puTTY for serial connections such as /dev/ttyUSB0 .

How do I find my USB ID in Linux?

Run the lsusb command to list details of your connected USB devices.
Find your desired USB device in the list to see your PID and VID.

What is Dev serial?

DevGenreCrime Drama Mystery ThrillerDeveloped byB.R. Sharan Arshad Syed Debojit Das Agrim JoshiDirected byNissar Parvez Alind SrivastavaStarringAshish Chaudhary Sumona Chakravarti Puja Banerjee Jigyasa Singh

What type of file is Dev TTY?

For each such serial port there is a special file in the /dev (device) directory. /dev/ttyS0 is the special file for the serial port known as COM1 in the DOS/Windows world. To send text to a terminal you may redirect standard output of some command-line command to the appropriate special file.

What does Dev ttyACM0 mean?

/dev/ttyACM0 is a USB communication device (CDC) of sub-type “abstract control model” (ACM). That is what the Arduino is. /dev/ttyS0 is a hardware serial port – the (typically) 9-pin D connector on the back of your computer. If you want to use /dev/ttyS0 (why would you?!)

What is AMC in LTE?

Long Term Evolution (LTE) is the new upgrade path for carrier with both GSM/UMTS networks and CDMA2000 networks. … Adaptive Modulation and Coding (AMC) is used to increase the network capacity or downlink data rates.

What is fixed modulation?

Fixed Modulation in Noise. In summary, a fixed modulation method carries a given. number of bits per symbol over a channel and the detector. detects the bits (or symbols) with a given bit (or symbol) error probability.
