What is the size of copper

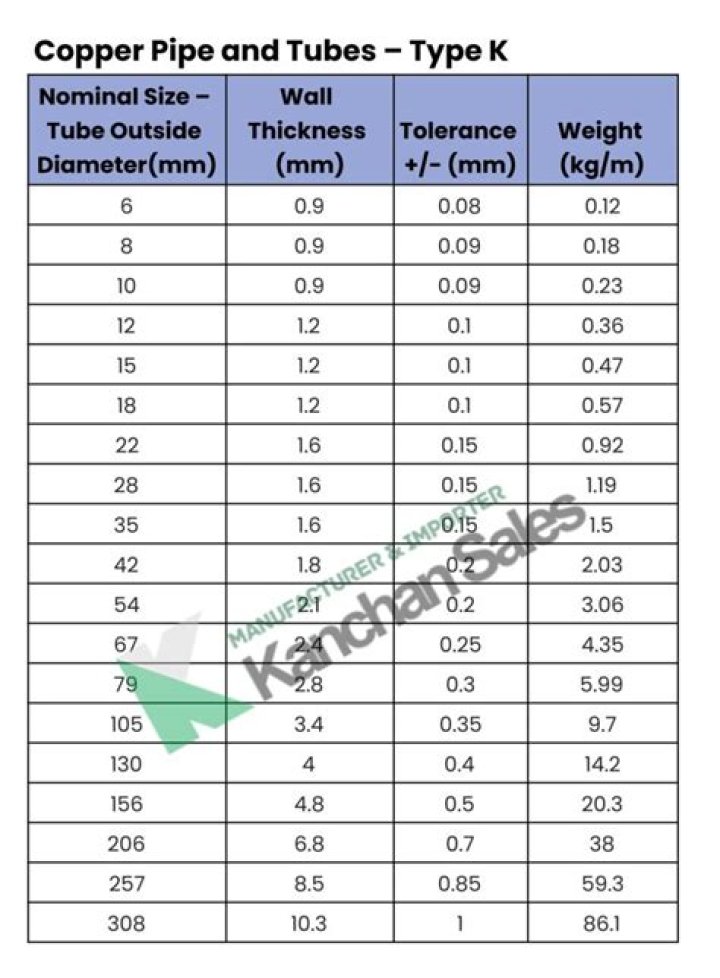

Copper Tubing Sizes (CTS) for PlumbingNominal sizeOutside diameter (OD) [in (mm)]Inside diameter (ID) [in (mm)]1⁄43⁄8 (9.5)0.315 (8.001)3⁄81⁄2 (12.7)0.430 (10.922)1⁄25⁄8 (15.875)0.545 (13.843)

What is the size of copper pipe?

Nominal Pipe Size inchesO.D.I.D.Type5/80.7500.6523/40.8750.74511.1250.995

How do you measure copper pipe size?

Here’s how to determine pipe size by simply measuring the OD. Copper. The nominal size of copper pipe, whether supply lines or DWV, is always 1/8 inch less than the OD measurement. For example, copper pipe that measures 5/8 inch OD, is called 1/2- inch pipe.

What size copper pipe is most common?

The most common copper pipe sizes are ½ and ¾ inches. Type M ½ inch measures 0.028” in wall thickness whereas type L ½ inch measures 0.04” in wall thickness. Type M ¾ inch measures 0.032” in wall thickness while type L ¾ measures 0.045”.

What size is English copper?

They changed to metric 15 mm and 22 mm respectively in Britain. Now this seems straight forward enough but there is a catch. The Imperial sizes are based on the internal bore diameter of the pipe and the metric sizes are based on the external diameter of the pipe.

How do I measure pipe size?

To find it, measure around the circumference of the pipe with flexible measuring tape. Divide the circumference by pi, or about 3.14159. For example, if the circumference is 12.57 inches (319 mm), you would divide by pi, and get an outside diameter of about 4 inches (100 mm).

What size is House copper water pipe?

Copper pipe is commonly available in diameters ranging from ½ inch to 2 inches. Lengths of copper pipe are joined together with fittings, which come in many sizes and shapes, including: 90° elbows, 45° elbows, couplings, reducing fittings, and T-fittings. Fittings can be soldered or threaded onto the pipe ends.

How long will copper pipe last?

Copper. This is the most common metal used today for plumbing pipes, and it has been in common use from the 1970s onwards. Copper pipes will usually last for more than 50 years.

What is L copper used for?

Type L Copper Pipe: Type L copper pipe is used for interior plumbing, fire protection, and some HVAC applications. It is available in rigid and flexible forms and can be used with sweat, compression, and flare fittings.

Is copper pipe pure copper?

Copper pipe is almost pure copper manufactured to the requirements of ASTM B 42 – Standard Specification for Seamless Copper Pipe, Standard Sizes.

Article first time published on

What are standard pipe sizes?

NPSOutside Diameter (in)Weight (lb/ft)3/80.675″0.57 lb/ft1/20.840″0.85 lb/ft3/41.050″1.13 lb/ft11.315″1.68 lb/ft

What is 15mm copper pipe used for?

15mm copper tube is a versatile material and can be used in the installation of heating systems but can also be used to transport both gas and liquids. Suitable for both domestic and commerciual use, it is naturally resistant to corrosion and as it is rigid and wont sag it requires fewer supports upon installation.

What is the standard water pipe size?

The most common pipe diameter for water mains is 6 to 16 inches, with 8, 10, and 12 inches also being used. Branch lines providing service to individual homes, offices, buildings, and businesses vary in size from as small as half an inch in diameter up to 6 inches.

What size is 15mm copper?

15mm outside diameter, 0.7mm wall thickness, 13.6mm nominal inside diameter.

What is 54mm copper pipe used for?

Copper Tube Manufactured to EN1057 Tube is suitable for hot and cold water services, gas services, sanitation and central heating.

What size is brass water pipe?

We carry brass pipe in 230. Our red brass pipe is available in diameters of 1/8″ up to 4.5″ and in standard and custom-cut lengths. Brass water pipes are commonly used in all types of water systems because red brass is known for its corrosion resistance and strength.

What size copper pipe is used for shower?

Nearly all tub and shower faucets require a one-half inch diameter water supply pipe on both the hot and cold supplies.

How many types of copper are there?

There are as many as 400 different copper and copper alloy compositions loosely grouped into the categories: copper, high copper alloy, brasses, bronzes, copper nickels, copper–nickel–zinc (nickel silver), leaded copper, and special alloys.

Is pipe size OD or ID?

The nominal dimension for pipe is the ID. So, 1½ inch pipe is NOT 1½ inch outside diameter, but instead is nominally, (approximately) 1½ inch inside diameter. Pipe is typically manufactured to looser tolerances and less expensive to purchase.

What is the area of pipe?

Plug in L and D into the following equation to calculate the surface area of the pipe: 3.14 x L x D. For example, if you had a pipe with a length of 20 feet and a diameter of 2 feet, you would get 3.14 x 20 x 2 and find that the surface area of the pipe equals 125.6 square feet.

Is pipe measured ID or OD?

OD and Nominal Pipe Size Tubing is measured by the OUTSIDE DIAMETER (O.D.), specified in inches (e.g., 1.250) or fraction of an inch (eg. 1-1/4″). Pipe is usually measured by NOMINAL PIPE SIZE (NPS). Although it is related to the outside diameter, it is significantly different.

Should I use Type M or Type L copper?

Type L copper pipe is recommended where you need strength and protection. But for normal “in the wall” household plumbing, Type M copper pipe is just fine. … The beefier Type L is often used underground, in hot water heating systems, for commercial plumbing and for gas line (where permitted).

What is the difference between Type K and L copper?

Type K is the heaviest. Type L is medium weight and used most often for water lines in homes. Type M is thinner and is used underground or for light domestic water lines if local codes allow.

Is copper pipe safe for drinking water?

Copper pipes with lead-free joint materials are the best choice for water pipes. They are long-lasting and won’t leach chemicals into your drinking water. However, copper pipes are generally more expensive, and copper’s intensive extraction and manufacturing process presents some environmental trade-offs.

Can copper water pipes freeze?

Both plastic and copper (CPVC, PEX, COPPER) pipes are susceptible to freezing. Pipes freeze for a combination of three reasons: a quick drop in temperatures, poor insulation and a thermostat that is set too low.

When did they stop using copper pipes in houses?

Copper was the plumbing pipe of choice from the 1950s until 2000 and was widely used both in new construction and to replace the galvanized steel water supply pipes that had been the standard into the 1950s. But copper’s use has gradually faded, due to the introduction of.

What is better plastic or copper pipes?

Should we use copper or plastic? Copper has been the longtime standard for plumbing. … However, plastic piping (PEX) works well because it is made of a flexible material. It is also resistant to cold temperatures and has fewer joints, so it may be less costly to install.

Is electrical wire pure copper?

Generally it is pure copper. There’re some copper alloys used, for example to increase the physical strength of cables, but these are rare. Pure copper is best for conductivity, especially in electrical power wiring.

What is difference between copper pipe and copper tube?

Tubing is usually more expensive than pipe due to tighter manufacturing tolerances. Interestingly, while the stated and measured OD’s of tubing are almost exact in most cases, copper tubing generally has a measured OD that is 1/8” larger than stated OD. As such, maybe it should be called copper pipe.

What is copper piping made of?

Copper pipe is mostly derived from pure copper. Because scrap copper is used in some products, there is the potential for some impurities. But recycled copper makes up a tiny percentage of copper piping. A small amount of phosphorous is added at the end of the smelting process for copper pipes to deoxidize the metal.

What is the OD of 1 pipe?

PIPE SCHEDULES WALL THICKNESS (Inches)NominalO.D. Inches80s & E.H.3/41.050.15411.315.1791 1/41.660.191
