What is the peak of a roof

Roof Ridge: The roof ridge, or ridge of a roof is the horizontal line running the length of the roof where the two roof planes meet. This intersection creates the highest point on a roof, sometimes referred to as the peak.

How do you measure the peak of a roof?

Measure an outside wall from end to end where the gable roof comes to a peak above the wall. Divide the measurement in half and mark the center of the wall at head-height below the peak.

What is the cap on a roof called?

A ridge cap is a building material that is installed along the ridge line of a sloped roof. A traditional gabled roof on a home is made up of two sloped sides that meet in the middle. The point where these two sides meet forms the apex of the roof, and is known as the ridge or ridge line.

What is the peak on a house called?

Primary Structure Gable – The triangular part of a wall where roof pitches meet and come to a peak. Ridge – The top peak of a gable roof running horizontally where two sloping sides meet. Hip – A downward sloping junction of the roof where sloping sides meet.

How do you measure the peak of a house?

The peak is the tricky part, multiply half of the overall wall length (12′) by the vertical distance from the wall height to the peak (8′) to get the gable end’s square footage (12 x 8 = 96 SQ FT).

What is the peak of a building?

The uppermost angle of the roof, where the two slopes meet. The vertical distance from the eaves line to the ridge of the roof. 100 square feet of roofing material installed with proper exposure.

How do I calculate my roof area?

1. Measure the length and width of each plane on the roof (including dormers) then multiply length times width.
2. Add the square footage of each of the planes together.

What are ridge vents on a roof?

A ridge vent is an air exhaust vent installed on the peak of a roof. When installing this vent, an air slot is first cut in the roof deck at the roof’s peak. … Eave and soffit vents, or vents placed where a roof or overhang juts out over the home’s exterior wall, will allow cooler, dry air to enter the lower attic space.

What is a soffit?

What Is a Soffit? Your roof by necessity, will often times extend over the walls of your home. This overhang can go by a few names, such as the house eaves or the rafters of your roof. The underside of this overhang, when given a finished appearance, is known as the soffit, which means “something fixed underneath”.

Why do we leave a gap at the peak of the roof?

Wherever you have two roof planes coming together at an angle, you get either a peak or a valley. Since so much water flows through the roof valleys, they must be protected by extensive roof flashing networks to keep your roof dry and leak-free. With the peaks, a special covering called a ridge cap must be used.

Article first time published on

Do roofs need ridge caps?

On the other hand, an asphalt shingle roof will require ridge cap shingles. Since asphalt shingles are more prone to wear and tear compared to metal roofing, it’s even more critical to have ridge cap shingles in place to stop rain and moisture from penetrating.

What is a roof hip and ridge?

A roof “hip” refers to the outwards diagonal joint created by the junction of two roof slopes. A roof “ridge” refers to the upper most peaks created by the junction of two roof slopes facing opposite directions.

How do you measure roof peaks from the ground?

Count the rows of shingles upward from the gutter to the peak. Divide the row number by 2 to arrive at the height of the section in feet. Write down the height number. Multiple width by height to calculate square footage for the section.

How tall is the peak of a house?

Common Peaks Are 60 to 84 Inches The most common pitches for houses are 5/12 and 6/12 and the most common runs are 12 or14 feet, for roofs 24 or 28 feet wide. A 12-foot run has a peak of 60 inches with a 5 pitch, 72 inches with a 6. A 14-foot run would have comparable peaks of 70 and 84 inches.

How do you determine the slope of a roof?

If you know the roof’s angle in degrees, you can find the roof pitch by converting the angle in degrees to a slope, then finding the rise by multiplying the slope by 12. First, find the slope by finding the tangent of the degrees, e.g. slope = tan(degrees). Then multiply the slope by 12 to get the rise.

Is roof square footage same as house?

Roofing Quote Footage is Not the Same as Home Square Footage Depending on where the information is coming from is going to determine the basis on which the estimated roof footage is calculated. The roof square footage is what we (roofing contractor) need to calculate a budget quote to do the job.

What is standard roof pitch?

Conventional slope roofs are most common with residential roofs. This means the slope has a pitch between 4/12 and 9/12 on most homes. Roofs with a pitch exceeding 9/12 are called steep slope roofs.

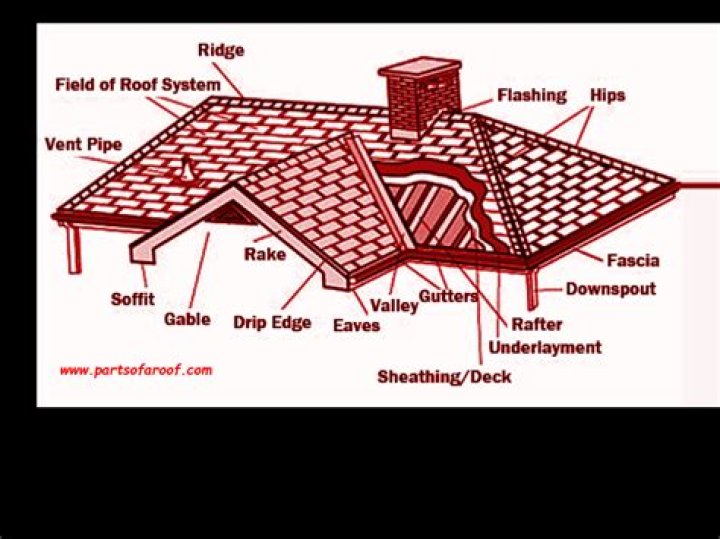

What are the parts of a roof called?

• Roof plane: This is the surface of the roof. …
• Ridge: This is the top or peak of the roof, where two roof planes meet.
• Valley: This is where two pitched roof faces connect and project inward. …
• Dormer: This is a roof feature that projects out from the roof face.

What is a roof overhang?

The roof overhang refers to how much the edge of the roof goes beyond the house siding. Under the overhang is a structure known as the soffit. Most homes have an overhang, however, length varies greatly depending on the architectural style of the roof, with slate roofs having longer overhangs typically.

What is the difference between fascia and fascia?

FasciaLatinfasciaMeSHD005205TA98A04.0.00.031TA22015

Does roof need soffit?

A roof may need soffit vents if there is no other ventilation allowing for adequate air movement. However, if the attic space is properly sealed and insulated, there is no need for this type of ventilation. … Soffit vents are an easy, aesthetically pleasing way to vent the attic space.

What happens if a roof is not vented?

They say that poor or non-existent ventilation might cause attic temperatures to rise to 150 degrees or higher in the summer. That can lead to damaged shingles and other roofing materials as well as a buildup of condensation and development of mildew and mold.

How many vents should a roof have?

The general rule of thumb in these situations is of roughly one vent per every 300 square feet of attic area if the attic has a vapor barrier. If not, there should be one vent for every 150 square feet. You will need to have 1 square foot of vent area for every 150 square feet of attic space.

What is a drip edge?

Drip edge is metal flashing installed at the edges of the roof to keep water away from your fascia and from getting underneath your roofing components. If your roof doesn’t have drip edge, water gets behind your gutters and rots out both your fascia board and roof decking.

Do roofs need vents?

Roof vents are important because they extend the life of your roof, reduce energy costs, and reduce indoor temperature extremes. They also prevent damage to your shingles and prevent them from cracking.

What are cap shingles?

The shingles at the peak of your roof are commonly called cap shingles. If your shingles are standard three-tab shingles, the caps are made by cutting one shingle into three separate parts. … The cap shingles often are installed on top of a continuous ridge vent.

What do roof caps do?

Roof caps are essential components of any ventilation system and they keep elements that are unwanted from getting into a building. … The roof cap design is very essential. First of all, their purpose is to enable the attic area to be free of warm air by providing an escape route.

What is valley rafter?

Definition of valley rafter : the rafter running from the wall plate to the ridge and along the valley of a valley roof.

What are the metal things on roofs called?

Snow guards or snow brackets are roof-mounted metal “spikes” installed by your roofing contractor and designed to hold large amounts of snow in place and prevent them from falling in one big chunk.

Why is it called a hip roof?

hip roof, also called hipped roof, roof that slopes upward from all sides of a structure, having no vertical ends. The hip is the external angle at which adjacent sloping sides of a roof meet. The degree of such an angle is referred to as the hip bevel.

What does a 2 12 roof pitch look like?

A 2/12 roof slope means your roof has 2 inches of vertical drop for every 12 inches of horizontal distance. Simply put, it’s a shallow roof. … A roof this shallow is likely to be found on a ranch house, a shed dormer or a porch.
