What is the IMA of a lever

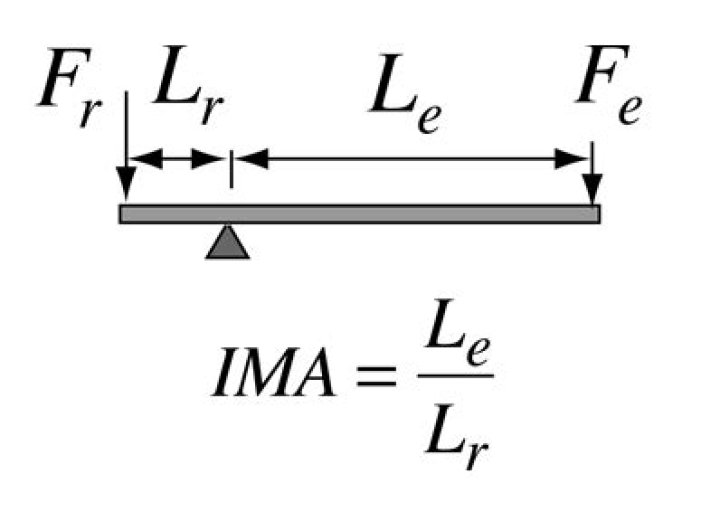

(b) The ideal mechanical advantage equals the length of the effort arm divided by the length of the resistance arm of a lever. In general, the IMA = the resistance force, Fr, divided by the effort force, Fe.

What is the IMA of a first class lever?

Class of LeverExample of Lever in This ClassIdeal Mechanical AdvantageFirst classSeesaw [Figure 2]1 < 1 > 1Second classWheelbarrow [Figure 4]> 1Third classHockey stick [Figure 6]< 1

What is the mechanical advantage of a lever?

The mechanical advantage of the lever is the ratio of output force to input force. This relationship shows that the mechanical advantage can be computed from ratio of the distances from the fulcrum to where the input and output forces are applied to the lever, assuming no losses due to friction, flexibility or wear.

What does an IMA of 1 mean?

Ideal Mechanical Advantage If the IMA is 1, that means the force applied stayed the same. However, machines with a high IMA are not always desirable. The higher IMA a machine has, the less distance the load moves in comparison to the distance of the input force.

What is the IMA of a gear?

The ideal mechanical advantage (IMA), or theoretical mechanical advantage, is the mechanical advantage of a device with the assumption that its components do not flex, there is no friction, and there is no wear.

What is an example of a 3rd class lever?

With third class levers the effort is between the load and the fulcrum, for example in barbecue tongs. Other examples of third class levers are a broom, a fishing rod and a woomera.

How do you find the IMA of a second class lever?

The input and output forces are in the same direction in a second-class lever. A second-class lever is a lever that has the output force between the fulcrum and the input force. The ideal mechanical advantage can be calculated by dividing the length of the input arm by the length of the output arm.

How do you calculate the IMA of a wedge?

The ideal mechanical advantage of a wedge is determined by dividing the length of the wedge by its width. The longer and thinner a wedge is, the greater its mechanical advantage.

How do you find the IMA of a block and tackle?

To calculate the mechanical advantage, we can either divide the weight of the object being lifted by the force required to lift it or we can divide the amount of rope we have to pull by the distance the object moves.

What is a mechanical lever?

What is a Lever? A lever is a simple machine made of a rigid beam and a fulcrum. The effort (input force) and load (output force) are applied to either end of the beam. The fulcrum is the point on which the beam pivots. When an effort is applied to one end of the lever, a load is applied at the other end of the lever.

Article first time published on

How can the mechanical work of a lever be measured?

Because levers operate by rotational torque, calculate mechanical advantage by using the arm lengths of the lever. Measure the distances between the fulcrum, or balance point of a lever and each end. Divide the length of the lever’s effort arm by the length of its resistance arm.

What lever means?

A lever is a handle or bar that is attached to a piece of machinery and which you push or pull in order to operate the machinery. … A lever is a long bar, one end of which is placed under a heavy object so that when you press down on the other end you can move the object.

What is the IMA of a wheel and axle?

Wheel and axle. The ideal mechanical advantage (IMA) of a wheel and axle is the ratio of the radii. If the effort is applied to the large radius, the mechanical advantage is R/r which will be more than one; if the effort is applied to the small radius, the mechanical advantage is still R/r, but it will be less than 1.

How do you find the AMA of a lever?

1. First, determine input force. Measure the input force that is being put into the system. …
2. Next, determine the output force. Measure the output force of the system. …
3. Finally, calculate the actual mechanical advantage. Using the formula we can find the actual mechanical advantage is 100 / 40 = 2.5.

Do worm gears increase torque?

Worm gears can be used to either greatly increase torque or greatly reduce speed. They are also the smoothest and quietest of the gear systems, as long as they are properly mounted and lubricated.

How do you calculate IMA of a screw?

Hence, the mechanical advantage of a screw is the ratio of the circumference of the screw head to the distance traveled by the thread after each revolution(pitch). In other words, IMA = 2*pi*L / P, where L is the radius of the screw head surface and P is the distance between screw threads(or pitch).

What do you mean by VR of a lever is 3?

Velocity ratio of a lever is 3 means distance travelled by effort is 3 times the distance travelled by the load. Efficiency of the pulley is 60% means 40% of the energy is lost in the machine due to the friction.

What kind of simple machine is a jackscrew?

Yes, the jackscrew is a nifty combination of several simple machines. It is a screw — connected to a clever system of levers that lifts the car.

What is the example of second class lever?

In a Class Two Lever, the Load is between the Force and the Fulcrum. The closer the Load is to the Fulcrum, the easier the load is to lift. Examples include wheelbarrows, staplers, bottle openers, nut cracker, and nail clippers. A great example of a Class Two Lever is a wheelbarrow.

What class of lever is a baseball bat?

In a third-class lever, the input force is in between the output force and the fulcrum. An example of this class of lever is a baseball bat.

How do you calculate total IMA?

In general, the IMA = the resistance force, Fr, divided by the effort force, Fe. IMA also equals the distance over which the effort is applied, de, divided by the distance the load travels, dr.

Which of these is a compound machine that is a lever and a wedge working together?

A pair of scissors is a compound machine consisting of levers and wedges.

What is input force?

The input force that you use on an inclined plane is the force with which you push or pull an object. The output force is the force that you would need to lift the object without the inclined plane. This force is equal to the weight of the object.

How do you calculate the force of a lever?

In a class one lever the force of the effort (Fe) multiplied by the distance of the effort from the fulcrum (de) is equal to the force of the resistance (Fr) multiplied by the distance of the resistance from the fulcrum (dr).

What's the difference between a simple machine and a complex machine?

Simple Machine: Any of various devices that function in a manner basic to any machine, such as a lever, pulley, wedge, screw, or inclined plane. Complex Machine: A device consisting of two or more simple machines working together. … You push a screw into a surface by turning it while pressing down on the head.

What is lever system?

A lever system is a rigid bar that moves on a fixed point called the fulcrum when a force is applied to it. Movement is made possible in the human body by lever systems that are formed by our muscles and joints working together. An understanding of the levers in the body helps us to understand how movement is possible.

What are the examples of lever?

Examples of levers in everyday life include teeter-totters, wheelbarrows, scissors, pliers, bottle openers, mops, brooms, shovels, nutcrackers and sports equipment like baseball bats, golf clubs and hockey sticks. Even your arm can act as a lever.

Is AMA less than IMA?

The mechanical advantage (MA) of a machine is the factor by which it multiplies any applied force. … In any real machine some of the effort is used to overcome friction. Thus, the ratio of the resistance force to the effort, called the actual mechanical advantage (AMA), is less than the IMA.

What is the difference between lever and pulley?

A lever is a bar with a balance point called the fulcrum. A garden shovel is an example. In a wheel and axle, the fulcrum is in the center. … A pulley is just what it looks like, a wheel and axle with a groove to hold a rope around the outside edge.

What's the difference between lever and lever?

In mechanics|lang=en terms the difference between lever and lever. is that lever is (mechanics) an arm on a rock shaft, to give motion to the shaft or to obtain motion from it while lever is (mechanics) an arm on a rock shaft, to give motion to the shaft or to obtain motion from it.

How many types of lever are there?

There are three types of levers: first class, second class and third class. The difference between the three classes depends on where the force is, where the fulcrum is and where the load is. In a first class lever, the fulcrum is located between the input force and output force.
