What is the hatch for roof

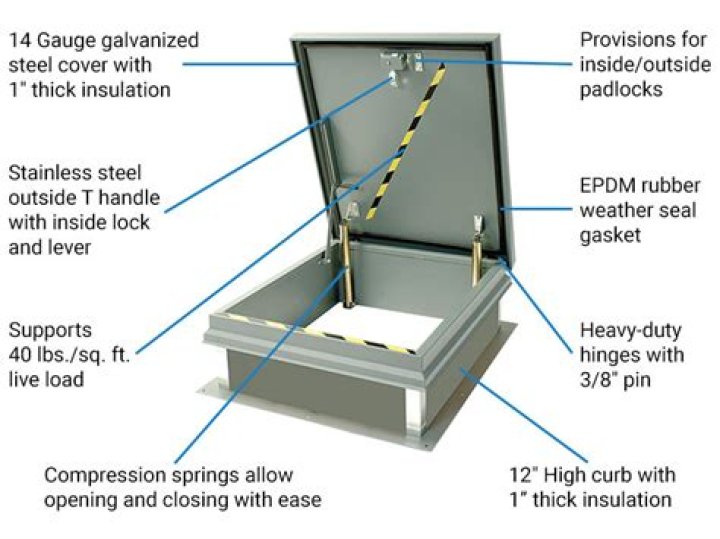

Roof hatches are horizontal doors that cover roof openings and provide access by means of an interior ladder, ship stair or service stair. The type and size of a structure usually determines the method of egress required.

What's the pitch of a roof?

Roof pitch (or slope) tells you how many inches the roof rises for every 12 inches in depth. An Example of a roof pitch would be a “6/12 pitch” which means that the roof rises 6 ” for every 12″ inward towards the peak (or ridge).

Where are sloping roof?

Sloping roofs are standard on all houses because water drains on a sloping roof better than it does on a flat roof. But, commonly, we see houses with sloping roofs in hilly areas.

How do you make a 2D roof in AutoCAD?

1. Draw a closed 2D polyline in the shape of the intended roof, in the location where you want to place the roof.
2. Open the tool palette that contains the roof tool you want to use. …
3. Right-click a roof tool, and click Apply Tool Properties to Linework and Walls.

How do you draw slope in AutoCAD 3D?

1. Select settings and create styles, layers, point groups, and description keys.
2. Click Home tab Create Ground Data panel Points menu Create Points – Slope Slope/Grade – Elevation .
3. Specify the start point by doing one of the following:

How do I turn off hatching in Revit?

Try going into the desired elevation, select everything and right click. From the shortcut menu select OVERRIDE GRAPHICS IN VIEW and choose ELEMENT from the flyout. In the following dialog you will see an option for surface patterns and you will see a master check box to turn the visibility on/off.

What type of drawing is a roof plan?

Typically, a roof plan is a simple 2D drawing which shows a bird’s eye view of your roof. Annotations can be made to further explain specific aspects, such as ridges and slopes, as well as the roof pitch. and are drawn to the same scale as an accompanying floor plan.

How do you install roof hatch access?

Installing the upstand on the roof. Ensure that the surface is completely level and install the roof access hatch so that it cannot twist or bend. Glue in the roof access hatch using roofing material. Attach the roofing material as far as the top of the water trap of the upstand.

What is roof plan in architectural drawing?

A scaled drawing, or diagram, of a planned roof development, is called a roof plan. … A roof plan often includes the dimensions of the roof, which includes the design of the roof, its shape and size, and the material placement — vents, drains, valleys, and slopes, etc.

What is a roof access?

In general, there are two main types of roof access: stairwells and doors that open onto a roof space, and hatches or windows that can open to provide sunlight, ventilation, and often physical access in case of needed repairs.

Article first time published on

How do you measure a roof hatch?

Roof hatch size is defined by measuring its inside frame opening, and the roof opening should be roughly the same as the hatch size. Some industry-standard sizes follow: 36 by 30 inches for ladder access. 30 by 54 inches for ship- or steep-stair access.

How do I figure out the angle of my roof?

The angle, or pitch, of a roof is calculated by the number of inches it rises vertically for every 12 inches it extends horizontally. For example, a roof that rises 6 inches for every 12 inches of horizontal run has a 6-in-12 pitch.

What is a 4/12 roof pitch?

A roof that rises 4 inches for every 1 foot or 12 inches of run is said to have a “4 in 12” slope. … The slope ratio represents a certain amount of vertical rise for every 12 inches of horizontal run. For example, a “4 in 12” slope can be expressed as the ratio of 4:12. A “6 in 12” slope is expressed as 6:12.
