What is the exposure index

The exposure index is a measure of the signal level produced by a digital detector for a given incident exposure transmitted through the patient, is proportional to the signal-to-noise ratio squared (SNR2), and is related to image quality.

What is exposure indicator in radiography?

The exposure indicator (EI) is a numerical. parameter used in computed radiography (CR) to inform operators about the amount of expo- sure to the imaging plate.

What does an S value exposure index represent?

S-values or “sensitivity” values represent the numeric value of exposure received by the receptors in the digital system. This represents a key value in monitoring that a quality radiograph is obtained with the least amount of dose to the patient.

What is an EI value?

Purpose: The exposure index (EI) value is recommended by international agencies as a method of monitoring radiation dose in computed radiography (CR), however the clinical use and impact has not been fully addressed in the literature.

What do exposure indicators numbers reflect?

A standard indicator which reflects the radiation exposure that is incident on a detector after every exposure event is appropriate. The detector exposure indicator is intended to reflect the noise levels present in image data.

Are the target exposure index and deviation index used efficiently?

Conclusion: The study shows that the EIT and DI are not used efficiently, regardless of equipment vendor or department characteristics.

Is exposure index the same as ISO?

ISO Sensitivity (or ISO speed) is a measure of how strongly an image sensor and/or camera responds to light. … Exposure Index (EI) is a camera setting derived from one or more of the Sensitivity measurements. It is used to determine the camera’s exposure in response to a light level measurement.

What are the different exposure indicators?

The exposure indicator has as many different names as there are vendors in the market. The names include S-number, REG, IgM, ExI and Exposure Index. Carestream’s computed radiography (CR) and digital radiography (DR) systems both reference their exposure indicator as the exposure index or EI.

What does high exposure index mean?

The concept is to use the optimal amount of radiation to provide a diagnostic image. If the index is too low, that might indicate that image quality is suffering. If the dose index is too high, that might imply use of more radiation than necessary for diagnostic imaging.

What is quantum noise in radiography?

Quantum noise, also called quantum mottle, is the main and the most significant source of noise in plain radiography. It is a random process due to fluctuations in the number of photons reaching the detector from point to point.

Article first time published on

What is overexposure in xray?

Overexposed images will have a distinct lack of quantum mottle while appearing ‘saturated’ or in extreme cases ‘burnt out’ whereby anatomy is completely obliterated from the radiograph.

What is the relationship between exposure and Sid?

Quantity FactorsQuality Factorsexposure timemAskVpkVpSID

What is the normal value of exposure index in Kodak Carestream?

Carestream (Kodak) CR A Carestream CR-85X processor exposed images should have an EI between 300-600.

What is a deviation index?

The deviation index (DI) measures the difference between how many photons should be reaching the image receptor in the relative image region for that particular study and the amount of x-ray photons that actually do reach the image receptor in the relative image region.

What is exposure time in xray?

Altering the time setting influences the quantity of x-rays and image density or darkness in intraoral radiography. The exposure time in panoramic imaging is fixed for a specific unit and the entire exposure cycle ranges from 16 to 20 seconds in length.

How is DAP measured?

The DAP is a surrogate measurement for the total amount of X-ray energy delivered to the patient, and reflects the dose within the radiation field and area of tissue irradiated. DAP is measured in centi-Gray centimeter squared (cGy × cm2).

Is ISO equivalent to gain?

In the F3, as with many other new cameras, increasing ISO is the same as adding gain, where +6 dB of gain equals double your ISO. So if your sensor’s native performance at 0 dB gain is 400 ISO, the +6 dB of gain gives you 800 ISO. That’s pretty easy math, and that rule of thumb works for many cameras.

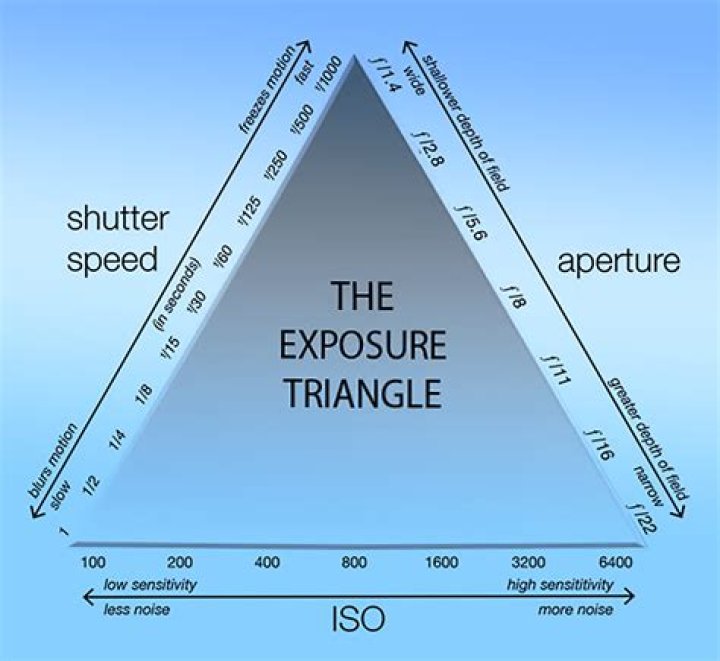

What ISO stands for camera?

ISO stands for the International Organization for Standardization — an organization that sets international standards for all different kinds of measurements. But, when in reference to your camera, the ISO is your camera’s sensitivity to light. ISO is displayed in a number like this: 100, 200, or 400.

What should ISO be inside?

• 100 or 200 best ISO for outside pictures on a sunny and bright day.
• 400 ISO for cloudy days, or indoors for window light portraits.
• 800 ISO for indoors without a flash.
• 1600+ ISO for really low light situations – that school play your kid is in.

What is exposure latitude in radiography?

Exposure latitude is the extent to which a light-sensitive material can be overexposed or underexposed and still achieve an acceptable result. This measure is used for digital and analogue processes, e.g. optical microlithography or photography.

What is exposure creep?

Purpose: Exposure creep is the gradual increase in x-ray exposures over time that results in increased radiation dose to the patient. It has been theorized as being a phenomenon that results from the wide-exposure latitude of computed radiography (CR) and direct/indirect digital radiography (DR).

What causes film fog?

Fogging may be due to many factors, including improper film storage conditions, accidental exposure to ionizing radiation, improper processing, or using film kept past its expiration date. The most common source of fog is poor darkroom lighting conditions.

How do you increase your CNR?

Thus CNR can be improved by suppressing the fat and myocardium signals surrounding the coronary arteries. Frequency (spectrally) selective prepulses are applied to saturate signal from fat tissue, thereby allowing visualization of the underlying coronary arteries.

How is CNR calculated?

Contrast-to-noise ratio (CNR) is just the ratio of the estimated contrast and noise: CNR = C/N.

What does a grainy XRAY mean?

If the detector is underexposed due to inadequate radiographic technique factors, even though the image can be amplified and rescaled to present a good grayscale rendition, the quantum mottle in the image is likewise amplified, resulting in a noisy and grainy image.

How do you know if a film is overexposed?

If a photo is too dark, it is underexposed. Details will be lost in the shadows and the darkest areas of the image. If a photo is too light, it is overexposed. Details will be lost in the highlights and the brightest parts of the image.

What happens if you increase Sid?

The source image receptor distance (SID), is the distance of the tube from the image receptor, affecting magnification. The greater the SID, the less magnification the image will suffer.

When does the Kilovoltage increase?

The beam quality is controlled by the kilovoltage. The kVp regulates the speed of electrons traveling from the cathode to the anode and determines the penetrating ability of the x-ray beam. When the kVp increases, the resulting x-ray beam is of higher energy and increased penetrating ability (Figure 5).

What is a lookup table in radiology?

A look-up table (LUT) is a series of mathematical equations that are used for post-processing in radiography. It is used to correct values using a mapping function.

What does receptor exposure mean?

Abbreviation: IR exposure. The quantity of ionizing radiation received by a radiologic device and used to produce a viewable image.

Which of the following describes the relationship between mAs and density?

4. Which of the following describes the relationship between mAs and density? … Whatever is changed in mAs directly impacts density.
