What is the density of OSB

Typical densities are 600 kg/m3 to 680 kg/m3.

Which is heavier OSB or plywood?

OSB is heavier than plywood and, when properly waterproofed and maintained, will generally lie flatter. OSB is also more consistent than plywood. Plywood is available in many plys and different levels of quality. OSB is usually more consistent across the board, meaning what you see is what you get.

Is OSB lighter than plywood?

While OSB (Oriented Strand Board) is generally cheaper than plywood, it is heavier and not as stiff as plywood and can result in soft squeaky floors under weight. The biggest complaint against OSB is that it doesn’t handle moisture very well so it is more suited for indoor use.

How much does an 18mm OSB weigh?

OSB Sheet Weight – Metric SizingOSB Sheet ThicknessApproximate OSB Sheet Weight (2440mm x 1220mm)18mm34.29 kg22mm41.91 kg25mm47.63 kg

Why is OSB so heavy?

Hardier trees tend to lend their wood chips to make OSB. A high-quality adhesive then bonds the wood chips together and seals them. The result is an extremely strong board that can take a lot of weight.

Is OSB stronger than regular plywood?

Osb is stronger than plywood in shear. Shear values, through its thickness, are about 2 times greater than plywood. This is one of the reasons osb is used for webs of wooden I-joists.

How much weight can a sheet of OSB hold?

3/8 OSB, 24/0 APA span rating, 30 psf allowable live load. 7/16 OSB, 24/16 APA span rating, 40 psf allowable live load. 15/32 OSB, 32/16 APA span rating, 70 psf allowable live load.

What is the density of plywood?

The density of plywood and LVL is approximately equivalent to the density of the timber species used to manufacture the product. The density of pine plywood is in the range 500 – 650 kg/m3. Eucalypt hardwood plywood density can exceed 900 kg/m3 depending on the timber species used.

Is OSB load bearing?

Due to its inherent strength (see below), OSB is particularly suitable for load-bearing applications in construction but it also has a wide range of other applications.

How much does a sheet of 11mm OSB weigh?

Depth11 mmLength2440 mmThickness11 mmWidth1220 mmWeight7.30 kg

Article first time published on

What holds screws better plywood or OSB?

Group 1 plywood, made from the strongest species of wood such as Southern Yellow Pine, holds screws better than OSB.

Is it better to use OSB or plywood for subfloor?

The National Tile Contractors Association and the Resilient Floor Covering Institute both recommend plywood for subflooring and underlayment, because it doesn’t have the risk of swollen edges that OSB does. Plywood also has a slight advantage in stiffness, which means that subflooring panels need not be quite as thick.

Is MDF stronger than OSB?

OSB is considered to be stronger than MDF. OSB is suitable for structural projects and withstands water, moisture, and weather conditions better than MDF. … While OSB and MDF are similar engineered woods, they have significantly different characteristics.

Will lumber prices go down in 2021?

Lumber will be strong through 2021 and this drop in lumber prices is great news for homebuilders and real estate developers alike if they choose to take advantage of their low rates now.

What is a good substitute for OSB?

Most builders are so comfortable with OSB wall sheathing that they never consider using an alternative material. In fact, a wide range of materials can be used to sheathe a wood-framed wall. In addition to OSB, builders can choose plywood, fiberboard, rigid foam, diagonal boards, and fiberglass-faced gypsum panels.

Will OSB come down in price?

The average new home uses more than 2,200 square feet of softwood plywood and more than 6,800 square feet of OSB (organized strand board aka particle board). Unlike framing lumber, which has declined in price in the past few months, OSB has gone up by nearly 500%.

How thick should floor OSB be?

The minimum thickness of plywood for subflooring is about 5/8 inch. Since it does not hold fasteners as well as plywood, OSB must be a little thicker, or at least 23/32 inch.

Can you use OSB for attic flooring?

If your attic joists won’t bear the weight necessary to finish out a living space but the engineer cleared them to support floor decking for light storage, you can install ½-inch plywood or oriented strand board (OSB) in 4-foot-by-8-foot panels over existing 16-inch OC joists.

How thick should plywood be to walk on?

Sizing the Plywood No matter what the spacing is on your ceiling joists, 3/4-inch plywood should be used if you plan on walking on it. If you plan on placing the plywood around the perimeter of the opening or door and using it only to store light boxes or materials, 1/2-inch-thick plywood should suffice.

What are the disadvantages of OSB?

Prone to swelling edges and telegraphing. “The major disadvantage of OSB is that if it gets exposed to significant amounts of water or moisture, the edges expand by up to 15% … especially if they are cut edges. This swell will then telegraph onto the shingles or some flooring,” according to PATH.

Why is OSB more expensive than plywood?

Oriented Strand Board, or OSB, has long been used as a low-cost alternative to plywood, but the product now fetches a higher price as increased demand and tight supplies lead to delivery delays and elevated construction costs in the United States and Canada.

Why have they changed from plywood to OSB?

Longer lengths – OSB panels can be factory-manufactured in lengths up to 24 feet, while plywood is limited by tree size to the 8- to 10-foot range. … Superior shear strength – Due to OSB’s thickness, its shear values are about twice those of plywood, which explains why it’s increasingly used for webs of I-joists.

How thick should roof OSB be?

Standard roof sheathing thickness is ½” to ⅝” thick. If you are using OSB for your roof deck, then ⅝” is the recommended thickness. For plywood, which is slightly stronger than strand board, ½” thick is appropriate. Another factor is how far apart your trusses or rafters are spaced.

Is OSB OK for roofing?

Both OSB and plywood panels can cut and installed on a roof using conventional roofing equipment. They have similar structural characteristics, and can be used interchangeably. … OSB is now the most-used sheathing and subflooring material for new roofs and roof replacements.

How good is OSB board?

The pros of OSB: It’s available in larger sheets than plywood. It’s thicker and heavier which is considered by some as an advantage and some as a disadvantage. It’s considered more environmentally friendly than plywood as smaller, younger trees can be used to produce it making it more sustainable.

What is the density of hardwood?

Density* rangeHardness485–> 965 kg/m3Very hard

Is plywood heavier than solid wood?

Plywood is lightweight For all its strength, plywood is surprisingly so much lighter than solid wood. That makes plywood even more perfect for furniture-making. Heavier solid wood, meanwhile, can prove to be rather unwieldy when crafting furniture or when using it for other commercial applications.

What is the density of balsa?

The density of balsa ranges from roughly 60 to 380 kg/m[superscript 3]; the large density variation derives largely from the fibers, which decrease in edge length and increase in wall thickness as the density increases.

What is 9mm OSB used for?

OSB Board | 9mm OSB can be used for both flat and pitched roofing projects and works well for sheathing in walls. The BBA classification permits use in a wide range of applications such as roofing and flooring in both commercial and domestic situations.

Can I use 11mm OSB for roof?

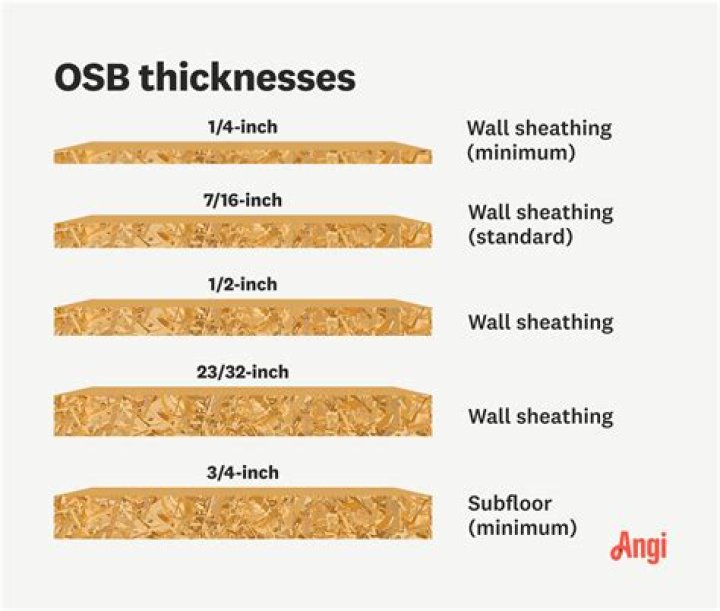

The thickness of OSB that you need varies on where it is used in a building. Typically 3/4″(18mm) for floors and 3/8″ (9mm) for walls and 1/2″ (11mm) roof. Also make sure that you get your supporting timbers at the correct spacing.

How much does a sheet of 12mm OSB weigh?

Density, mass and panel size Typical densities are 600 kg/m3 to 680 kg/m3. For example, a 2400mm × 1200mm × 12mm panel will weigh approxi- mately 20kg.
