What is tefzel insulation

Tefzel® is an electrical insulation that’s DuPont TM. Unlike other insulations, Tefzel® has been created using unique amounts of heat and pressure for additional attributes. Tefzel® is an ethylene-tetrafluoroethylene (ETFE) insulation and is designed for corrosion resistance and strength over a wide temperature range.

What is ETFE wire?

What is ETFE? ETFE, also known as, ethylene tetrafluoroethylene copolymer, insulated wires, and cables display excellent material toughness, electrical properties and good resistance to heat, flame, and chemical radiation.

How many amps can 22 gauge wire?

The maximum amperage for a 22-gauge wire is . 92 amps for power transmission, according to the Handbook of Electronic Tables and Formulas for American Wire Gauge. For amperage higher than . 92 you will require a lower-gauge, or thicker, wire.

What is 4 AWG wire used for?

This wire is 4 AWG, good for 95 Amp when used in conduit with less than 3 conductors. This wire is rated for use in dry or wet locations, raceways, or conduit. It can be used outside exposed to the weather as well, though the insulation is not 100% UV-proof and installation in conduit is recommended.

Who manufactures tefzel wire?

Manufactured by DuPont™, Tefzel® is a modified ETFE (ethylene-tetrafluoroethylene) fluoropolymer known for its mechanical toughness and outstanding chemical inertness.

What is the difference between PTFE and ETFE?

ETFE vs PTFE PTFE is constructed from carbon and fluorine atoms whereas ETFE is built from carbon, fluorine and hydrogen. Giving advantages to using both. The tensile strength of ETFE can be as much as 38% greater than PTFE, meaning ETFE material can be subjected to harsher operating conditions than its counterpart.

What is XL ETFE?

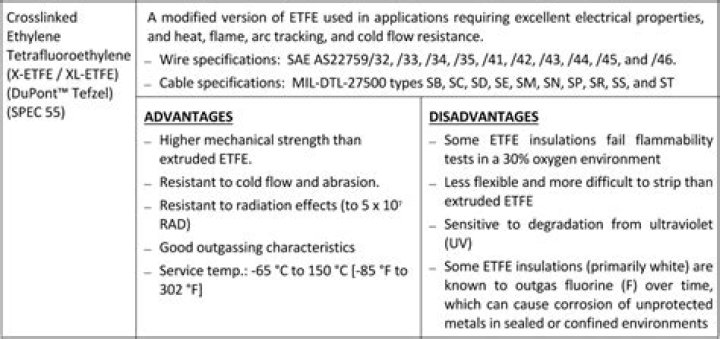

XL-ETFE is the acronym for Cross-Linked Extruded Ethylene Tetrafluoroethylene. It is wire insulation that is used primarily in avionic and airframe applications. … Cross-linking also creates increased stability at higher temperatures. The MIL-Spec slants that use XL-ETFE are M22759/32-/35.

What is PTFE wire?

Polytetrafluoroethylene (PTFE) is a fluorocarbon polymer insulation material that allows wiring systems to be used and operated in the most demanding of environments. PTFE is resistant to lubricants and fuels, very flexible, plus it has excellent thermal and electrical properties.

What is ETFE solar panel?

ETFE, or ethylene tetrafluoroethylene, is a fluorite-based plastic that can easily withstand high temperatures while promoting solar efficiency. … This means solar panels will require much less maintenance than non-ETFE panels as they don’t need to be regularly cleaned to reach optimum performance.

Which is bigger 4 AWG or 6 AWG?

The larger the AWG number or wire guage, the smaller the physical size of the wire. The smallest AWG size is 40 and the largest is 0000 (4/0). AWG general rules of thumb – for every 6 gauge decrease, the wire diameter doubles and for every 3 gauge decrease, the cross sectional area doubles.

Article first time published on

What is the difference between 4 0 and 4 AWG?

This can be very complex but I will try to simplify #4 awg wire is quite a bit smaller than 4/0 wire. The difference is in the size, (circular Mils) and the amount of current that the wire is able to safely carry.

What is 4 AWG in MM?

American Wire Gauge (#AWG)Diameter (inches)Diameter (mm)20.2586.5430.2295.8340.2045.1950.1824.62

What does 22 AWG stand for?

AWG or American Wire Gauge is the US standard measure for the diameter of electrical conductors. … It means the higher the AWG number is, the smaller the wire diameter is. Our Belden cables and the pairs in instrumentation cable are some of the electrical cables where the conductor size is expressed as an AWG figure.

What AWG 22?

A 24 AWG wire has a diameter of . 0201 inch, and a 22 AWG wire has a diameter of . 0253 inch.

How many watts can 22 gauge wire handle?

For example, a 22 gauge, solid-core wire might be able to handle something like 5 amps. Now, if that’s 5 amps at 1 volt, then it’s 5 watts. But if it’s 5 amps at 12 volts, then it’s 60 watts.

What type of wire is used in cars?

PVC automotive wire is typically found in under-hood or cabin applications. It has insulation that is highly durable and resistant to oil, grease, and acids, making it ideal for automotive, truck, trailer, marine, construction, and many other automotive electrical connections.

What is ETFE material?

ETFE (Ethylene tetrafluoroethylene) is a lightweight material that is a superb alternative to glass. It is a popular choice for applications where high light and UV transmission are required, such as: Large-span roofing.

What is an ETFE roof?

ETFE roofs or canopies allow the transmission of almost the entire UV spectrum (95 percent). This makes them ideal for buildings containing plants that need UV light for photosynthesis. If full exposure to the sun is not required, ETFE plastic foil can include a number of frit patterns within the material.

Is tefzel a Teflon?

Tefzel™ ETFE Tefzel™ ETFE has nearly the same chemical resistance performance as Teflon™ PTFE and offers superior abrasion resistance, strength, and stiffness. It is formed using thermoplastic molding, including extrusion and rotational molding and lining.

Is tefzel the same as Teflon?

ETFE, or ethylene tetrafluoroethylene, consists of carbon, fluorine and hydrogen, has a higher tensile strength than PTFE, though PTFE will stretch before breaking. It is also more heat resistant, melting at 327°C, which is 60°C more than ETFE. … It’s commonly known as Teflon®, a non-stick coating.

Is PTFE and Teflon the same thing?

Discovered in 1938, Teflon was developed by the DuPont Co and managed by a spin-off of the company known as Chemours. … Teflon is a synthetic polymer containing carbon and fluorine called polytetrafluoroethylene. That’s right, Teflon is PTFE but by another name.

What are the 3 types of solar panels?

What are the 3 Types of Solar Panels? The three different types of solar panels are monocrystalline, polycrystalline, and thin-film solar panels. Each of these types of solar cells is made in a unique way and has a different aesthetic appearance.

Is ETFE waterproof?

Its structure is: ETFE film + EVA + solar cell + EVA + PCB board. ETFE solar panels are waterproof, UV-resistant, lightweight and have a long service life (more than 5 years).

At what temperature do solar panels work best?

Solar panels are generally tested at about 77°F and are rated to perform at peak efficiency between 59°F and 95°F. However, solar panels may get as hot as 149°F during the summer. When the surface temperature of your solar panels gets this high, solar panel efficiency can decline somewhat.

What is silicone wire used for?

Medical device manufactures use silicone insulated wire and cable because can be used in an autoclave, it’s chemical resistance and ultra flexible nature. Silicone is widely used in applications that include medical robotics, implantable, sensors and handheld devices just to name a few.

Is PTFE wire flexible?

PTFE coated wire is suitable for a wide frequency range and has a superb flex-life.

Where is Teflon wire used?

Teflon wires are suggested for use in miniature cable applications and internal wiring-soldering applications where insulation melting is a significant concern. This wire insulation is better equipped to defy oil, oxidation, heat, sunlight, and flame, while also remaining flexible at low temperatures.

What is 6 AWG wire used for?

6 gauge and larger wires are usually used in the battery and starting systems of vehicles. The most common uses tend to be in the installation of large home appliances such as hot tubs and jacuzzis.

What is the expansion of AWG?

American Wire Gauge (AWG) is the standard way to denote wire size in North America. In AWG, the larger the number, the smaller the wire diameter and thickness. The largest standard size is 0000 AWG, and 40 AWG is the smallest standard size.

What is bigger 6 gauge or 8 Gauge?

The general rule of thumb is that the smaller the gauge number, the thicker the cable. The standardized method of measuring the thickness of a cable was established in 1857 in the United States.

What size wire do I need for 200 amp service?

Wire Sizes For 200 Amp Service Wiring 200 amp service requires either #2/0 copper wiring or #4/0 aluminum or aluminum clad wiring. Which wire used is determined by the voltage drop and length of the wiring. Many electrical contractors opt to use #4/0 aluminum or copper-clad wire.
