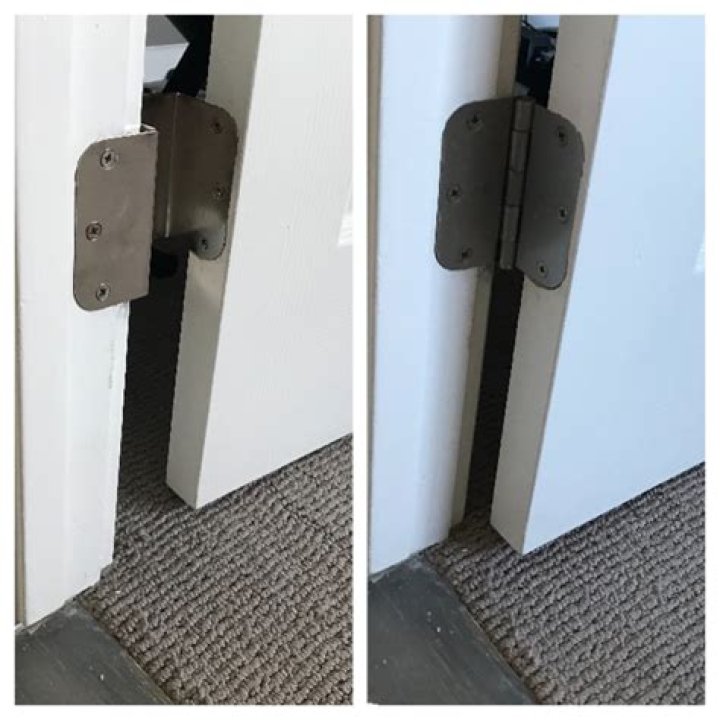

What is swing clear hinge

Swing clear hinges are used to swing the door out of the clear opening of the frame when the door is open approximately 95 degrees (the door will project slightly past the frame stop if open to 90 degrees).

What are swinging door hinges called?

When it comes to types of door hinges for swinging cafe doors, the spring hinge is common. These hinges don’t offer a hold open feature. The spring hinges come in a variety of size from 3″-8″. We stock Swinging Cafe Doors spring hinges, and also Bommer Industries Inc. Spring Hinges.

What are the different types of hinges?

• Ball Bearing Hinge. The ball bearing hinge has lubricated bearings between the hinge’s knuckles to reduce friction caused by heavy doors. …
• Spring-Loaded Butt Hinge. …
• Barrel Hinge. …
• Concealed Hinge. …
• Overlay Hinge. …
• Offset Hinge. …
• Piano Hinge. …
• Strap Hinge.

Is there a hinge that swings both ways?

Double-action, spring-loaded hinges allow doors to swing in both directions, as Hinge Outlet describes. You’ve probably seen them in restaurants or commercial buildings where traffic flows in both directions.

What is a NRP hinge?

NRP (non-removable pin) hinges have a set screw in the barrel that is only accessible when the door is open. This security feature deters someone from removing the hinge pin and the door. Ball bearing hinges are recommended for heavier doors, doors over 2″ thick, doors over 40″ wide or doors which use a door closer.

What are the 4 styles of hinge called?

• Corner hinges. These are typically used on metal cabinets and machine covers and sit flush to the surface. …
• Lift-off hinges. …
• Offset hinges. …
• Piano hinges. …
• Leaf hinges. …
• Concealed hinges. …
• Side hinges. …
• Weld-on hinges.

How does a swing clear door hinge work?

You can install swing clear hinges in place of standard hinges. When the door is open, these hinges move the door out of the opening, creating an unobstructed opening that makes it easier to maneuver walkers and wheelchairs through the doorway.

What is the strongest type of hinge?

If you’re looking for door hinges for a heavy or frequently used door, mortise hinges make a stronger and more reliable choice. Mortise hinges are more popular among exterior doors, as are mortise locks.

How do I know what kind of hinge I need?

The construction of your cabinet – most notably, the overlay of the face frame and the cabinet door – determines which cabinet hinge you need. Similarly, where your drawer slides need to be mounted dictates what type of drawer slide you need.

What is a butler door?

What is A Butler Door? A “Butler Hinge” is also called a “Swinging Door Hinge,” and a “double action floor hinge.” It is a floor mounted hinge with spring tension that allows a door to swing in or out of a room and return to the closed position when let go.

Article first time published on

Can any door be a swinging door?

When you decide to install a door to close off the kitchen from the rest of your home, consider hanging a swinging door. You can turn any slab door into a swinging door using a pivot hinge, allowing you to match the door to the existing interior doors in your home.

What is the capstan on hinge?

A traditional door hinge has components like a capstan that allow it to rotate and allow a door to open and close. Double-action hinges are different because they let doors swing in both directions.

What is a piano hinge used for?

Piano hinges get their name from their original purpose: to secure the lid of a piano to the piano-body, itself. Depending on the style of the piano, piano hinges allow the lid to fold backwards in a rest, or open, position as well permitting the front of the lid to fold when playing while the lid is down.

What does Mortise hinge mean?

Mortise hinges are the ones where the hinge leaves are designed to lie on the plate or mortised into the door frame or jamb. It is hidden with the door surface, and makes it look smooth and allows for a wider throw of the door when opening.

Should a door have 2 or 3 hinges?

The general rule used to determine the number of hinges is: Every door should be provided with at least one hinge for every 30 inches in height or portion thereof; however, more hinges may be required per chart below. For example, a 90″ door needs three hinges and a 91″ door needs four.

Do all hinges have removable pins?

Most all the hinges come standard with removable pins. Non removable pin hinges are available with almost any Emtek or PHG hinge upon request.

How much clearance do you need for a hinge?

In general, you’ll want to use one hinge for every 30 inches of door height.

How many degrees can a door swing?

Degrees of Swing Typical swings are at 90 or 105 degrees. Door hardware may require that a door swing to only 85 degrees to prevent exterior handles from hitting a wall. Similarly, hardware on the push side of the door may require that the door swing further than 90 degrees to clear the opening of protruding hardware.

How are swing clear hinges measured?

Know Your Way Around A Hinge: Hinges are measured from top to bottom and side to side. This bit is pretty straightforward. You’ll then need to be able to discern radius corners from square corners.

What is a leaf hinge?

A hinge leaf is the flat part of the hinge that revolves around the pin and knuckle of the hinge. The leafs attach to the objects you wish to join, such as a door and a wall, and provide the leverage that hinge joints need to rotate.

What fixing should you use to connect a hinge to a cabinet door?

Use a power drill to drive screws into the screw holes to secure the plate in place. Then, attach the other mounting plate to the cabinet in the same way. Use the screws that came with the hinges or use #6 wood screws.

What is the difference between inset and overlay hinges?

Inset Cabinet Doors are set into the cabinet frame and fit flush with the face of the cabinet when closed. … Full Overlay Doors give a similar appearance to that of inset doors without the higher cost. They completely cover the cabinet face, providing the flat cabinet front so desired in inset cabinets.

Which door hinge supports the most weight?

Hinges that carry the weight of a door and which are affected by the greatest efforts are always two: the top hinge holds up in traction (F1); the bottom hinge holds up in thrust (F2); both hold up the vertical thrust, i.e. the force of gravity (G).

How much weight can a hinge hold?

Door Hinge TypeMedium FrequencyHigh FrequencyResidential duty hinge400 pounds200 poundsCommercial Duty Hinge600 pounds400 poundsHeavy duty hinge1000 pounds600 poundsCabinet Doors~ 80 pounds~ 80 pounds total

What is the best hinge for door?

• Amazon Basics Rounded Door Hinge.
• Design House Door Hinge.
• JQK Overlay Cabinet Door Hinges.
• Kesler Oil Rubbed Door Hinges.
• Hager Medium Oil-Rubbed Bronze Door Hinges.
• KNOBWELL Door Hinges.
• Houseables Self Closing Door Hinges.

What is a double swing door?

Definition of double-swing door : a door with hinges that permit it to swing either in or out.

What is a split door?

A Dutch door. A Dutch door (sometimes called a double hung or half door) is a door that’s split in half horizontally, allowing the top half to open while the bottom half stays shut. But secure the bolt to hold the two halves together and it operates like a normal door. Why is this a thing, you ask?

What is a swinging kitchen door called?

A double acting door, also known as a double swinging door or impact traffic door, is a single door or a pair of doors in which the door(s) is able to swing in both directions.

Can a piano hinge be cut?

Another good thing about piano hinges is that you can cut them at any length you want. This will help you match the door assembler to the door more accurately.

How do hinges work?

A hinge connects two bodies, usually one fixed and one moving, which allows angular movement along one axis while preventing any translation and rotation on the other two axes. There are several types of hinges available each with intended application.
