What is supply air in HVAC

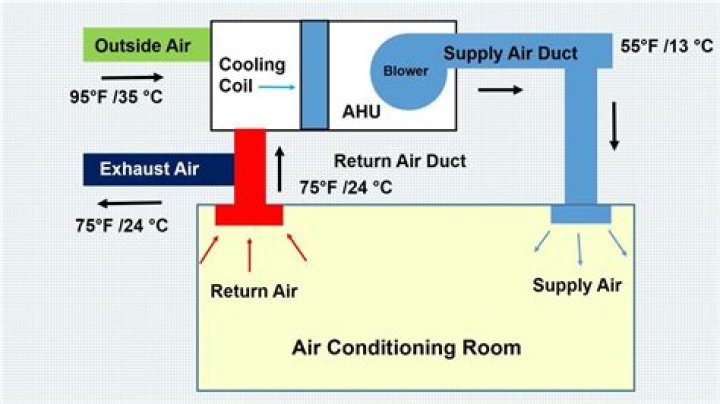

Supply Air. Supply Air. Supply air containing at least the minimum volume of outside air is filtered and conditioned to the required temperature and humidity. It is then delivered by the AHU to an underfloor plenum, traveling through a shorter distance of ductwork than for ceiling-based systems.

What does supply air mean?

The delivery of cargo by airdrop or air landing. Dictionary of Military and Associated Terms.

What is supply air on thermostat?

Supply Air Temperature Reset is a long name for a simple strategy to cut energy costs. … Cooling air at 95°F down to 65°F on a hot day requires energy, and to get the same air to 60°F or 55°F takes more energy. The colder you make it the more energy it takes.

What is supply and return air?

Supply vents: These are the vents that blow air into each room. The conditioned air goes from your air conditioner or furnace, travels through the ductwork and exits out the supply vents. … When an HVAC system delivers air to a room, it increases that room’s air pressure. Return vents exist to remove the extra air.

What is supply air temperature in HVAC?

The current standard supply air temperature is considered to be 55°F [12.8°C] and evolved to this temperature to allow space relative humidity in the range of 50% to 60%, while maximizing chilled water systems and chiller efficiencies.

What is on coil temperature?

In your example above, for the indoor coil, the on coil temp would be 24 degrees for a recirculating unit and 45 degrees for a 100% fresh air unit… The off coil temp should then ideally be around 10 degrees below your room temp i.e. 14 degrees (assuming we are talking cooling and not heating…).

Is discharge air the same as supply air?

Supply Air Temperature is the temperature of the air just after the evaporator/heat exchanger. Discharge Air Temperature is the temperature of the air exiting the registers (vents).

How many supply air vents do I need?

Generally, the size of your home determines how many vents you will need per room. If your room is larger than 100 square feet, you will need more than one vent (at least two) to really get adequate airflow to the room. If the room is smaller, you only need one.

What is a supply air register?

Supply register. Individual rooms in a home generally have one or more supply vents with louvered covers called registers. This kind of cover typically has a built-in damper that opens and closes with either a roller or lever control.

What is the duct?

Definition of duct (Entry 1 of 2) 1 : a bodily tube or vessel especially when carrying the secretion of a gland. 2a : a pipe, tube, or channel that conveys a substance. b : a pipe or tubular runway for carrying an electric power line, telephone cables, or other conductors.

Article first time published on

How can you tell the difference between supply and return ductwork?

Supply vents are usually found high up on the walls in your home, or on the ceiling. Return Vents: These air vents suck air from the rooms in your home back into your HVAC system. They are typically larger in size than supply vents and you will not feel air blowing out of them.

How do you calculate air temperature and supply?

In this case, having already determined the air mass flowrate from the cooling load as 0.62kg·s-1 the heating supply air temperature will be θSH= θR + (ΦSH/Cp) = 19 + [1.9/(0.62 x 1.012)] = 22ºC.

What is return vent?

When your HVAC system blows air into your home, that changes the air pressure inside. The excess air needs somewhere to go, and that spot is the return vent. The return vent is usually bigger than your supply vents because it’s how the air handler sucks air into the HVAC system.

Does every room need a heat vent?

Generally, the square footage of each room will determine the number of vents you need per room, because the influence of one vent will be altered when the room is larger than a certain square footage. … However, if the room is smaller than that, then it means you will only need one vent there.

What does HVAC stand for?

Defined: HVAC stands for Heating, Ventilation, and Air Conditioning. HVAC refers to the different systems used for moving air between indoor and outdoor areas, along with heating and cooling both residential and commercial buildings.

What is the temperature in Ahu?

The supply air temperature is typically set at 55 F (13 °C) to control humidity in the space. However, dehumidification is not necessary when the outside air is dry. Meanwhile, the space may have less cooling load due to envelope heat loss and/or occupant schedule changes.

Why is the evaporator used?

Explanation: Evaporator is used to convert liquid refrigerant into vapor refrigerant by absorbing heat. The liquid coming from the expansion valve is converted into vapor and forwarded to the compressor for compression. Evaporator gives the refrigeration effect.

What is DX cooling coil?

A DX unit uses refrigerant-based cooling and cools indoor air using a condensed refrigerant liquid. Direct Expansion means that the refrigerant expands to produce the cooling effect in a coil that is in direct contact with the conditioned air that will be delivered to the space.

How do you calculate cooling coil capacity?

Using the energy equation of Q = ṁ x Cp x ΔT we can calculate the cooling capacity. We add 273.15K to the celcius to convert it to units of Kelvin. The Specific heat capacity (Cp) is measured in units of kJ per kg per Kelvin. This gives us a final answer of Q = 2,500kW of cooling.

What is an air supply duct?

Ducts are conduits or passages used in heating, ventilation, and air conditioning (HVAC) to deliver and remove air. The needed airflows include, for example, supply air, return air, and exhaust air. Ducts commonly also deliver ventilation air as part of the supply air. … A duct system is also called ductwork.

Where is the supply register?

Supply register vents should be in every room as well. Located on the outer walls, under windows, in the ceiling, or on the floor, placement depends on the heating or cooling system as well as the construction of the home. Supply vents help change the room temperature to your desired heat or cool setting.

What is supply air diffuser?

A supply air diffuser is a diffuser found in a ventilation system whose function is to allow for the flow of air from the outside into the room. This is by allowing air to flow out of the ventilation system into the room.

Is too much return air bad?

Can an air return be too big? No, an air return cannot be too big, except in extreme cases where a closed room is temporarily under negative air pressure. Return vents maintain air pressure, filter out debris, and are critical to the efficient operation of any HVAC system.

Should return air vents be high or low?

For optimal efficiency, it’s ideal to have return registers installed. To ensure efficiency during the cooling season, your home should have high registers. High return registers draw hot air that rises to the ceiling back into the system to repeat the cooling cycle.

What happens if there is not enough return air?

If there is not enough return air available, your HVAC system will not heat or cool properly. … If not enough air is brought back, your HVAC system will not be able to keep up with temperature demands. In some cases, two returns may be necessary to provide enough return air.

What are the 4 types of duct systems?

Namely, flexible ductwork, rigid ductwork, and semi-rigid ductwork. We’ve compiled information on each of these duct systems. These ducts are typically tube-shaped and made of a wire coil covered with a bendable, durable plastic, and surrounded by insulation.

What is a damper do?

The sole purpose of the dampener is to reduce the vibrations off the racquet stringbed. Players that like vibration dampeners mainly use it because it decreases the “ping” sound the ball makes at impact. For many players this is more of a mental purpose than a physical purpose.

What type of metal is used for ductwork?

Made of galvanized steel or aluminum, rigid sheet metal is the most common type of ductwork. The thick, solid wall makes the duct very durable. The interior is known to trap dust and other particles, but the smooth surface is generally easy to clean.

What is the difference between a duct and a vent?

Laypeople sometimes refer to it as “vent cleaning,” though this term is a little reductive: air ducts are the vast system of (usually) metal tubes that run from your furnace throughout your home, distributing heated or cooled air; vents are simply the point where the ducts open into the house.

Can you block a supply vent?

When you block a supply vent, air still pushes against it. This constant push of air to a blocked air vent can create an increase in pressure, and when combined with inadequate airflow, it can cause damage to your HVAC system’s heat exchanger.

Do all homes have return air vents?

Does Every Room Need Air Return Grilles? While it is a myth that air return grilles are required in each and every room in the house, it is definitely necessary to have more than one of these grilles installed at strategic places in the house. The most important place to have these would be the bedroom.
