What is Snells law answer

Snell’s law states that the ratio of the sine of angle of incidence in the first medium to the sine of angle of refraction in the second medium is a constant for a given pair of media and for a given wavelength of light. This constant is called refractive index.

What is Snell's law class 10?

The laws of refraction or Snell’s laws (class 10) states: … For a given pair of media, the sine value of the angle of incidence (denoted by sin i) divided by the sine value of the angle of refraction (denoted by sin r) is constant, which is known as the refractive index of the medium.

What is Snell's law class 8?

Snell’s law gives the degree of refraction and relation between the angle of incidence, the angle of refraction and refractive indices of a given pair of media. We know that light experiences the refraction or bending when it travels from one medium to another medium. Snell’s law predicts the degree of the bend.

What is Snell's law class 12?

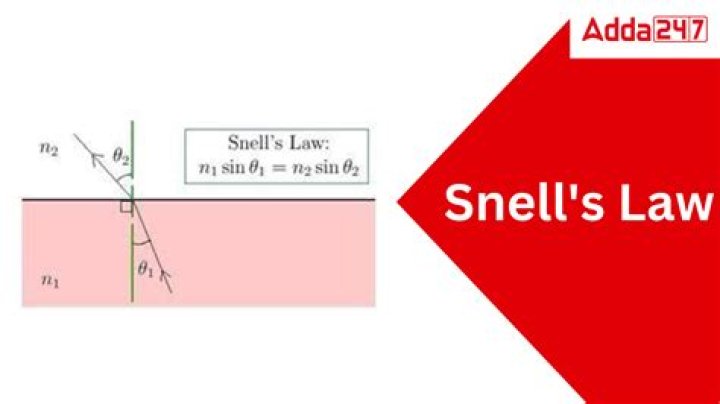

The Snell’s law states that μisini=μrsinr. Here, μi is the refractive of the medium in which the light ray is incident, μr is the refractive index of the medium in which the light ray enters after refraction. i and r are the angles of incidence and refraction as shown.

What is Snell's law and why is it important?

Snell’s Law is especially important for optical devices, such as fiber optics. Snell’s Law states that the ratio of the sine of the angles of incidence and transmission is equal to the ratio of the refractive index of the materials at the interface.

What is Snell's law explain with diagram?

Snell’s law (also known as Snell–Descartes law and the law of refraction) is a formula used to describe the relationship between the angles of incidence and refraction, when referring to light or other waves passing through a boundary between two different isotropic media, such as water, glass, or air.

How is Snell's Law calculated?

1. Find the index of refraction of air. …
2. Find the index of refraction of glass. …
3. Transform the equation so that the unknown (angle of refraction) is on the left-hand side: sin(θ₂) = n₁sin(θ₁)/n₂ .
4. Perform the calculations: sin (θ₂) = 1.000293 * sin(30°) / 1.50 = 0.333 .

When was Snell's law discovered?

Open any physics textbook and you’ll soon come across what English-speaking physicists refer to as “Snell’s law”. The principle of refraction – familiar to anyone who has dabbled in optics – is named after the Dutch scientist Willebrørd Snell (1591–1626), who first stated the law in a manuscript in 1621.

What is n1 and n2 in Snell's law?

The angle that the incident, reflected, and refracted rays make with the surface normal are called the angles of incidence, qi , reflection, qr, and refraction, qt, respectively. The refractive index of medium 1 is n1 and of medium 2 is n2.

What is lateral displacement class 10?

Lateral displacement is the perpendicular distance between the incident ray and the emergent ray.

Article first time published on

What is Snell's Law * In topper?

Hence the Snell’s law of refraction predicts that the light ray always deviates more towards normal in the optically denser medium (medium of higher refractive index) and away from the normal in the optically rarer medium (medium of lower refractive index).

What is critical angle Class 12?

Critical angle : When light ray travelling from denser medium to rarer medium, then the angle of incidence for which angle to refraction in air is 90∘ is called critical angle. … When the agle of incidence is further increased, the ray is not refracted but is totally reflected back in the denser medium.

What is sin I over sin R?

When light is travelling from air to a denser medium, the angle of incidence and angle of refraction are related by the ratio sin i / sin r = n whereby n is the refractive index of the denser medium.

How did Snell discover refraction?

Snell discovered that a beam of light would bend as it enters a block of glass, and that the angle of bending was dependent upon the incident angle of the light beam. … In 1621, Snell found a characteristic ratio between the angle of incidence and the angle of refraction.

Which Ray obeys Snells law of refraction?

The e-ray obeys the extension Snell’s law because the refractive index of e-ray is changed with the angle of wave vector and optical axis. The propagation of e-ray in the uniaxial crystal is relevant to not only the refractive index of isotropic media, the refractive index of uniaxial crystal but also optical axis.

What is the highest speed of light?

But Einstein showed that the universe does, in fact, have a speed limit: the speed of light in a vacuum (that is, empty space). Nothing can travel faster than 300,000 kilometers per second (186,000 miles per second). Only massless particles, including photons, which make up light, can travel at that speed.

How do you find sin i and sin in R?

1. Work out the sine of angle i. sin 55 = 0.819.
2. Work out the sine of angle r. sin 33 = 0.545.
3. Divide sin i by sin r. refractive index = sin i ÷ sin r. refractive index = 0.819 ÷ 0.545 = 1.50. A practical demonstration of how Pyrex seems to disappear in vegetable oil. Page 4 of 4. Glossary.

What is Snell's law class 10 Brainly?

Answer : Snell’s law states that : The ratio of Sine of angle of incidence to the Sine of angle of refraction is a constant, for the light of a given colour and for the given pair of media.

What is a refracted ray?

Similarly, the refracted ray is a ray (drawn perpendicular to the wavefronts) that shows the direction that light travels after it has crossed over the boundary. In the diagram, a normal line is drawn to the surface at the point of incidence. This line is always drawn perpendicular to the boundary.

What are transmitted rays?

When a ray of light impinges on a surface where two different materials meet, part of the ray is reflected and part of it is transmitted. If the ray is perpendicular to the surface, then the incident ray, the reflected ray and the transmitted (refracted) ray all lie along the same line (i.e they are collinear).

Which one of the following is Snell's law?

Notes: The ratio of sine of angle of incidence to the sine of angle of refraction is a constant, for the light of a given colour and for the given pair of media. This law is also known as Snell’s law of refraction.

What is Snell's law in which situation refraction not occur when of light Travelling from one medium to another medium explain?

When light passes from one medium to another, refraction does not happen under any one of the given conditions: If the ray is incident normally, then Angle of incidence = Angle of refraction = 0. So, there will not be any refraction. If both media have the same refractive index, then also refraction will not occur.

What is greater optical density?

Diamond: the refractive index of diamond is 2.42, that is highest. The optical density is directly dependent on the refractive index. Thus, the diamond is the material that has maximum optical density.

What is the refractive index of glass?

The refractive index of glass is 1.5.

What is emergent ray class 10?

1 Answers. Emergent ray is the light ray that comes out after being reflected by a mirror or after being refracted through a lens.
