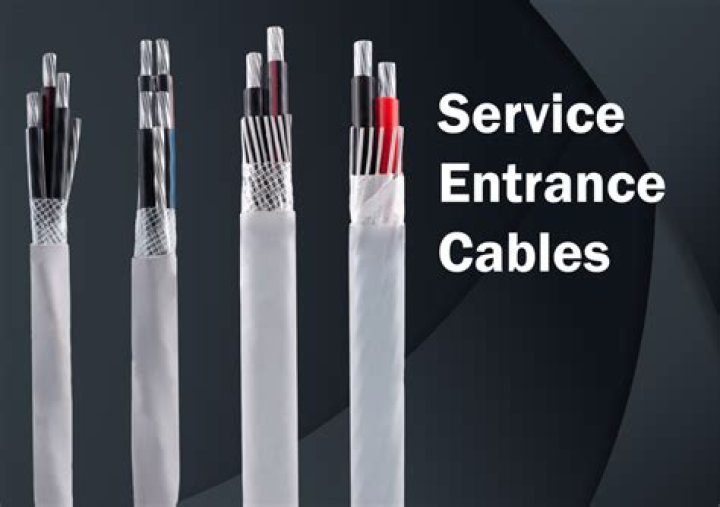

What is SEU cable used for

-SEU cable is primarily used as panel feeder in multiple unit dwellings and for branch circuits. Maximum operating temperature is not to exceed 90°C in wet locations. Voltage rating is 600 volts.

What type of wire is in Seu?

Southwire® style SEU cable is constructed with sunlight resistant Type XHHW-2 conductors or Type THHN/THWN conductors. Copper conductors are annealed (soft) copper.

What size wire is 200 amp Seu?

Wiring 200 amp service requires either #2/0 copper wiring or #4/0 aluminum or aluminum clad wiring.

Is Seu cable rated for direct burial?

Type SE cable, containing two or more conductors, is permitted to have one conductor that is uninsulated. Types USE and USE-2 cables are designed and listed for underground installations, including direct burial in the earth and are available in both single-conductor and multiconductor cables.

What are service wires?

Definition: The conductors (electrical cable with multiple wires) that connect and carry the electrical current the service conductors (drop or lateral) above ground to the service equipment of the building. It can also be used as a panel feeder and in branch circuits.

What is URD wire?

Underground residential distribution wire (URD) is a specialty aluminum wire intended for use in residential construction and light to medium duty commercial applications. … This durable wire is often the go-to solution to deliver power from a pad-mounted transformer to the service entry or meter of a given structure.

How do you secure a ser cable?

Nonmetallic-sheathed cable shall be supported and secured by staples; cable ties listed and identified for securement and support; or straps, hangers, or similar fittings designed and installed so as not to damage the cable, at intervals not exceeding 1.4 m (4½ ft) and within 300 mm (12 in.)

What does use 2 wire stand for?

USE-2 cable stands for Underground Service Entrance cable. USE-2 cable can be used underground since it is able withstand pressure and is resistant to other elements such as sunlight (black only), oil and gas. … USE-2 can be used as RHW-2 or RHH cable at temperatures up to 90°C in wet or dry locations.

What is UF wire?

”UF” stands for underground feeder; rated for in-ground and damp-area installation. Looks like NM-B cable but the wires are embedded as a group in solid thermoplastic (rather than individually encased in flexible thermoplastic).

Can you put SEU cable in conduit?

SE cables simply can’t be buried, conduit or no conduit.

Article first time published on

Can service entrance cable be buried?

Types of Direct Burial Cables The most common types of direct burial cable used in residential projects are underground service entrance (USE) and underground feeder (UF). Type USE cable is usually black and is most often used for buried lines that bring power from the utility’s transformer to individual houses.

What size wire is needed for 100 amps?

When it comes to the lines connecting master and secondary panels, where the line will carry as much as a full 100 amps, use a 2-gauge non-metallic sheathed electrical cable. The cable must contain one or two hot wires depending on your needs, one neutral wire, and one ground wire. Each wire should be 2-gauge in size.

What wire goes from meter to panel?

Electrical wire Based on the current and voltage rating of the meter and breaker, #4 size AWG copper wire is the highly suggested type and size of wire. This is to provide efficiency in conductivity; it will also prevent unnecessary loss of power, short circuit, damages, even wiring faults that may lead to dangers.

What wire do you use for 50 amps?

50 AMP Wire Size For a maximum of 50 amps, you’ll need a wire gauge of 6. Fifty amp breakers are most often used to power many different appliances. However, a kitchen oven can alone require 50 amps. Many electric dryers also require a 50 amp breaker.

How many amps can #4 aluminum carry?

Conductor Size (AWG/KCMIL)60°C (140°F) TW, UF75°C (167°F) RHW, THHW, THW, THWN, XHHW, USE, ZW64050455653657527590

What are the 3 wires from pole to house?

The service drop leads from the utility pole lines to a home. It is made up of three conductor wires. Two of them are insulated wires that carry electricity from the transformer; the third is a bare neutral wire that connects to the grounding wire. These lines have a voltage of 120 to 240 volts.

Which wire is best for House?

If what you need the wire for is the wiring of your home, copper wires will be most appropriate for you. Copper is more conductive than aluminum but is also heavier and more expensive.

What are the three wires coming into my house?

The service drop consists of three phase wires and a neutral wire which is grounded. Each phase wire provides around 230 V to loads connected between it and the neutral. … Other countries, such as the UK and Ireland, generally provide a single phase and neutral per house, with every third house on the same phase.

What is the difference between SEU and SER cable?

Basically, SER is a round service electrical cable that typically has up to four conductors and a bare neutral. The cable is designed to use above the ground in feeder panels and branch circuits. SEU is an unarmored Style U flat service electrical cable with two-phase conductors and a concentric neutral.

How often should Ser cable be strapped?

When used as a branch circuit or feeder, Type SE cable must be supported and secured in accordance with 334.30 at intervals not exceeding 4½ feet and within 1 foot of every outlet box, junction box, cabinet or fitting.

Can you use ser cable for sub panel?

SER is a perfect cable for feeding power to your sub-panel, and, depending on the amount of amps their sub-panels are handling (we’ve seen everywhere from 50 amp to 200 amp sub-panels being serviced), our customers are using all sizes of SER as a sub-panel feeder.

Can triplex wire be buried?

Wire And Cable Your Way offers a wide variety of competitively priced Triplex Aluminum Underground Wire (URD) by the foot. Customers prefer to use this Triplex cable because you can bury it underground without a conduit.

Is triplex direct burial?

Triplex Aluminum 600V URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications. Maximum operating temperature is not to exceed 90°C in wet and dry locations.

Can you direct bury aluminum wire?

Aluminum URD Direct Burial Wire is used in direct burial electrical power distribution when secondary power distribution circuits are required. This cable is available in Single, Duplex, Triplex, and Quadruplex variations.

What is the difference between UF and UF-B wire?

UF-B vs. UF-B cables are often confused with UF cable, another type of underground feeder electrical wire. … The regular UF cable is well-suited only to be buried in conduit. The difference between them is UF-B construction indicates a better resistance to water and corrosion, as well as a superior temperature range.

What is NMB cable?

1. Indoor NMB cable or Romex® 12/2 cable. NMB stands for non-metallic because it has a PVC jacket instead of a metal-clad jacket. It is a basic indoor electrical wire used to deliver power from an electrical box to lights, outlets and appliances.

Can you bury UF wire without conduit?

Underground feeder cables, labeled UF, can be buried without additional protection from conduits because they have a tough jacket designed for burial. Bury UF cables 24 inches below the soil surface, and 18 inches deep when protected by 2 inches of concrete.

Is Thhn and AWG the same?

THHN wire has tightly bunched copper strands that give it a rigid and inflexible quality. … 6 AWG welding cable is made with thinner copper strands and rubber insulation. The rubber not only protects the cable from harsh environments but also lends a flexible and bouncy quality to the cable.

What is XLP wire?

XLP USE is a cross-linked polyethylene insulated single conductor stranded or solid bare copper wire. It is similar to XHHW building wire except this product is rated for direct burial applications. This product is also referred to as RHH/RHW meaning it meets the UL standard 854 for service entrance cable.

What is Thhn cable?

THHN is a thermoplastic high-heat-resistant, nylon-coated wire. … Extremely popular as an inexpensive building wire, THHN wire serves its purpose admirably and can be used for wiring machine tools, control circuits, and certain appliances.

Can you run aluminum wire in conduit?

Aluminum USE-2 / RHH / RHW-2 Wire (XLPE Insulation) USE-2/RHH/RHW-2 aluminum building wire is rated for direct burial and intended for general purpose applications utilized in conduit, underground in conduit, or other recognized raceways for services, feeders, and branch-circuit wiring.
