What is SE cable used for

Type SE cable is often used for interior wiring to supply heating and cooling equipment, appliance branch circuits and for feeders to subpanels.

What is the difference between SE cable and Ser cable?

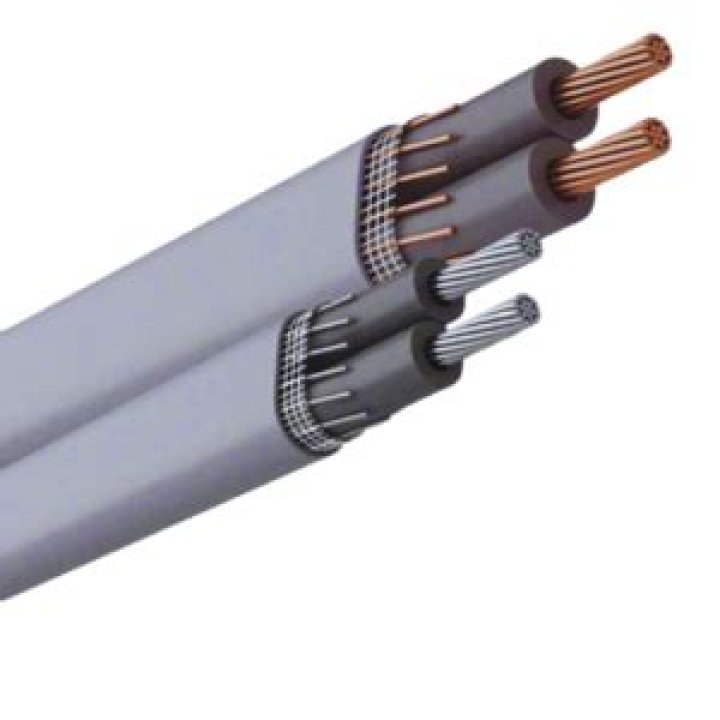

Style SEU cable has two phase conductors surrounded by a concentric neutral while the SER style has two, three or four phase conductors and a bare neutral.”

Can you put SE cable in conduit?

SE cables simply can’t be buried, conduit or no conduit.

Where is type SE cable is permitted?

Type SE service-entrance cable shall be permitted for use where the insulated conductors are used for circuit wiring and the uninsulated conductor is used only for equipment grounding purposes.

Can SE cable be used outside?

Type SE cable, containing two or more conductors, is permitted to have one conductor that is uninsulated. … SE cable also cannot be used for exterior branch circuit or feeder wiring, unless the installation complies with the provisions of Part I of Article 225 and is properly supported.

Does service entrance cable need to be in conduit?

(1) Service-Entrance Cables. So, you’ll either need to have this service-entrance re-run with a conduit, or see if you can get your local electrical inspectors to sign off on using bollards (i.e. concrete-filled metal poles) to protect the meter pan and service cabling as Machavity suggests.

What wire do I need for a 200 amp service?

Wire Sizes For 200 Amp Service Wiring 200 amp service requires either #2/0 copper wiring or #4/0 aluminum or aluminum clad wiring. Which wire used is determined by the voltage drop and length of the wiring. Many electrical contractors opt to use #4/0 aluminum or copper-clad wire.

What size wire do I need for 100 amp service?

When it comes to the lines connecting master and secondary panels, where the line will carry as much as a full 100 amps, use a 2-gauge non-metallic sheathed electrical cable. The cable must contain one or two hot wires depending on your needs, one neutral wire, and one ground wire. Each wire should be 2-gauge in size.

How often does Ser cable need to be supported?

When used as a branch circuit or feeder, Type SE cable must be supported and secured in accordance with 334.30 at intervals not exceeding 4½ feet and within 1 foot of every outlet box, junction box, cabinet or fitting.

What type of electrical cable has wires covered with paper and vinyl?

part of the circuit. What type of electrical cable has wires covered with paper and vinyl? Aluminum wire: requires one size larger than copper wire to carry the same amperage.

Article first time published on

Can Thhn be used for service entrance?

Cerrowire® single conductor types (excluding TFFN) are pulled through conduit for use in branch circuits, feeders, or service entrance conductors as specified in the NEC. … Type THHN or THWN-2 may be used in wet or dry locations at conductor temperatures not to exceed 90°C.

Can I use underground wire inside?

The most common types of direct burial cable used in residential projects are underground service entrance (USE) and underground feeder (UF). … While standard NM cable is rated only for dry, interior applications, UF cable can be used outdoors as well as indoors.

What does Thhn mean?

THHN (Thermoplastic High Heat-resistant Nylon-coated) wire is designed with a PVC (polyvinyl chloride) insulated nylon sheath. Most THHN building wire comes with the dual rating THHN/THWN, meaning it is usable in both wet and dry conditions, as well as both indoor and outdoor use.

Is mobile home Feeder direct burial?

Southwire® Type mobile home feeder is intended for the connection of mobile homes to a supply of electricity where permanent wiring is required as specified in the 2011 National Electrical Code. Suitable for direct burial in earth at conductor temperatures not to exceed 90°C. Voltage rating is 600 volts.

Can you run aluminum wire in conduit?

If you’re lucky, you may even be able to run the new conductors through your existing conduit (minimum 1-in. … Both copper and aluminum will oxidize when exposed to the atmosphere, but the difference is that the corrosion on copper is conductive, so it doesn’t cause problems with the flow of electricity.

Is direct burial wire safe?

Direct Burial rated wire is approved to be run in the earth in accordance with the National Electric Code (NEC), usually without the use of conduit to surround it. The combination of the insulation material and its thickness keeps out moisture and other harsh factors to protect the wires inside.

What wire is used for service entrance?

SE-U is most commonly used for service entrance applications, to connect the meter socket to the main breaker panel. It is also commonly used for overhead service drop applications, to connect the overhead service cable to the meter socket.

Which is bigger 2 AWG or 4 AWG?

Diameter. A 2 gauge wire is thicker than a 4 gauge wire. In simple terms, the thicker the cable, the higher the current it can transfer. The American Wire Gauge (AWG) is used to describe the thickness of wires.

How far can I run 4 0 aluminum?

Result: 1 conductors per phase utilizing a #400 Aluminum conductor will limit the voltage drop to 2.94% or less when supplying 100.0 amps for 250 feet on a 120 volt system.

What wire goes from meter to panel?

Electrical wire Based on the current and voltage rating of the meter and breaker, #4 size AWG copper wire is the highly suggested type and size of wire. This is to provide efficiency in conductivity; it will also prevent unnecessary loss of power, short circuit, damages, even wiring faults that may lead to dangers.

What does URD stand for in electrical wire?

Underground residential distribution wire (URD) is a specialty aluminum wire intended for use in residential construction and light to medium duty commercial applications.

How high does a Weatherhead have to be?

The top of the weatherhead shall be a minimum of twenty-four inches (24″) above the roof. If additional riser height is needed for service conductor clearance as required by applicable electrical codes, the riser shall be rigidly braced or guyed from a point within eight inches (8″) of the weatherhead.

How far can breaker box be from meter?

Typically, there’s a maintaining distance between a breaker box and a meter. But how long? There’s no limited distance from the outside of the house. But, inside the house, it’s better to maintain a distance of about 15feet.

How often do you strap Romex?

General Cable Support Runs of NM cable must be supported at least every 54 inches. 1 They also must be secured within 12 inches of an electrical box that includes a cable clamp or within eight inches of a box or enclosure without a cable clamp.

How often does EMT need to be strapped?

EMT must be secured at least every 10 ft. and within 3 ft. of every outlet box, junction box, device box, cabinet, conduit body, or other termination. An exception allows EMT to be fastened up to 5 ft.

How often should an electrician secure conduit between enclosures?

The general rule for straight runs of RMC, IMC, and EMT is that they are required to be securely fastened at intervals of no more than 10 feet (3 m).

Can you run a 100 amp sub panel off a 200 amp main panel?

2 Answers. Can you add a 100 amp breaker to your main panel? Yes you have 12 slots the double pole breaker will only take 2 slots.

Can you run 220 on 100 amps?

Yes, you can. As long as it 240v with a neutral and ground. The only downside is other loads. If the new load with the other loads goes over 100a, you will trip the breaker.

Does a subpanel need a ground rod?

Yes, any sub panel outside of the main building requires it’s own ground rod and a ground wire back to the main building. And yes, a sub panel in the same building as the main does not need a ground rod – only the ground wire.

What are the 5 types of wires?

• Communications Cable. Coaxial Cable. …
• Direct-Buried Cable (DBC)
• Non-Metallic Sheathed Cable (NM, NM-B)
• Metallic Sheathed Cable (Armored Cable, AC or BX, MC) Armored Cable (AC) …
• Multi-Conductor or Multicore Cable:
• Paired Cable.
• Portable or Extension Cord.
• Ribbon Cable.

What are the three types of wire?

• live wire ( Red colour)
• neutral wire(Black colour)
• earth wire (Green colour)
