What is schema master role

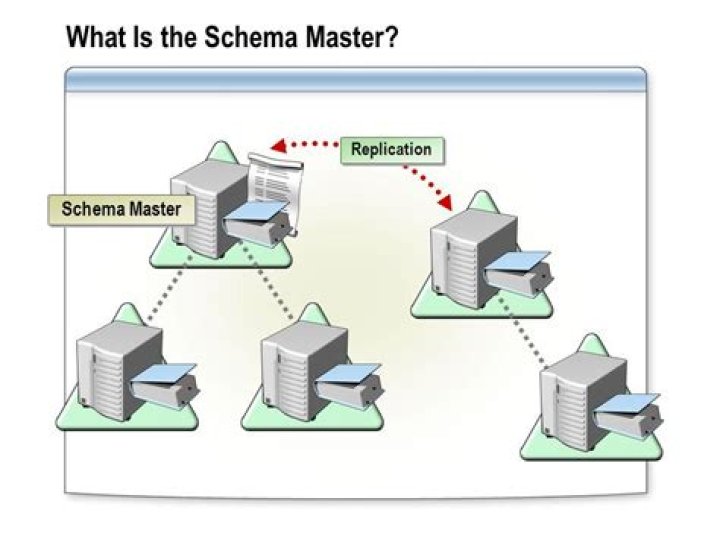

Schema Master: The Schema Master role manages the read-write copy of your Active Directory schema. The AD Schema defines all the attributes – things like employee ID, phone number, email address, and login name – that you can apply to an object in your AD database. … It is the master of your domain names.

Where is schema master role?

The Schema Master role is installed by default on the first DC in the first domain in the AD forest. You can move this FSMO role to any domain controller within the forest. But keep in mind that if the Schema Master is not available, it won’t be possible to change the AD schema.

What happens if Schema Master is down?

When the Schema Master goes down, there won’t be any effect on the users. The administrators will be affected by the failure only if they try to modify the schema or install an application that needs to modify the schema.

Who is schema master?

You can view the schema master role owner in the Active Directory Schema snap-in. You can view the domain naming master role owner in Active Directory Domains and Trusts. Click Start, click Run, type cmd in the Open box, and then press ENTER.

How do I change the schema master role?

In the console tree, right-click Active Directory Schema, and then click Operations Master. Click Change. Click OK to confirm that you want to transfer the role, and then click Close.

What is the difference between a forest and a domain?

The main difference between Forest and Domain is that the Forest is a collection of domain trees in an active directory while Domain is a logical grouping of multiple objects in an active directory. … Usually, there are multiple active directory objects which denotes the physical entities of a network.

How can you tell if DCs are replicated?

To diagnose replication errors, users can run the AD status replication tool that is available on DCs or read the replication status by running repadmin /showrepl.

Is Active Directory an application?

Active Directory (AD) is Microsoft’s proprietary directory service. It runs on Windows Server and enables administrators to manage permissions and access to network resources. Active Directory stores data as objects. An object is a single element, such as a user, group, application or device such as a printer.

How do I raise my domain functional level?

To raise the functional level of a domain, you can run the mmc snap-in Active Directory Domains and Trusts. Right click on the domain name, and select Raise Domain Functional Level. In the window that opens, select the functional level Windows Server 2016, and click the Raise button.

What is infrastructure master?

The Infrastructure Master is responsible for updating references from objects in the local domain to objects in other domains. There can be only one Infrastructure Master DC in each domain. The RID Master processes RID pool requests from all DCs in the local domain. There can be only one RID Master DC in each domain.

Article first time published on

What happens if PDC emulator fails?

PDC Emulator plays an important role in the Active Directory. If your PDC Emulator fails, certain domain functions, security functions, can stop functioning. … User accounts are not locked out: PDC Emulator processes the account lockouts immediately for the entire domain.

How do you seize rid master role?

To seize the role: Type seize <role>, and then press Enter. In this command, <role> is the role that you want to seize.

What happens if infrastructure master fails?

If the infrastructure master will be unavailable for an unacceptable length of time, you can seize the role to a domain controller that is not a global catalog but is well connected to a global catalog (from any domain), ideally in the same site as a global catalog server.

What is Domain Naming Master?

Domain naming master A domain controller that is in charge of adding new domains and removing unneeded ones from the forest. It is responsible for any changes to the domain namespace. This role prevents naming conflicts, because such changes can be performed only if the domain naming master is online.

What is DC replication?

Active Directory replication is the method of transferring and updating Active Directory objects from one DC to another DC. The connections between DCs are built based on their locations within a forest and site. … By mapping the IP address of a DC to a subnet, Active Directory knows which DCs are in which site.

How do I find my Active Directory USN?

One way to detect a USN rollback is to use the Windows Server version of Repadmin.exe to run the repadmin /showutdvec command. This version of Repadmin.exe displays the up-to-dateness vector USN for all domain controllers that replicate a common naming context.

How can I tell if a server is DC or ADC?

Have the logged on user launch the command prompt on the target computer. Type Set Logonserver the name of the domain controller that authenticated the user will be returned. See the figure below. Using echo %username% will allow you create a script to identify the authenticating domain controller.

Why infrastructure master should not be a GC?

If the name or the SID does not match, the local reference is updated with the values in the global catalog. … Hence, DCs in domain will have not have updated information and for this reason, the infrastructure master should not run on a global catalog server in a forest that contains multiple domains.

What is tree root domain?

The root domain, the first domain that you create, contains the configuration and schema for the forest. … All the domains within a tree share a contiguous namespace. Forests are collections of root domains. They do not share a contiguous namespace.

What is tree Active Directory?

An Active Directory tree is a collection of domains within a Microsoft Active Directory network. The term refers to the fact that each domain has exactly one parent, leading to a hierarchical tree structure. A group of Active Directory trees is known as a forest.

What is difference between domain and forest functional level?

Domain functional levels enable features that affect the entire domain and that domain only. It also controls which Windows Server operating systems can be run on domain controllers in the domain. Forest functional levels enable features across all domains within a forest.

What is DFL and FFL?

Functional levels have to be specified because their functionalities are not backward compatible with previous functional levels. Functional levels are classified into two types: Forest functional level (FFL) Domain functional level (DFL)

Do I need to reboot after raising domain functional level?

no restart is required for raising the domain or forest functional level. Guides and tutorials, visit ITGeared.com.

What is difference between AD and LDAP?

active directory is the directory service database to store the organizational based data,policy,authentication etc whereas ldap is the protocol used to talk to the directory service database that is ad or adam. LDAP sits on top of the TCP/IP stack and controls internet directory access.

How AD DS works in server?

AD DS verifies access when a user signs into a device or attempts to connect to a server over a network. AD DS controls which users have access to each resource, as well as group policies. For example, an administrator typically has a different level of access to data than an end user.

What is ADFS?

What is ADFS? Active Directory Federation Services is a feature and web service in the Windows Server Operating System that allows sharing of identity information outside a company’s network. It authenticates users with their usernames and passwords.

How many infrastructure master can we have in forest?

In every forest, there is a single Schema and Domain naming Master which are discussed in the Forest section of the tutorial. In each domain, there is 1 Infrastructure Master, 1 RID Master, and 1 PDC Emulator. At any given time, there can only be one DC performing the functions of each role.

What is the most important FSMO role?

The PDC Emulator (Primary Domain Controller) – This role is the most used of all FSMO roles and has the widest range of functions. The domain controller that holds the PDC Emulator role is crucial in a mixed environment where Windows NT 4.0 BDCs are still present.

How do I know if PDC emulator is running?

1. Identify the domain controller that has the PDC emulator role. From the command line of any domain controller, run. …
2. Verify network connectivity to the domain controller by using the ping command. …
3. Verify that Active Directory replication is working properly. …
4. Verify that the PDC emulator role is functioning.

What happens when Active Directory goes down?

If the Active Directory service is down, users will not be able to be authenticated to access any of the shared resources in the network. … From a monitoring perspective, administrators must be able to track users who have not logged on several days or those who have not changed passwords for a long period.

What server is my PDC emulator?

1. Right click on the domain.
2. Click Operations Masters.
3. All three tabs (RID, PDC, Infrastructure) should show the same server as the Operations Master.
