What is realization in UML

In UML modeling, a realization relationship is a relationship between two model elements, in which one model element (the client) realizes the behavior that the other model element (the supplier) specifies. Several clients can realize the behavior of a single supplier.

What is realization class diagram?

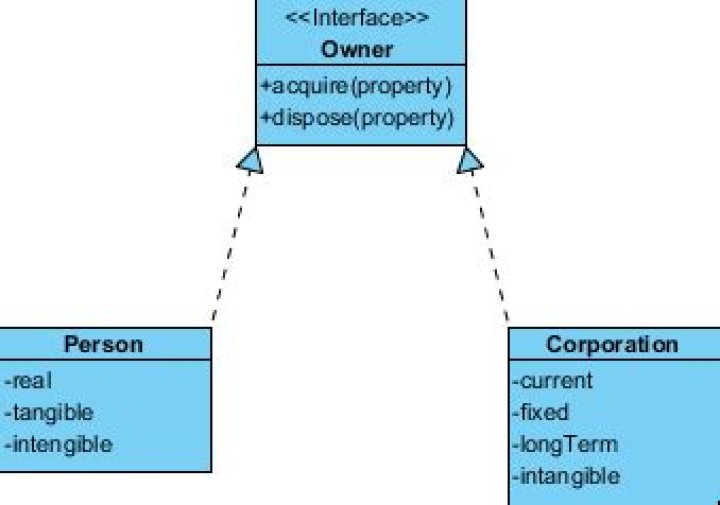

A realization is a relationship between classes, interfaces, components and packages that connects a client element with a supplier element. A realization relationship between classes/components and interfaces shows that the class/component realizes the operations offered by the interface.

What is generalization and realization?

A realization is a meaningful relationship between classifiers. Generalization is also called as a parent-child relationship.

What is Realisation between two elements in UML diagram?

Realization is a relationship between two elements in a UML diagram where one element specifies behavior and the other element implements or executes, in other words, realizes, that behavior.

What is object realization?

Realization is a relationship between the blueprint class and the object containing its respective implementation level details. This object is said to realize the blueprint class. In other words, you can understand this as the relationship between the interface and the implementing class.

What is model realization?

In systems theory, a realization of a state space model is an implementation of a given input-output behavior. That is, given an input-output relationship, a realization is a quadruple of (time-varying) matrices such that. with describing the input and output of the system at time .

What is the representation of realization?

Realization is a specialized abstraction relationship between two sets of model elements, one representing a specification (the supplier) and the other represents an implementation of the latter (the client).

What is dependency in UML diagram?

In UML, a dependency relationship is a relationship in which one element, the client, uses or depends on another element, the supplier. … You can also use a dependency relationship to represent precedence, where one model element must precede another. Typically, dependency relationships do not have names.

What is aggregation in UML?

In UML models, an aggregation relationship shows a classifier as a part of or subordinate to another classifier. An aggregation is a special type of association in which objects are assembled or configured together to create a more complex object.

What is relationship in UML?

In UML modeling, a relationship is a connection between two or more UML model elements that adds semantic information to a model. … An abstraction relationship is a dependency between model elements that represent the same concept at different levels of abstraction or from different viewpoints.
