What is RA and RS in IPv6

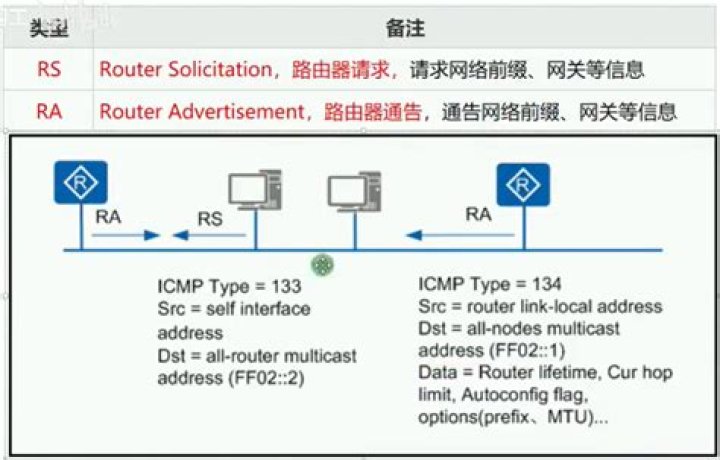

When a dual-protocol host joins a network it sends an ICMPv6 (type 133) Router Solicitation (RS) message to inquire about the local IPv6-capable router on the network. … The RA message contains important information for nodes as well as which method they should use to obtain their IPv6 address.

What is RA configuration?

Enabling or disabling router-advertisement (RA) messages enables you to control the routing configuration for selecting the correct network interface to communicate with its neighbors.

What is router advertisement RA?

The RADVD (Router Advertisement Daemon) is used for IPv6 auto-configuration and routing. When enabled, messages are sent by the router periodically and in response to solicitations. A host uses the information to learn the prefixes and parameters for the local network.

What is IPv6 ND suppress RA?

Description. Suppresses IPv6 router advertisement transmissions on a local area network (Ethernet) interface. … On such interfaces, you can suppress the sending of router advertisements using this command. This command is useful for only Ethernet interfaces if you want to suppress the sending of router advertisements.

What is a limitation of IPv6 RA Guard?

IPv6 RA guard does not offer protection in environments where IPv6 traffic is tunneled. IPV6 RA guard can be configured on a switch port interface in the ingress direction and is supported only in the ingress direction; it is not supported in the egress direction.

What is Ula mode?

A unique local address (ULA) is an Internet Protocol version 6 (IPv6) address in the address range fc00::/7. Its purpose in IPv6 is analogous to IPv4 private network addressing. … They are routable only within the scope of such private networks, but not in the global IPv6 Internet.

What is DHCPv6 guard?

DHCP—DHCPv6 Guard. This module describes the Dynamic Host Configuration Protocol version 6 (DHCPv6) Guard feature. This feature blocks DHCP reply and advertisement messages that originate from unauthorized DHCP servers and relay agents that forward DHCP packets from servers to clients.

What is the RA flag to set on a router advertisement if we want hosts on the link to use DHCPv6 to get IPv6 addresses?

Default behavior: SLAAC The RA messages SHOULD have the O flag set to prompt the end hosts to use DHCPv6 to get DNS server IPv6 address (alternative: RFC 6106, which is not yet widely implemented).

How does IPv6 autoconfiguration work?

A host performs several steps to autoconfigure its interfaces in IPv6. The autoconfiguration process creates a link-local address. The autoconfiguration process verifies its uniqueness on a link. The process also determines which information should be autoconfigured, addresses, other information, or both.

What is IPv6 managed config flag?

The ipv6 nd managed-config-flag sets a flag in the router advertisement that tells the hosts that they could use DHCPv6. The last command that ends with no-autoconfig tells the hosts not to use stateless configuration.

Article first time published on

How do I enable IPv6 routing?

1. Log in to the web-based interface of the router. …
2. Go to Advanced > IPv6.
3. Enable IPv6 and select the internet connection type provided by your ISP. …
4. Fill in information as required by different connection types. …
5. Configure LAN ports.

What is IGMP proxy?

IGMP proxy enables the router to issue IGMP host messages on behalf of hosts that the router discovered through standard IGMP interfaces. The router acts as a proxy for its hosts. … You enable IGMP on the interfaces that connect the router to its hosts that are farther away from the root of the tree.

What is IPv6 ND inspection?

IPv6 ND inspection is an internal network security system that detects and prevents IPv6 address spoofing at the switch level. IP communication within a Layer 2 infrastructure is established by mapping an IP address to a MAC address.

What is the difference in Slaac and a DHCP server?

SLAAC automatically works with a router, while Stateless DHCPv6 gives addresses using SLAAC and extra information using DHCP. The only configuration where the server gives IPv6 addresses is the Stateful one.

What does DHCP Guard do?

Hence, DHCP Guard can act as a second line of defense against unauthorized DHCP servers. When enabled, this setting prevents a VM from acting as a DHCP server. … Hyper-V’s Router Guard and DHCP Guard features are designed to protect VMs against unauthorized network services.

What is DHCP snooping used for?

DHCP snooping is a security feature that acts like a firewall between untrusted hosts and trusted DHCP servers. The DHCP snooping feature performs the following activities: Validates DHCP messages received from untrusted sources and filters out invalid messages.

How does IPv6 snooping build its binding table?

IPv6 Snooping learns and secures bindings for stateless autoconfiguration addresses in Layer 2 neighbor tables and analyzes ND messages in order to build a trusted binding table. IPv6 ND messages that do not have valid bindings are dropped. … For DHCP, UDP messages sourced from port 546 or 547 are redirected.

Should I enable ULA?

ULA is designed to never be routed on the public IPv6 Internet and as a result you should not be assigning ULA to hosts in your network unless you have the correct use case. Otherwise, stick with global unicast IPv6 addresses. Do IPv6 right the first time so you don’t have to go back and do it again.

What is stateless and stateful IPv6?

Stateful vs Stateless DHCPv6 A stateless DHCPv6 server does not provide IPv6 addresses at all. It only provides “other information” such as a DNS server list and a domain name. … A stateful DHCPv6 server provides IPv6 addresses and “other information” to hosts. It also keeps track of the state of each assignment.

What does FC00 ::/ 7 mean?

A range of FC00::/7 means that IPv6 Unique Local addresses begin with 7 bits with exact binary pattern as 1111 110L. If the value of single binary bit “L” is set to 1, the Unique local IPv6 multicast address is locally assigned. The value 0 may be defined in the future.

What is IPv6 stateless?

Stateless address autoconfiguration is the process that IPv6 nodes (hosts or routers) use to automatically configure IPv6 addresses for interfaces. … If a node determines that its tentative IPv6 address is not unique, then autoconfiguration stops and manual configuration of the interface is required.

Does IPv6 have checksum?

The IPv6 protocol does not use header checksums. Its designers considered that the whole-packet link layer checksumming provided in protocols, such as PPP and Ethernet, combined with the use of checksums in upper layer protocols such as TCP and UDP, are sufficient.

What is EUI 64 address?

EUI-64 (Extended Unique Identifier) is a method we can use to automatically configure IPv6 host addresses. An IPv6 device will use the MAC address of its interface to generate a unique 64-bit interface ID. However, a MAC address is 48 bit and the interface ID is 64 bit.

What happens if the M and A flags were both on in an RA received by a host?

The M flag being received in the RA will cause the host to ask for a DHCP address. However, it will also configure a SLAAC address using the prefix information in the RA. This is due to the fact that the autoconfig flag is on by default. The “A” flag tells the host to use the RA to build an address for the interface.

What is IPv6 ND prefix?

About IPv6 Neighbor Discovery The IPv6 neighbor discovery process uses ICMPv6 messages and solicited-node multicast addresses to determine the link-layer address of a neighbor on the same network (local link), verify the readability of a neighbor, and keep track of neighboring routers.

What does the nd other config flag command do?

Configures the hosts can use stateful autoconfiguration to get non-IPv6-address information.

What are two types of IPv6 unicast addresses?

Loopback and link-local are specific types of unicast addresses.

What is Unicast routing?

Unicast routing is the process of forwarding unicasted traffic from a source to a destination on an internetwork. Unicasted traffic is destined for a unique address. … The Internet Protocol (IP) and the Internetwork Packet Exchange (IPX) protocol are used as the example protocols where appropriate.

Should I enable IPv6 on router?

Best answer: IPv6 can potentially add support for more devices, better security, and more efficient connections. While some older software may not work as expected, most of your network should work fine with IPv6 enabled.

How do I verify IPv6 configuration?

1. Open your AmpliFi smartphone app.
2. Tap the image of the router to open the router’s settings.
3. Select the “Internet”.
4. Scroll down to “IPv6” and toggle this On. …
5. Verify corresponding Network Type. …
6. Tap the check mark on the top right corner to save your settings.

Should I turn off IGMP?

IGMP proxying should be left enabled unless it causes problems. This allows the router to convert Multicast traffic into Unicast traffic, allowing for the network especially wireless devices, to work more efficiently.
