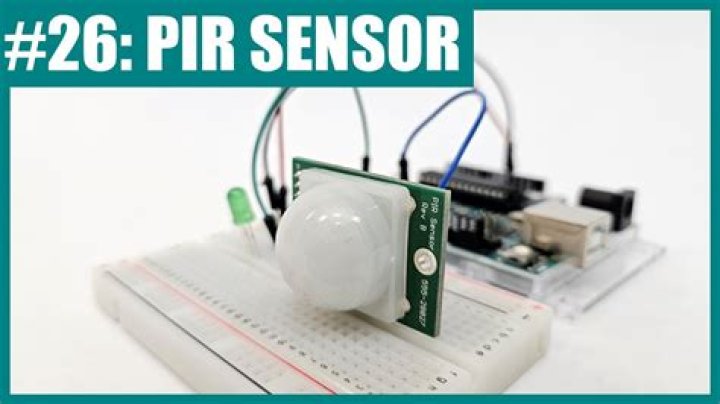

What is PIR Sensor Arduino

The output of PIR motion detection sensor can be connected directly to one of the Arduino (or any microcontroller) digital pins. … PIR modules have a passive infrared sensor that detects the occupancy and movement from the infrared radiated from human body.

What is a PIR sensor and how does it work?

Passive infrared (PIR) sensors use a pair of pyroelectric sensors to detect heat energy in the surrounding environment. These two sensors sit beside each other, and when the signal differential between the two sensors changes (if a person enters the room, for example), the sensor will engage.

How do you use PIR?

Connecting PIR sensors to a microcontroller is really simple. The PIR acts as a digital output so all you need to do is listen for the output pin to flip HIGH (Motion Detected) or LOW (Not Detected). Power the PIR with 5V and connect ground to ground. Then connect the output to a digital pin #2.

Why would you use a PIR sensor?

PIR sensors allow you to sense motion, almost always used to detect whether a human has moved in or out of the sensors range. They are small, inexpensive, low-power, easy to use and don’t wear out. For that reason they are commonly found in appliances and gadgets used in homes or businesses.

What is difference between IR sensor and PIR sensor?

Their main differences include: The IR sensors detect whether the light from the transmitter is emitted by an object or a person. Whereas, the PIR sensors detect changes in the levels of energy around the area. … PIR sensors don’t actually emit the infrared; objects give the sensor infrared rays.

What is PIR sensor in IOT?

PIR Sensor is short for passive infrared sensor, which applies for projects that need to detect human or particle movement in a certain range. It is also known as PIR (motion) sensor or IR sensor.

What can set off a PIR sensor?

Flying or crawling insects; spiders like to make homes in corners and anchor their webs to the sensors.
Pets.
Curtains or plants blown by air conditioning or heaters.
Low batteries.
Ceiling fans.
Objects moving near motion sensors.

Does PIR work through plastic?

PIRs do work thru plastic, they generally do not work thru glass.

Do PIR sensors work in daylight?

Their photocell technology detects when the sunlight has dimmed and switches on the light. Some lights are always-on during lower light, while others include the PIR motion sensor. So, you only have the light switching on when it’s dark and when motion is detected.

What is the range of PIR Sensor?

Since PIR sensors have ranges of up to 10 meters (30 feet), a single detector placed near the entrance is typically all that is necessary for rooms with only a single entrance.

Article first time published on

What language does Arduino use?

Arduino is programmed with a c/c++ ‘dialect’. Most c/c++ will work but much of the standard libraries will not work. Many of the restrictions is made because of the little available RAM on the Arduino hardware.

Can PIR sensor detect object?

Passive infrared (PIR) sensors detect infrared energy radiating from objects within their field of vision. … The most common object a PIR sensor detects is the human body, so these sensors find use in automatic light switches, alarm systems, and door openers.

Is PIR sensor active or passive?

Ultrasonic, microwave, and infrared motion sensors are active sensors, which means they actively send energy. A passive sensor can be thought of as a “read-only” device. An example is a passive infrared (PIR) sensor, which detects infrared energy created by body heat.

Is PIR better than motion detection?

While motion detection is a good first step, relying solely on motion sensors can result in false alarms. … PIR or Passive Infrared motion sensors are designed to reliably detect people, large pets & other large warm moving objects.

What are the types of sensors?

Temperature Sensor.
Proximity Sensor.
Accelerometer.
IR Sensor (Infrared Sensor)
Pressure Sensor.
Light Sensor.
Ultrasonic Sensor.
Smoke, Gas and Alcohol Sensor.

Can a spider set off a PIR sensor?

Spiders so big they’re triggering alarms. … Actually, in reality they don’t have to be huge to do this; all it takes is a spider to crawl directly over a sensor to fool it into thinking there’s some kind of intruder.

Can a rat set off a motion detector?

Homeowners with pets should be certain the home security system has sensors that are “pet- friendly,” as pets that are free to roam the house will trigger motion detectors and activate a false alarm. Rodents and insects can also trigger alarms.

How many PIR sensors do I need?

Depending on the size and layout of your basement, you may only need one motion sensor. Even if your basement is larger, if it’s fairly open, one sensor in the corner of the room could monitor a 90-degree angle and detect motion up to 40 feet away.

What are PIR sensors?

There are three types of motion sensors that are used frequently: Passive Infrared (PIR), Microwave, and Dual Tech/Hybrid.

Is PIR sensor digital or analog?

Typical PIR-based motion detectors have primarily analog dual-pole output signal . After amplifier and comparator this deviations converts to digital pulses. Usually it is pairs of pulses. In each pair are present not only motions detect signal but also direction of motion.

Do PIR sensors work in the dark?

The short answer is yes. Motion sensors do work in complete darkness, as none of the motion sensors mentioned above are reliant on using images to detect motion. Instead of images, PIR motion sensors detect changes in the level of received infrared.

What is Lux on a motion sensor?

LUX: Lux is what controls the day and night setting it will have a picture of a sun and a moon, moving it more towards the sun will have it come on when it is lighter or moving it towards the moon will have it activate only when it is dark.

What are the three settings on a PIR?

LIGHT SETTINGS The Flood Light is fitted with three setting dials (SENS – SENSITIVITY; TIME; LUX – LIGHT LEVEL).

Can PIR sensor detect animals?

PIR sensor is used to detect animals in the form of cow, goats, monkeys and civets with a voltage output of 3.3 V up to a maximum distance of 5 m.

Does PIR work through glass?

No, alarm motion sensors do not work through glass. Most motion sensors use passive infrared (PIR) technology to detect motion. Changes in IR energy are not easily detected through glass.

Can PIR sensor detect fire?

PIR sensors can be used for flame detection. The paper describes a flame detection system based on a PIR sensor. In large rooms the flame detection system can be used. The highest probability is reached for a fire or no fire decision.

How many pins does a PIR sensor have?

The PIR sensor circuit consists of three pins, power supply pin, output signal pin, and ground pin.

Which function S could be used to read a PIR sensor on Arduino?

Source Code Here’s the Arduino Code for this example. It’s quite simple. We just need to define the PIR Sensor pin as input and the relay pin as output. Using the digitalRead() function we will read the output of the sensor and if its high or if an object is detected it will activate the relay.

How does Arduino temperature sensor work?

How It Works: Unlike a thermistor, the TMP36 does not have a temperature sensitive resistor. Instead this sensor uses the property of diodes; as a diode changes temperature the voltage changes with it at a known rate. The sensor measures the small change and outputs an analog voltage between 0 and 1.75VDC based on it.

Can Arduino use Python?

Arduino uses its own programming language, which is similar to C++. However, it’s possible to use Arduino with Python or another high-level programming language. In fact, platforms like Arduino work well with Python, especially for applications that require integration with sensors and other physical devices.

Can I use C# for Arduino?

In this article, we are going to connect an Arduino Pro Mini to a PC and communicate with it using a C# Windows application. Connecting your hardware to a PC can be very beneficial, not least because you can send commands and monitor status. You can also debug your code in real-time.
