What is open wiring system

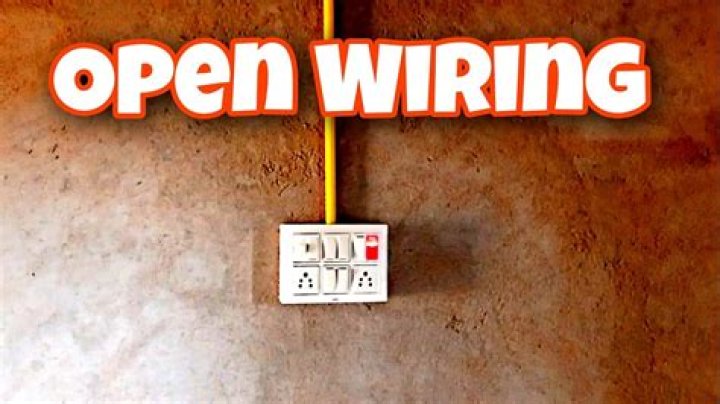

As a word suggests open means exposed. It is a wiring method using cleats, knobs, tubes and flexible tubing for the protection and support of insulated conductors running, on walls and not concealed or hidden under any elements of building.

What are the advantages of using an open wiring?

All the cables are in open-air therefore fault is very easily found and replaced it very quickly. Customization can be easily done. Installation and dismantlement are easy and quick.

What are the 3 types of wiring connection?

And there are three basic house wiring types that each outlet has points for, namely live wire, a neutral wire, and the ground wire.

What are the different types of wiring system?

Cleat Wiring. This wiring comprises of PVC insulated wires or ordinary VIR that are braided and compounded. …
Casing and Capping Wiring. …
Batten Wiring. …
Lead Sheathed Wiring. …
Conduit Wiring.

What is open wiring on insulator?

An exposed wiring method using cleats, knobs, tubes, and flexible tubing for the protection and support of single insulated conductors run in or on buildings.

Which is the cheapest wiring system?

The cheapest system of wiring is cleat wiring. Used in hospitals, drawing rooms, high precision workshops etc.

What are the advantages and disadvantages of Batten wiring?

This is a simple wiring system.
Batten wiring system is a better long life.
Durable and have good strength.
The chance of leakage current is very rare.
It looks very beautiful.
Wiring installation is easy and simple.
Alternations are possible.
It is installed very quickly.

What is CTS wiring?

In the CTS wiring system, CTS stands for Cable tyre sheathed. It is the type of internal wiring. Electrical wiring is the electrical power distribution through the wires in a perfect manner for economic use of wiring conductors inside a room or building with better load control.

What are the 5 types of wires?

Communications Cable. Coaxial Cable. …
Direct-Buried Cable (DBC)
Non-Metallic Sheathed Cable (NM, NM-B)
Metallic Sheathed Cable (Armored Cable, AC or BX, MC) Armored Cable (AC) …
Multi-Conductor or Multicore Cable:
Paired Cable.
Portable or Extension Cord.
Ribbon Cable.

What is panel box?

A metal box in which electrical switches and fuses for branch circuits are located.

Article first time published on

What are the three wires called?

Live, neutral and earth mains wires The plug contains three wires – the live, neutral and earth wires. In a plug, the live wire (brown) and the neutral wire (blue) are the two wires that form the complete circuit with a household appliance.

Which wire is used in wiring?

In the case of household wiring, the conductor itself is usually copper or aluminum (or copper-sheathed aluminum) and is either a solid metal conductor or stranded wire. Most wires in a home are insulated, meaning they are wrapped in a nonconductive plastic coating.

What are the types of switch?

ONE-WAY (SINGLE-POLE) ELECTRICAL SWITCH. A one-way or single-pole electrical switch is the most common one in use. …
TWO-WAY (DOUBLE-POLE) ELECTRICAL SWITCH. …
DO NOT DISTURB SWITCH. …
LIGHT DIMMER / STEPLESS REGULATOR. …
BELL PUSH SWITCH.

Which place the three system of wiring is most suitable?

Ring system of house wiring:Ring system of wiring is more used in place of tree system. The wires start from the main fuse box, run around all main rooms of the house & then come back to fuse box forming ring.

How is concealed wiring done?

Concealed wiring is properly named as a concealed conduit wiring system. … This layout of wiring is done under the plaster of the wall of the building. Conduit pipes are buried under the plaster of the wall with GI wire inside.

What is Messenger supported wiring?

A messenger wire is a wire that is run along with or integral with a cable or conductor to provide mechanical support for the cable or conductor. … In the 2020 NEC, a messenger wire is defined as a wire that is run along with or integral with a cable or conductor to provide mechanical support for the cable or conductor.

Where batten wiring is used?

Batten is installing on the walls of the building. 1.5-inch screws are used to installations of batten on the walls. Installation to the cable on batten and tight the clips. All the switches, sockets, lamps, ceiling rose, the main switch is installed on wooden round rocks.

Where is batten and cleat wiring used?

The cleat wiring is used in most of the industry of high capacity current cables. The distance between earth and cable is approximately 2.5 to 3 cm, therefore at switches and junction boxes, the earthing points are marked.

Which type of wire is very long life?

Advantages of conduit wiring: It is the safest wiring system, and its appearance is very beautiful. No risk of mechanical wear and tear and fire in the case of metallic pipes. It is a reliable and long-lasting wiring system.

Which wiring system is inside of wall?

If the conduits is hidden inside the wall slots with the help of plastering, it is called concealed conduit wiring. In other words, the electrical wiring system inside wall, roof or floor with the help of plastic or metallic piping is called concealed conduit wiring.

What does Section 44 refer to?

Section 44 in The Indian Electricity Act, 1910. 44. Penalty for interference with meters or licensee’s works and for improper use of energy.—Whoever—

Which is the most type of wiring used in domestic applications?

Explanation: The most common type of wiring in modern homes is in the form of nonmetallic (NM) cable, which consists of two or more individual wires wrapped inside protective plastic sheathing.

What are the 2 types of wire?

The two categories of single-conductor wires are solid and stranded (also called braided). Solid wire is rigid and conducts electricity better. Stranded wire consists of smaller wires braided together.

What does Thhn mean?

THHN (Thermoplastic High Heat-resistant Nylon-coated) wire is designed with a PVC (polyvinyl chloride) insulated nylon sheath. Most THHN building wire comes with the dual rating THHN/THWN, meaning it is usable in both wet and dry conditions, as well as both indoor and outdoor use.

What are triplex wires?

Triplex wire is commonly used for overhead, single phase service and contains three individual wires twisted around each other. The two insulated conductors are called the “hot” legs of the service while the bare (uninsulated) wire is the neutral wire of the service.

What is CTS or TRS or PVC wiring?

CTS or TRS or PVC sheath wiring (Batten wiring): In this form of wiring, single core, double core, or three core TRS cables with a circular oval shape are used. Single-core cables are most commonly used. TRS cables are chemical, water, and steam resistant, but lubricating oil has a minor effect.

What is CTS and TRS wire?

Helens cable Co., under the name C.T.S (cab tyre sheath) is usually lapped on to the already insulated conductor. In tough rubber sheathed cable, the conductor is insulated with vulcanized rubber insulation. T.R.S cables are manufactured in this way that the cables are with stand the mechanical damage.

What is PVC wire?

PVC wire and cable are where a thermoplastic material called Polyvinyl Chloride also referred to as PVC is used for wire insulation or cable jackets. PVC wires and cables are widely used due to excellent properties such as chemical, heat and water resistance, robustness, durability, and versatility.

What is a subpanel?

A subpanel is a smaller service panel that distributes power to a specific area of the home or other buildings on the property. It is essentially a satellite circuit breaker panel that has its own breakers.

What is fuse panel?

A fuse panel is a part of an electrical system which is designed to divide a source of electricity into an assortment of circuits, each of which is protected from overcurrent by a fuse. … Fuses provide protection from overcurrent by failing when there is too much current or the fuse gets too hot.

What is electricity panel?

A distribution board (also known as panelboard, breaker panel, electric panel, DB board or DB box) is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure.
