What is MP circuit breaker

OVERVIEW. Circuit breakers are intended for switching and protection of your home’s wiring from high temperatures caused by excess current higher than the rating of the wire. Thermal-magnetic circuit breakers are the key element for overload and short-circuit protection of your electrical system.

What does MP mean on a circuit breaker?

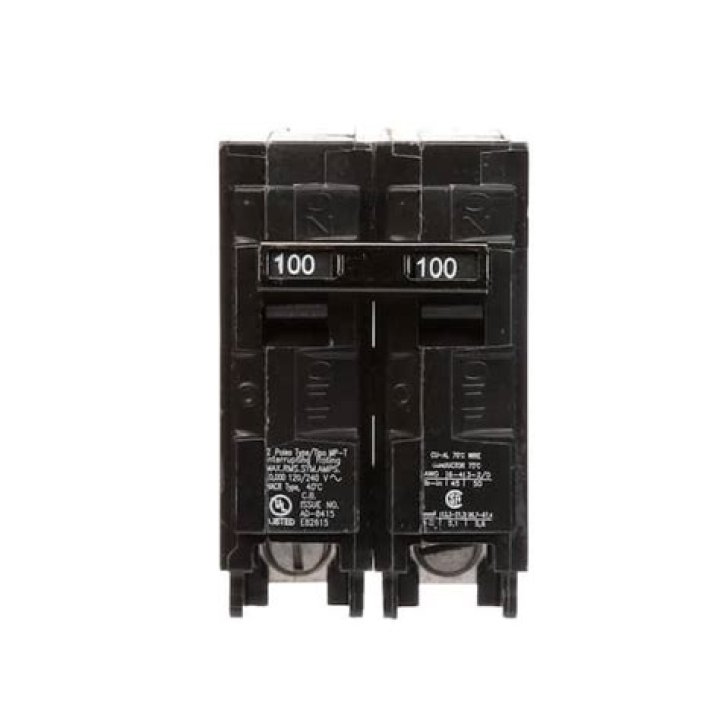

The key element for overload and short circuit protection is the thermal magnetic circuit breakers. The time saving insta-wire feature and easy plug-in connections are provided by Murray type MP circuit breakers.

Are QP and MP breakers interchangeable?

Siemens type QP breakers are interchangeable with Murray type MP-T breakers which are in turn interchangeable with Crouse-Hinds type MP breakers.

Who makes MP breaker type?

Manufacturer‎Siemens -HIItem model number‎MP110Style‎10-AmpVoltage‎120 VoltsItem Package Quantity‎1

What are the three types of circuit breakers?

The three main types of circuit breakers are standard, GFCI and AFCI. Some models have dual functionality. Each handles different amp capacities and operates in different locations in the home.

Are Siemens and Murray breakers interchangeable?

Siemens and Murray are indeed the same company. The parts are physically interchangeable (and AFAICT, identical except the label), but Murray breakers are technically not certified for the Siemens panels, and thus not allowed by NEC code. … Siemens purchased Murray a few years ago.

What replaces a Murray breaker?

You can replace Murray CBs with Air, Square D, and Cutler-Hammer Circuit Breakers. However, for an optimal use of the original Murray Load Centers, the best breaker brand substitute is Siemens. Not only is Siemens known for their quality products, but they are also the UL-listed brand for Murray.

How much do a circuit breaker cost?

If you’ve been wondering, “how much does it cost to replace a circuit breaker?” for a while now, know that the average cost is $1,475. You can get a replacement for a comparatively cheap $500 but some homeowners I know report being charged as high as $2,000 to $4,000 for their homes.

Which breakers are interchangeable?

Specified breakers are breakers that have been tested and listed for a panel by the manufacturer. Interchangeable breakers are breakers that have been tested in the panels that they are approved for and are similar to specified breakers, typically by a third party such as Underwriter’s Laboratory (UL).

What circuit breakers are compatible with Crouse Hinds?

Federal Pacific Electric Panels (FPE Panels)
Zinsco Panels.
Fuse Box.

Article first time published on

What does QP mean on a breaker?

The type QP circuit breakers are intended for protection of residential or commercial electrical wiring. There are 1 or 2 poles for Circuit Breaker QP types. The range of Amps is from 15 to 125. There are two types of voltages, 120 and 120.

What does QP mean on a circuit breaker?

QP breakers are manufactured by Siemens, and are designed to fit in Siemens breaker panels. … These breakers are designed to snap into a panel, so the hardware needed in the electrical panel needs to allow for snap-in breakers, rather than the style of breakers that bolt in using an external screw.

Can I use a QT breaker in a QP panel?

The Siemens QP, QT, QAF, and QPF are the standard “interchangeable” plug-on type breakers used in loadcenters under several brand names including Siemens, Murray, Gould, and Sylvania to name the most common.

What is ACB and VCB?

ACB Stands for Air Circuit Breaker where as VCB stands for Vaccum Circuit Breaker. ACB is used for the voltage level upto 440V, whereas VCB is used beyond the 440V. Both circuit breakers differ from each other only in terms of arc quenching medium they are using.

What is MCB and its types?

There are about six different types of MCB, which are A, B, C, D, K and Z. … Type C MCB trips off when the flow of current is 5-10 times more than normal. Type D MCB has a high resistance as they can withstand up to 10-20 times the current rate.

What is MCB electrical?

MCB stands for Miniature Circuit Breakers. The MCB is an electromechanical device that switches off the circuit automatically if an abnormality is detected. The MCB easily senses the overcurrent caused by the short circuit. The miniature circuit has a very straightforward working principle.

Are Murray breakers still made?

The Murray brand of circuit breakers is being phased out and replaced by equivalent Siemens products.

Are Murray electrical panels Safe?

Then, replace the fuse to resume your power. Circuit breakers are also safer since most of their electrical connections aren’t exposed, reducing the risk of electrocution and other electrical hazards. Murray electrical panels have been designed to withstand the most intensive conditions.

Are Murray panels safe?

The U.S. Consumer Product Safety Commission announced a voluntary recall of a Siemens and Murray circuit breaker. The recalled circuit breakers have a spring clip that can break during normal use, leading to a loss of force to maintain a proper electrical connection in the panelboard.

Can Square D breakers be used in a Siemens panel?

No, the Square D breaker should not be installed in the Seimens panel and checking the label should show you that this is not recommended.

Can I use GE breakers in a Siemens panel?

Siemens breakers can be used in GE breaker boxes, and they are generally known to be compatible. Match the size and voltage requirements when using Siemens breakers, as using the wrong breakers can have dangerous results. If the wrong breaker is used it could fail to break (shut off power) during a surge.

Who owns Murray electrical panels?

Founded in 1899, Murray Electrical specializes in sturdy, user-friendly electrical solutions. Since being acquired by Siemens, Murray stands by their commitment of manufacturing innovative products that are easy to install. As a sub-brand of Siemens, Siemens and Murray components are mostly interchangeable.

How do I know what circuit breaker I need?

Circuit breakers have markings stamped on the side of them and are usually located inside the panel cover door. There is a label that will tell you what type of breaker is needed for installation in that particular panel.

Can I replace a circuit breaker myself?

You can replace the circuit breaker by just removing the panel cover. Once you have removed the cover then you can disconnect the wire from the faulty breaker and pull it out of the way. … Take note of how the breaker fits in the panel and locks into position so that you can put the new circuit breaker in correctly.

What type of circuit breaker is used in houses?

Single-pole circuit breakers are the type most often found in homes today. They’re named single-pole because they’re designed to monitor the current of a single wire and trip in the event of a short or electrical overload.

Do I need an electrician to change a breaker?

Safety Tip: Testing and replacing a circuit breaker is a simple process, but you should work carefully and use extreme caution, even if you have experience working with electricity. … If you are not already familiar with working in a circuit panel, call a licensed electrician.

What is the life expectancy of a circuit breaker?

According to the Consumer Product Safety Commission (CPSC), the lifespan of electrical breakers is typically between 30-40 years. Electricity issues such poor power ratings or fluctuating voltages are all factors that will affect how long your circuit breaker lasts.

Can I replace a 20 amp breaker with a 30 amp breaker?

The answer is, “No, do not put a 30 Amp breaker in place of a 20 Amp breaker because the wiring is most likely’sized’ for the 20 Amp load and -may- overheat if a 30 Amp load is used with wiring sized for a 20 Amp load.”

Will a GE breaker fit in a Crouse Hinds panel?

You GE Breaker will fit in : American Switch, Arrow Hart, Challenger ( Sylvania ) ,General Electric( Full Size Only ), General Switch, Murray ( Crouse Hinds ), Siemens (ITE,GOULD) and Westinghouse…

Is Crouse Hinds still in business?

FoundedJanuary, 1897ProductsIndustrial, explosionproof electrical equipment, instrumentation, commercial products

Does Eaton breaker fit Crouse Hinds?

In addition to a UL listing, they also come with an outstanding 15-year warranty. UL Classified breakers are designed and tested to be both mechanically and electri- cally interchangeable with circuit breakers manufactured by General Electric, Thomas & Betts, ITE/Siemens, Murray, Crouse-Hinds, and Square D.
