What is meant by RC thread

BSPP is parallel thread, BSPT, R and Rc are taper thread, but Rc is female BSPT thread. BSPP and BSPT (in most cases) have different threads per inch (TPI) (and consequently the pitch).

Is RC thread the same as BSPP?

Rc, R(PT) and BSPT are the same. G and BSPP are the same. A Rc thread male will go into a G thread female and seal correctly. A G thread male will NOT go into a Rc female.

What is R thread and G thread?

BSP distinguishes between two types of threads. … These are parallel threads (BSPP), which have a constant diameter, which are known a G threads, and taper threads (BSPT), whose diameter increases or decreases along the length of the thread, known as R threads.

What are the four types of thread?

• UN/UNF.
• NPT/NPTF.
• BSPP (BSP, parallel)
• BSPT (BSP, tapered)
• metric parallel.
• metric tapered.

What does MIP and FIP mean?

MPT stands for Male Pipe Thread and MIP stands for Male Iron Pipe which both indicate a male fitting with NPT threads. FPT stands for Female Pipe Threads and FIP stands for Female Iron Pipe which both indicate a female fitting with NPT threads.

Is 3/4 BSP the same as 22mm?

If your ball valve is 22mm it is a copper compression fitting otherwise all screw threads in the UK even on 22mm metric fittings have 3/4 BSP threads.

Are NPT and BSP the same?

Both NPT and BSP are pipe thread standards for screw threads used on pipes and pipe fittings to seal pipes. Both threads have the same pitch and the familiar shaped peaks and valleys. … In BSP, they are rounded. Secondly, the NPT angle of the thread is 60 degrees and the BSP angle is 55 degrees.

Is BSPP and G the same?

The two types of thread are the same parallel straight. BSPP is the British Standard Pipe Parallel thread and it is also denoted by the letter G (ISO standard). Therefore, BSPP is the same as G.

Can you fit BSPT to BSPP?

Jointing threads: These are pipe threads for joints made pressure-tight by the mating of the threads. They always use a taper external thread, but can have either parallel or taper internal threads. This means a male BSPT (tapered) fitting will seal happily onto a female BSPP (parallel).

What does NPT stand for in threads?

The best known and most widely used connection where the pipe thread provides both the mechanical joint and the hydraulic seal is the American National Pipe Tapered Thread, or NPT. NPT has a tapered male and female thread which seals with Teflon tape or jointing compound.

Article first time published on

Which type of threads have high strength?

Where the length of engagement is limited, fine threads provide greater strength. Their larger minor diameters develop higher torsional and transverse shear lengths. Fine threads require less torque to develop equivalent bolt preloads. Fine threads are more susceptible to thread galling than coarse threads.

Are NPT and G threads compatible?

NPT connectionG connectionThread angle60°55°

What is a ZG thread?

ZG is commonly called tube cone, that is, the thread is made of a conical surface. … The metric thread is a 60-degree equilateral tooth type, and the inch thread is an isosceles 55-degree tooth type. 60 degrees. Metric threads are used in metric units, and American-English threads are used in imperial units.

Is G thread parallel or tapered?

If you have any questions please contact us or check out our fittings with BSPP/ BSPT (G) thread. Female and male thread are both parallel. Female thread is parallel and male thread is tapered. Female thread can also be tapered: Rc, but this is not common.

Is NPT same as MIP threads?

Yes, NPT (national pipe thread) has the same thread dimensions as an MIP (male iron pipe) and FIP (female iron pipe).

What is a MIB fitting?

Molded Inner Boot. The MIB is a popular addition to TC Flex custom AFOs. More than a liner, the MIB is preferred for its strength and comfort. Soft and intimately fitting, yet durable and nearly impossible to tear, the MIB is a perfect fit for pediatric applications.

What is Fnpt?

FNPT can refer to: Flight & Navigation Procedures Trainer. Female National Pipe Thread.

Will BSP fit BSPT?

The BSPT (tapered) male will mate with a BSPT (tapered) female, or a BSPP (parallel) female. … The BSPT connector is similar to, but not interchangeable with, the NPTF connector. The thread pitch is different in most cases, the thread angle is 55° instead of the 60° angle found on NPTF threads.

What are BSP fittings?

British Standard Pipe (BSP) is a set of technical standards for screw threads that has been adopted internationally for interconnecting and sealing pipes and fittings by mating an external (male) thread with an internal (female) thread.

How is BSP measured?

1. Measure the outer diameter (OD) of the thread (in inches)
2. Then subtract 25% from this (¼ inch) …
3. You’ll then need to make sure it is a BSP fitting so by counting the threads on your coupling, perhaps only just over ¼”, you can just multiply this by four to find the threads per inch.

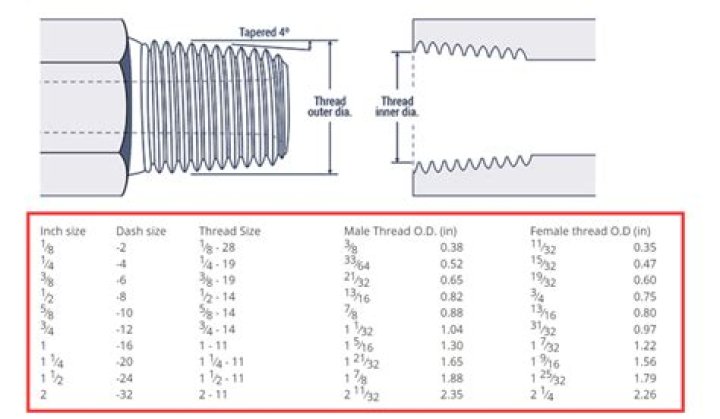

What is 13mm in BSP?

BSPP SizeMale Thread Outside DiameterFemale Thread Inside Diameter¼”13mm/0.51”11.9mm/0.47”3/8”16.5mm/0.65”15.2mm/0.60”½”20.8mm/0.82”19.1mm/0.75”5/8”22.8mm/0.90”20.8mm/0.82”

Is 3/4 BSP the same as 20mm?

Sometimes these fittings may be referred to in imperial form. For threads and PVC Pipe: half inch refers to 15mm, three quarter inch refers to 20mm, one inch refers to 25mm, one and a quarter inch refers to 32mm, one and a half inch refers to 40mm, two inch refers to 50mm.

What thread size are 22mm compression fittings?

The threads on compression fittings are usually 1/2″ BSP and 3/4″ BSP (for the 15mm and 22mm fittings).

Can you put tapered thread into parallel?

It is important to note that BSPT (British Standard Pipe – Tapered) can seal into a parallel BSP port, and Metric Tapered threads are capable of sealing into a parallel Metric port. … For a parallel thread in port application, the fitting will usually seal at the top of the thread by means of an O-ring or seal.

Can you mix thread pitch?

The limiting factor being that there are really only a couple threads engaged (but at least they have the same pitch). Screwing a BSPP into a BSPT is not recommended. All other mixing and matching of threads is technically cross-threading (although it may “appear” to fasten correctly)…

What is the difference between BSPT and BSPP threads?

BSPT is a British standard taper thread with 55 degree angle. BSPP does not need any O-ring or bonded seal to form a seal. BSPT (British Standard Pipe Taper) is similar to NPT except there are important differences. … Thus an NPT male will sometimes fit into a BSPT fitting or vice versa but they will not seal.

Is G thread compatible with R thread?

R = External tapered screw pipe thread for fits made on the thread per ISO-7 & BS-21. Per the standard the R mates with the Rc and Rp, but will also mate with the G.

What is G thread pipe?

G (supposedly from German/English “Gas”) are the cylindrical pipe threads used on originally inch based pipes. The internal (conical) pipe thread is is described as “GCon”. The size designation (like 3/8″) does not mean actual thread OD; it is the internal diameter of the pipe, on which it is used.

What is the difference between line pipe and NPT?

Both NPT and NPS have the same thread angle, shape, and pitch (threads per inch). However, NPT threads are tapered and NPS threads are straight (parallel). … Straight Pipe Threads need a gasket or O-ring to create a seal. While NPT and NPS threads will engage, they do not seal properly with each other.

What thread is PVC?

FPT (FIPT) – aka Female (Iron) Pipe Thread. This is a type of threading that is found on the inside lip of a fitting, allowing connection to a MPT or male pipe threaded end. FPT/FIPT threading is commonly used for PVC and CPVC piping systems.

What is the full form of BSW thread?

The principal features of the British Standard Whitworth (BSW) thread form are that the angle between the thread flanks is 55 degrees and the thread has radii at both the roots and the crests of the thread.
