What is JSON wire protocol

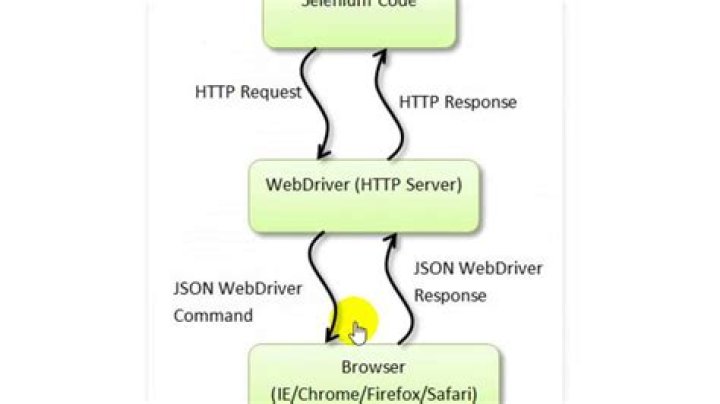

JSON Wire Protocol WebDriver utilizes a JavaScript Object Notation (JSON) wire protocol to communicate between client libraries and different driver implementations. JSON is primarily used to transfer data between a server and a client on the web.

Does Appium support JSON wire protocol?

Answer : Appium is an “HTTP Server” written using Node. js platform and drives iOS and Android session using Webdriver JSON wire protocol.

Which protocol is used for Appium?

Appium Overview At its heart, Appium is a web server written in Node. js programming language that creates iOS and Android sessions using JSON wire protocol.

What is JSON wire protocol in manual testing?

JSON Wire Protocol is an abstract specification of how automation behavior like clicking or typing or whatever you actually want to do with your automation script is mapped to selenium or appium or HTTP requests and response.

What is the difference between JSON wire protocol and W3C protocol?

WebDriver W3C Protocol in Selenium 4 In Selenium 4, WebDriver W3C Protocol replaces the older JSON Wire protocol. It essentially means that you no longer need to encode and decode the API request using the W3C protocol, and the tests can directly communicate with the web browser.

What is WD hub in Appium?

wd is the short form of WebDriver. hub refers to Selenium Grid configuration where the two components are: Selenium Grid Hub (is commonly termed as hub) Selenium Grid Node (is commonly termed as node) wd/hub is the part of the uri through which the node communicates with the hub.

What does JSON stand for?

JavaScript Object Notation, more commonly known by the acronym JSON, is an open data interchange format that is both human and machine-readable. Despite the name JavaScript Object Notation, JSON is independent of any programming language and is a common API output in a wide variety of applications.

What is bootstrap in Appium?

From the source Appium-Android-Bootstrap : JavaScript interface, and Java code, for interacting with Android UI Automator. The system allows ad hoc commands to be sent to the device, which are executed using Android’s UIAutomator testing framework.

What is UI Automator in Appium?

“UIautomatorviewer” is a GUI tool to scan and analyze the UI components of an Android application.To automate any android application using Appium, a user needs to identify the objects in AUT (Application under test).

What is the difference between Selenium 3 and Selenium 4?

In the new version of Selenium, they have made some internal changes in the API. Earlier in Selenium 3, the Chrome driver extends directly to the Remote Web Driver class. But now in Selenium 4, Chrome driver class extends to Chromium Driver. Chromium Driver class has some predefined methods to access the dev tool.

Article first time published on

What is JSON Selenium?

JSON stands for JavaScript Object Notation. It is used to transfer data between a server and a client on the web. … Each BrowserDriver (such as FirefoxDriver, ChromeDriver, etc.) has its own HTTP server.

What is Selenium protocol?

Selenium WebDriver protocol defines the ways that browser actions are executed. WebDriver is a remote control interface that enables introspection and control of user agents. It provides a platform and language-neutral wire protocol as a way for out-of-process programs to remotely instruct the behavior of web browsers.

What is Xcode in Appium?

Appium is an open source test automation framework for use with native, hybrid, and mobile web apps. It drives iOS and Android apps using the WebDriver protocol. … On the other hand, Xcode is detailed as “The complete toolset for building great apps“. The Xcode IDE is at the center of the Apple development experience.

Does Appium need selenium?

Appium is the most popular open-source framework for mobile app automation testing. … Appium uses the mobile JSON wire protocol (an extension of Selenium JSON wire protocol) to drive native, mobile web and hybrid applications. The Appium server is scripted in Node.

What is Appium latest version?

Appium Latest Version (1.16. 0 for Android and iOS.

What is W3C used for?

Created in 1994, W3C is an international community of member organizations that articulates web standards so that websites look and work the same in all web browsers. Its mission is to lead the World Wide Web to its full potential by developing standards, protocols and guidelines that ensure its long-term growth.

What is WebDriver W3C?

WebDriver is a remote control interface that enables introspection and control of user agents. It provides a platform- and language-neutral wire protocol as a way for out-of-process programs to remotely instruct the behavior of web browsers.

How is JSON used?

Uses of JSON JSON format is used for serializing and transmitting structured data over network connection. It is primarily used to transmit data between a server and web applications. Web services and APIs use JSON format to provide public data. It can be used with modern programming languages.

What are keys in JSON?

The two primary parts that make up JSON are keys and values. Together they make a key/value pair. Key: A key is always a string enclosed in quotation marks. Value: A value can be a string, number, boolean expression, array, or object. … Key/value pairs are comma separated.

What are the syntax rules of JSON?

• Data is in name/value pairs.
• Data is separated by commas.
• Curly braces hold objects.
• Square brackets hold arrays.

What is session in Appium?

A session is a medium to send commands to the specific test application; a command is always performed in the context of a session. The server will then respond with a sessionId endpoint, which is used to send more commands to interact with the application(s) being tested. …

How do I increase session timeout in Appium?

The default suggested timeout for a test run on Bitbar Testing is 10 minutes, which can be adjusted according to your personal needs up to 60 minutes. To adjust this timeout with the client-side Appium, you’ll need to familiarize yourself with a new capability and use it in your scrips – testdroid_testTimeout.

How do you use Uiautomator 2?

The way to start a session using the UiAutomator2 driver is to include the automationName capability in your new session request, with the value UiAutomator2 . Of course, you must also include appropriate platformName (= Android ), platformVersion , deviceName , and app capabilities, at a minimum.

What is Appium UiAutomator2 driver?

Appium UiAutomator2 Driver is a test automation framework for Android devices. Appium UiAutomator2 Driver automates native, hybrid and mobile web apps, tested on emulators and real devices. Appium UiAutomator2 Driver is part of the Appium mobile test automation tool.

Where is UIAutomator in Appium?

To access uiautomatorviewer: Go to the directory where android-sdk is installed. Under android-sdk -> tools -> click on uiautomatorviewer.

What is Androiduiautomator?

Answer: UIAutomator is a tool/framework that helps to automate Android application test cases.

What is the use of Appium inspector in Appium?

Appium inspection is a standard procedure to identify the UI elements of a mobile app uniquely. It works with both real devices or simulators(iOS) or emulators(Android).

What is UIAutomator?

UI Automator is a UI testing framework suitable for cross-app functional UI testing across system and installed apps. … Note: This framework requires Android 4.3 (API level 18) or higher. The UI Automator testing framework is an instrumentation-based API and works with the AndroidJUnitRunner test runner.

What are the limitations of Appium?

• Configuration and time needed to setup Appium for iOS and Android is complex.
• Only one iOS device at a time can be run in Appium.
• Automation support for Android 4.1 or lower is not present.
• Appium inspector cannot be run on Windows.

What is TestNG in selenium?

TestNG in Selenium is a Java testing framework, inspired by JUnit and NUnit. It overcomes the constraints and disadvantages of JUnit. … From simple unit testing to complex integrated testing, it is designed to simplify all our testing requirements such as functional testing, regression, end-to-end testing, and more.

Which one is the faster locator?

IDs are the safest, fastest locator option and should always be your first choice. ID’s are supposed to be unique to each element. ID locator is faster because at its roots, it calls document.
