What is inband connection

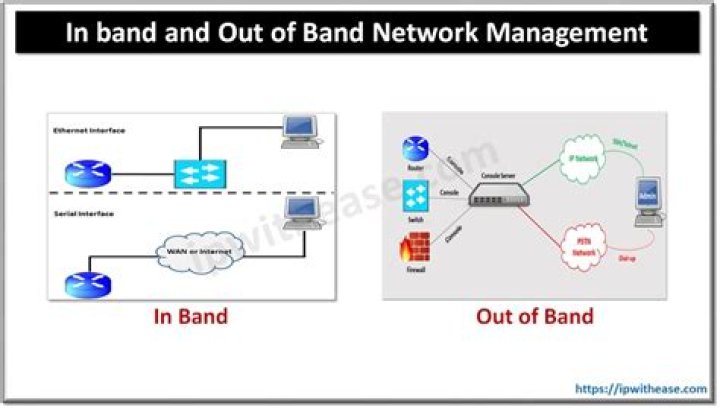

In-band refers to managing through the network itself, using a Telnet/SSH connection to a router or by using SNMP-based tools. In-band is the common way to manage the network, where actual data/ production and management traffic may use the same path for communicating with various elements.

What is the difference between in-band and out-of-band traffic flow?

While In-Band Management is the ability to administer a network via the LAN, Out-of-Band Management is a solution that provides a secure dedicated alternate access method into an IT network infrastructure to administer connected devices and IT assets without using the corporate LAN.

What is out-of-band port?

In systems management, out-of-band management involves the use of management interfaces (or serial ports) for managing and networking equipment. Out-of-band management allows the network operator to establish trust boundaries in accessing the management function to apply it to network resources.

What is an out-of-band channel?

Out-of-band (OOB) refers to a separate communication channel severed from the primary in-band channel over which the actual network communication occurs [11, 19]. OOB channel provides robustness against attacks by introducing a second, independent communication channel.

What is out-of-band router?

Out-of-band (OOB) management is a method of remotely controlling and managing critical IT assets and network equipment using a secure connection through a secondary interface that is physically separate from the primary network connection. This enables administrators to gain control even during infrastructure faults.

What means out-of-band?

Out-of-band is activity outside a defined telecommunications frequency band, or, metaphorically, outside some other kind of activity.

What is out-of-band security?

Out-of-band authentication is a type of two-factor authentication (2FA) that requires a secondary verification method through a separate communication channel. … Out-of-band (OOB) authentication is used by financial institutions and other organizations with high security requirements to prevent unauthorized access.

Why does FTP use out-of-band Signalling?

Because FTP uses two different parallel connections to transfer a file, that is why it is said to be ‘out-of-band’. It uses a control connection and a data connection in parallel. Control connection is used to send information such as user identification, password, commands to ‘put’ and ‘get’ files.

Is TCP in band or out-of-band?

TCP does not have true out-of-band data. Instead, TCP provides an urgent mode. Assume a process has written N bytes of data to a TCP socket and that data is queued by TCP in the socket send buffer, waiting to be sent to the peer.

What is out-of-band in FTP?

Out-of-band control passes control data on a separate connection from main data. Protocols such as FTP use out-of-band control. FTP sends its control information, which includes user identification, password, and put/get commands, on one connection, and sends data files on a separate parallel connection.

Article first time published on

When should you use out-of-band management?

You might want to use out-of-band management if an external company is managing some or all of your network devices. It prevents the external company from accessing the data on your network, while still allowing them to access the network devices. There are three main ways of doing out-of-band management.

What is out-of-band configuration Cisco?

OOB offers a method for connecting two routers together with a USB cable for extra redundancy in case of 4G failure. This allows you to retain out-of-band connectivity by connecting the USB port for Router A to the USB console of Router B, as well as the ability to access Router B console port from Router A.

What is BMC out-of-band access?

IPMITool out-of-band BMC Management Utility (BMU) is a utility to access Baseboard Management Controller (BMC) and perform management activities. BMU allows remote, out-of-band LAN and/or serial port power control, event log access, and console redirection.

Is http out-of-band communication?

Anything “out-of-band” refers to communications that occur outside of the main protocol, in this case anything outside of the communication between the HTTP client that is logging in and the HTTP server that is authenticating the OAuth credentials.

What is out-of-band in cryptography?

An in-band key exchange is an exchange by two or more parties of a public key over the Internet or through an existing communication channel. … On the other hand, an out-of-band key exchange is an exchange by two or more parties of a private key outside the Internet and outside of the current communication channel.

What is an out-of-band patch?

An Out-Of-Band (OOB) Patch is a security update released outside of the normal frequency. Typically, Microsoft releases patches on the second Tuesday of each month, called Patch Tuesday. … The typical reasoning for releasing an OOB patch is the emergence of an unexpected, widespread exploit.

What is out-of-band authentication examples?

One of the most common examples of out-of-band authentication is in banking transactions. Typically, a customer wishing to do an online bank transaction will be sent an SMS message by cell phone with a password.

What is out-of-band data in computer networks?

Out-of-band data is a logically independent transmission channel between a pair of connected stream sockets. … This lets users choose between receiving the urgent data in order and receiving it out of sequence, without having to buffer the intervening data.

How is TCP different than UDP?

TCP is a connection-oriented protocol, whereas UDP is a connectionless protocol. A key difference between TCP and UDP is speed, as TCP is comparatively slower than UDP. Overall, UDP is a much faster, simpler, and efficient protocol, however, retransmission of lost data packets is only possible with TCP.

What is in-band and out-of-band protocols?

In-band means sending commands in an operating system through a standard NVMe driver and commands, while out-of-band means outside of the operating system knowledge, most commonly done with a host BMC through the SMBUS protocol, but now can be done over PCIe vendor defined messages as well.

Which of the following protocol uses out of band signaling?

The most commonly used protocol containing an out-of-band data mechanism is the Internet’s Transmission Control Protocol. It implements out-of-band data using an “urgent pointer,” which marks certain data in the transmitted data stream as out-of-band.

Why do HTTP FTP SMTP and POP3 run on top of TCP rather than on UDP?

TCP is a connection oriented Protocol and is suited for applications which use high reliability and where transmission time is relatively less critical for applications than that use UDP. … Hence this is the reason why TCP is the most commonly used application protocol for HTTP,FTP,SMTP,IMAP,POP3.

What is the port number of FTP data connection?

FTP (File Transfer Protocol) The FTP protocol typically uses port 21 as its main means of communication. An FTP server will listen for client connections on port 21.

Why HTTP is called stateless protocol?

HTTP is called as a stateless protocol because each request is executed independently, without any knowledge of the requests that were executed before it, which means once the transaction ends the connection between the browser and the server is also lost.

What are the FTP commands?

CommandDescriptionpasvTells the server to enter passive mode, in which the server waits for the client to establish a connection rather than attempting to connect to a port the client specifies.putUploads a single file.pwdQueries the current working directory.renRenames or moves a file.

What is FTP in Web technology?

FTP, in full file transfer protocol, computer application used to transfer files from one computer to another over a local area network (LAN) or a wide area network (WAN) such as the Internet.

Which of the following is an example of out-of-band management?

An example configuration for out-of-band management is the use of Microsoft’s System Center together with Intel’s Active Management Technology and using Microsoft public key infrastructure.

What is the difference between management port and console port?

A management port can be used for remote management and configuration of a networking device, where as the Console Port can be used, in conjunction with a console server, such as Lantronix SLC 8000, to implement a separate dedicated network to access the network devices in case the primary network goes down.

Which two types of connections can be used for out-of-band configuration for a Cisco IOS network device?

Which two types of connections can be used for out-of-band configuration for a Cisco IOS network device? (Choose two.) Ethernet or serial connections can be used for in-band configurations. A direct connection to the device provided through the console or AUX ports is needed for out-of-band management.

What is the purpose of configuring a default gateway address on a host?

The default gateway is the path used to pass information when the device doesn’t know where the destination is. More directly, a default gateway is a router that connects your host to remote network segments. It’s the exit point for all the packets in your network that have destinations outside your network.

What is a console router?

The console port (sometimes called the management port) is used by administrators to log into a router directly — that is, without a network connection. The console must be used to install routers onto networks because, of course, at that point there is no network connection to work through.
