What is extra weft weaving

In an extra weft structure one weft yarn is used to weave a ground cloth and an additional weft is inserted at intervals to create a decorative pattern on the surface on the cloth. … The number of shafts needed depends on how complicated the pattern is going to be.

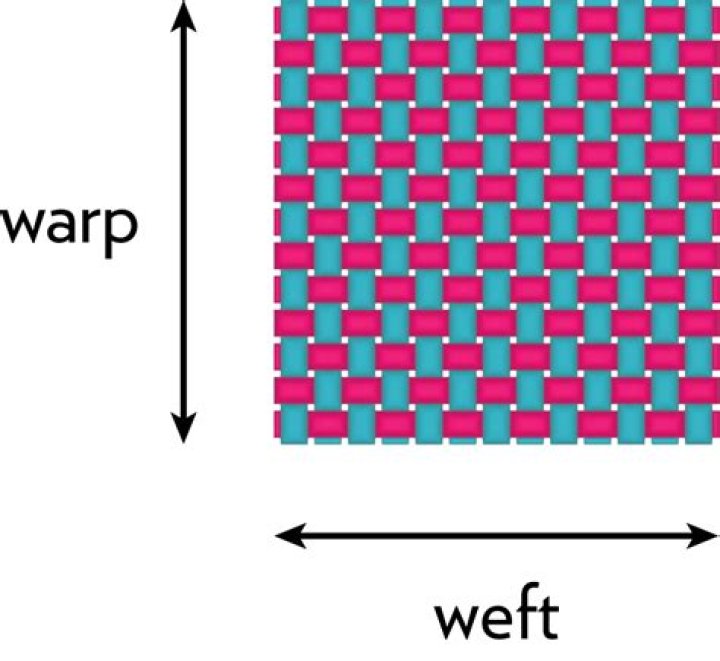

What is the difference between a warp and a weft?

Warp and fill (also called weft) refer to the orientation of woven fabric. The warp direction refers to the threads that run the length of the fabric. … The fill, or weft, refers to the yarns that are pulled and inserted perpendicularly to the warp yarns across the width of the fabric.

What is extra warp and extra weft fabric?

Extra warp, also known as supplementary warp, is where additional warp ends are inserted and used to create a decorative pattern on top of the ground cloth. The ground cloth is usually kept simple, such as a plain or twill weave, to enhance the extra warp. … This is so the ground cloth remains consistent throughout.

What is supplementary warp?

A supplementary warp is just that—an extra warp—that weaves in on the top of the background fabric or below depending on how it is treadled. This means that the fabric may have double thick- ness depending on where the supplementary warp comes in the pattern.

What are warp and weft threads explain?

Warp and weft are the two basic components used in weaving to turn thread or yarn into fabric. The lengthwise or longitudinal warp yarns are held stationary in tension on a frame or loom while the transverse weft (sometimes woof) is drawn through and inserted over and under the warp.

What does warp mean in fabric?

weaving, lengthwise yarns are called warp; crosswise yarns are called weft, or filling. Most woven fabrics are made with their outer edges finished in a manner that avoids raveling; these are called selvages. They run lengthwise, parallel to the warp yarns.

Which has more stretch warp or weft?

The warp threads are typically stronger, as they have to run the entire length of a bolt of fabric. Fabrics with warp and weft threads have the most stretch when pulled diagonally, or on the bias.

What is a double warp beam?

The Double Warp Beam consists of one warp beam and one back beam and a pair of bushings. It is located just above the regular backbeam an turns in the opposite direction. A Double Warpbeam is used when you have diffent materials in your warp, such as in some double weaves.

What is warp count?

The number of warp yarns per one inch or centimeter of fabric. This is also called sley, warp end count, ends per inch, or ends per centimeter.

What is self stitched double cloth?

These fabrics contain only the two series of threads in both directions and the stitching of the face cloth layer to the back layer is accomplished by occasionally dropping a face end under a back pick or by lifting a back end over a face pick or by utilizing both of the above systems in different portions of the cloth …

Article first time published on

What are backed fabrics?

“Backed” fabrics are characterised by an additional series either of warp or weft threads employed for the purpose of increasing their strength, weight, bulk and warmth, or any one of those properties, without affecting their surface appearance”.

What weaving method uses the warp and weft?

Finger weaving techniques include twining and braiding. Twining uses two sets of yarns. In weft twining, the warp is stretched between two bars and the weft worked across in pairs. One thread passes over a warp and the other under, with the two yarns making a half turn around each other between each warp.

How do you measure warp for weaving?

To calculate the amount of weft, you need to know warp width, the number of picks per inch, and the length of the weaving. I usually add ten percent to that number for weft take-up. (So for an 8″ wide warp woven at 20 picks per inch for 65″: 8″ x 20 x 65″ = 10,400″ divided by 36″/yd = 288 yd plus 10% = 317 yd.

Why is warp stronger than weft?

During weaving, warp is the yarns that are being stressed to maintain the tension, there will definitely have residual stress in the yarns that are in the warp direction. This eventually results in the reduction in the fabric strength.

How do you determine warp and weft without selvedge?

When a sample of fabric contains no selvedges, the warp and filling may be identified by observation of the weave: In plain weaves, a greater number of yarns running in one direction indicate the warp.

What is a blanket warp?

The warp threads (those forming the vertical threads running through the blanket) are first made up on a separate warping frame. … Usually the warp threads are neutral colours. The weft threads (those that weave horizontally in and out of the warp) are where most of the colour combinations are created.

How do you calculate warp count?

1. Warp Weight in Kg = (Total Ends * Tape Length in meters)/(1693.6 * Warp Count)
2. Weft Weight in Kg = (R.S in centimetres * cloth length in metres * PPI )/(4301.14 * weft Count)
3. Cloth weight in GSM = {EPI/Warp Cout)+(PPI/Weft count)}* 25.6.
4. oz (ounce ) per sq. yard = GSM(Grams per sq. meter)/34.

How do you use a second warp beam?

1. Use two beams when the two warp yarns “take up”differently.
2. Put each warp on its own beam when the two warps together would be too bulky or large for one beam’s capacity.
3. Make separate warps when there are many color changes in either warp.

What is a two beam loom?

place in history of textiles In textile: Two-bar. …is a representation of a horizontal two–bar (or two-beamed—i.e., warp beam and cloth beam) loom pictured on a pottery dish found at Al-Badārī, Egypt. The warp is stretched between two bars or beams, pegged to the ground at each of the four corners.

How many warp beams are used for double cloth?

Compound fabrics or Double-faced fabrics are a form of double cloth made of one warp and two sets of wefts, or (less often) two warps and one weft.

How does double weave work?

Double Weave is a cloth with two sides, so you have to make a warp with double the ends. One set of harnesses manage one layer and a different set of harnesses manage the 2nd layer. You thread your warp ends alternately. One end on the top layer and then thread one end on the bottom layer.

What are the types of double cloth?

Double cloth can be made up with wool, silk, cotton, viscose or polyester that depends upon the end use.

What is double cloth used for?

If you’ve ever worn anything reversible, you know what double cloth is. Just like its name implies, it’s two different fabrics bound together with yarn and used to make coats, blankets, furnishing fabrics, brocades and reversible clothing.

What is cotton double cloth?

Double cloth is two very lightweight, somewhat sheer, pieces of fabric stitched together to make a completely opaque textile. Both layers of fabric are more loosely woven than your standard one-layer woven fabric. … Double cloth is typically 100% cotton.

How is spacer fabric made?

Unlike regular, 2D fabrics, Spacer uses two separate fabrics, joined by microfilament yarn, to create a breathable, 3D “microclimate” between layers. Heat and vapor leave the body, moving to this highly permeable layer. … Spacer fabric is everywhere!

What are the basic elements of woven design?

• Weave Plan: Weave plan illustrates the interlacing of ends & picks in the fabric under consideration. …
• Drafting Plan:
• Lifting Plan: …
• Denting Plan:

What is warping a loom?

Warp are all vertical threads you stretch between top and bottom beam of the loom. You will use them to weave weft – horizontal threads – between them. It’s important that your warp is stretched properly and has a good tension.

How do you describe a warp in basket weaving?

In basket weaving, the warp refers to the passive, usually vertical element. The weft is the active element that in- tersects with the warp. The weft is usually horizontal in basket weaving. In the photos below, the weft is identified by a pink arrow, and the warp is identified by an orange arrow.
