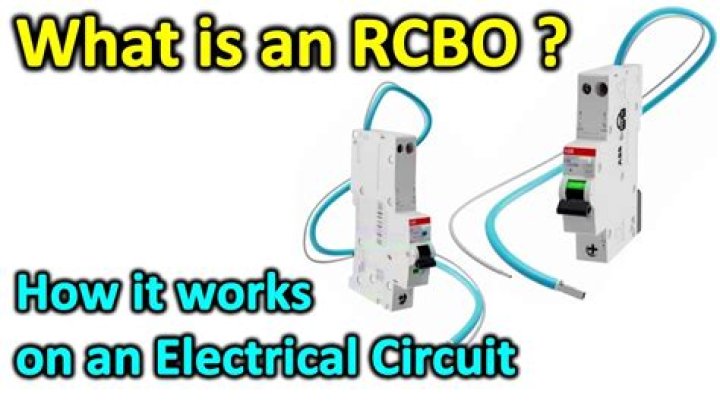

What is electrical Rcbo

The RCBO combines the functionality of an MCB and RCD/RCCB. When there is a current leakage, the RCBO trips the entire circuit. Consequently, internal magnetic/thermal circuit breaker components can trip the electronic device when the circuit is overloaded.

What is an RCBO used for?

RCBOs are commonly used in applications where there is the need to combine protection against overcurrents (overload and short-circuit) and protection against earth leakage currents. RCBOs help in sensing this kind of faults and trip the circuit ensuring complete protection of the people and connected equipment.

Should I use MCB or RCBO?

MCBs can provide protection against overcurrent and short circuits only. RCBOs can provide protection against overcurrent, short circuit and earth leakage currents. … RCBOs can protect against earth fault, electric shocks that MCBs may not do.

What's the difference between RCBO and MCB?

MCB stands for miniature circuit breaker while RCBO stands for a residual current circuit breaker with overload protection. MCB can provide protection against overcurrent and short circuit only while RCBO can provide protection against overcurrent and earth leakage.

What is the advantage of RCBO?

RCBO is an effective way of providing reliable, discriminating residual current protection. Also, the elimination of separate fuses or circuit breakers substantially reduces installation time and space requirements.

Which is better RCD or RCBO?

RCDs can protect against electric shocks, residual currents, and earth faults. On the other hand, RCBOs can do what RCDs can do and protect a circuit from short circuits and overload. RCBOs are essentially a combination of MCB and RCCB. As such, it can protect overload and short circuits.

Are RCBOs required on lighting circuits?

From Google: “There is no regulatory requirement for a lighting circuit to be RCD protected, per se, but if there is any new wiring buried <50mm deep in walls, that would invoke a requirement for RCD protection.”

Can you replace an MCB with an RCBO?

If you swap a MCB for an RCBO like for like using the same current ratings as the MCB and you check the cable sizes are in fact correct for the breakers rating then it is NOT notifiable with building control or Part P registration but you have to be a qualified electrician and it must be installed safely as per the …

Can you mix MCB and RCBO?

Yes, but only if there is not already an 30mA RCD covering the section of busbar you are mixing them on, ie dual RCD or split load board. On a main switch only board mix and match as you wish.

Is an RCBO and RCD?

RCBO (Residual Current Circuit Breakers with Overcurrent Protection) devices are a combination of an RCD (Residual Current Device) and MCB (Miniature Circuit Breaker) in one. An RCD detects Earth Leakage, i.e. current flowing where it shouldn’t, switching the circuit off where there is an Earth fault current.

Article first time published on

Can you use RCBO as main switch?

1 – can you use the RCD as a main switch for the installation – yes, all RCCB’s that meet BS EN 61008 are rated for isolation.

Which MCB is best for home?

The best-suited type of MCB for domestic appliances, where the current load is medium, is type C. Type C MCB trips off when the flow of current is 5-10 times more than normal. Type D MCB has a high resistance as they can withstand up to 10-20 times the current rate.

What is the difference between Rccb and RCBO?

RCCB will only identify current leakage from circuit. On the other hand, RCBO can notice over current and current leakage from the circuit. The device recognizes over current in the same manner as MCB does. RCBO is usually utilized as replacement for MCB in consumer unit.

What is a RCBO consumer unit?

RCBO consumer units are supplied with at least one RCBO device, which is used to protect the circuit from both current overload and earth leakage. The device will trip when an imbalance is detected, providing both users and electrical devices with protection against faults and electric shocks.

What are the different types of RCBO?

An RCBO is a combined circuit-breaker (CB) and residual current device (RCD). It gives protection against overload and/or short circuit. Just as there are different types of circuit-breaker (Types B, C and D), so there are also different types of RCD (Types AC, A, F and B).

Do bathroom lights need RCD protection?

All circuits in a bathroom must be protected by a RCD (Residual Current Device). They will need to be connected to the consumer unit and protected by an RCD.

Should outside lights be RCD protected?

Rcd’s are not required for external lighting it is not a requirement of BS 7671. RCD’s are required for supplies for portable equipment outdoors reg, 471-16.

Can LED lights cause RCD to trip?

Hence one light will not trip the RCD but several will, once the total leakage reaches 30ma. It’s also possible that one or more appliances is also leaking a small value and the lights bring up the total value. try unplugging or isolating as many appliances as possible and then try the lights.

Can I fit RCBO in a RCD consumer unit?

Yes but you could also install 30mA RCBO on the house socket circuit.

Do all domestic circuits need RCD protection?

411.3. 4 specifies that additional protection from a 30mA RCD is now required for all lighting circuits in domestic properties, without exception.

When would you use a RCBO?

The primary functions of RCBOs are to ensure protection against earth fault currents, overload, and short circuit currents. It is recommended that an RCBO be attached to each separate circuit, meaning that a fault in one circuit will not affect the functioning of the others.

Do I need a garage consumer unit?

You would need a Consumer Unit (also known as a Consumer Control Unit), if you wanted to have multiple circuits, and to be able to control the circuits individually.

Do all Mcbs fit all consumer units?

Not all mcbs fit all consumer units – they should all be standard, but they aren’t always. Not heard of Steeple as a brand/manufacturer, so can’t advise on what’ll fit with what. You could split the tails with a double pole service block and run additional tails to a new smaller cu.

Can I replace an MCB?

You can only upgrade the MCB providing the cable is the correct size and the installation method of the cable has to be taken into account.

Where does the white cable go on RCBO?

You need to trace the other wires in your cable. One will be bare or non existent, the other should be white. The one that was connected to the breaker should be black. The white one should be connected to the neutral bus bar.

Will RCD work without earth?

The RCD continuously monitors the Live (Active) and Return (Neutral) wires to see they are in balance, that is, inflow = outflow. Since the Earth is not part of this sensing, technically the RCD can protect without an Earth.

What does ACB stand for in electrical?

Electrical Safety Device: Air Circuit Breaker (ACB)

Can I use RCBO for shower?

Wherever possible showers should always be protected by an RCBO, this is a device that does the job of both an MCB, to provide overload protection and short circuit protection, and an RCD to give Earth Fault protection. … Electric showers should always be installed using an RCD or an RCBO.

Can an RCBO replace an RCD?

However, you can meet these specifications and save space on the circuit breaker panel: on some circuits, you can replace two devices (RCD and circuit breaker) with a single device (RCBO). This will protect these circuits against current leaks and overloads at the same time.

Is an RCD and isolator?

Brightspark New Member. A 100amp isolator does not offer overcurrent protection but can safely isolate 100 amps when needed. A 80amp 30ma RCD offers no overcurrent protection either, just earth leakage, again the 80amps just means it can safely switch that load.

Which MCB is best for Geyser?

Type “B” Curve MCB’s are meant for resistive type of Loads like Heaters, Geysers, Microwave Ovens, Heat Convector, Toasters.
