What is drawdown in a well

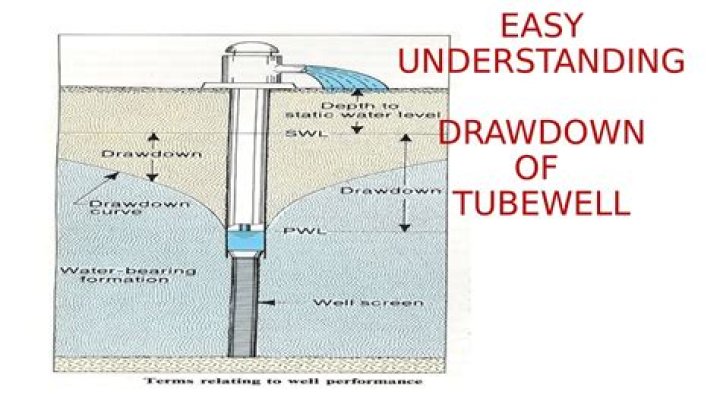

Drawdown: The drawdown in a well is the difference between the pumping water level and the static (non-pumping) water level. Drawdown begins when the pump is turned on and increases until the well reaches “steady state” sometime later.

How do you calculate water well drawdown?

Subtract the measurements you collect as the pump is running from the static water level. The difference is the drawdown. For example, if the static water level is 1 foot below the top of the casing and the water level after one hour is 3 feet below the top of the casing, the drawdown at one hour of pumping is 2 feet.

What is a good flow rate for a well?

5 gpm (two fixtures running simultaneously at 2.5 gpm) is a good estimate of peak demand, for the typical household. Water wells that reliably yield 5 gpm should be able to meet peak and daily needs for most residences. Wells yielding less than 5 gpm, however, are sometimes the only water source available.

What causes excessive drawdown in a well?

The longer and harder you pump the well, the greater the depth and distance of this zone. If you install a pump that has a greater capacity than the aquifer, groundwater is removed at a faster rate than the aquifer can naturally replenish itself and, over time, “dewatering” occurs.

When a well is heavily pumped?

When a well is over pumped, water is withdrawn faster than it is coming in and the water level in the well drops dramatically as the geology around the well drains. The longer this goes on the more widespread the dewatered area is.

What happens to the water table near a well?

What happens to the water table near a pumped well? When water is pumped form a well, the water table is typically drawn down around the well into a depression shaped like an inverted cone known as a cone of depression. In turn, this lowers the water table around the region of the well.

What is radius of influence of a well?

Radius of Influence means the radial distance from the center of a well bore to the point where there is no lowering of the water table or potentiometric surface because of pumping of the well; the edge of the cone of depression.

How much water will drain a well?

Typical numbers for well recovery rates (if measured honestly over a 24-hour period) run from a fraction of a gallon per minute (a terribly poor well recovery or flow rate) to 3 gallons a minute of water flow (not great but usable) to 5 gallons per minute (just fine for residential use) to more than 10 gpm (a great …

How deep should a well be for drinking water?

For drinking water wells it’s best to be at least 100 feet deep so that surface contaminants cannot enter the well. The average well depth for private homes is between 100 to 800 feet [2]. You may need a deeper or shallower well if your area has different geology than another region of the country.

How do I increase gpm on my well?

1. Adjust Your Pressure Tank Settings. …
2. Consider a Pump with a Higher Flow Capacity. …
3. Upgrade to a Constant Pressure System. …
4. Install a Water Pressure Booster Pump.

Article first time published on

Is 2.5 gpm a good well?

Also known as “flow rate”, GPM is a measure of how many gallons of water flow out of your shower head each minute. Since 1992, a maximum of 2.5 GPM is the federally mandated flow rate for new shower heads. This means no more than 2.5 gallons of water should flow out each minute.

What is the average gpm for a house?

This is a loaded question, that really comes down to preference and the number of individuals that are in the home. The average household needs 100 to 120 gallons per person per day, and a flow rate of about 6 to 12 gallons per minute.

Can you overuse a well?

Overuse of groundwater can cause wells to dry up. This often leads to expensive and ultimately futile attempts to keep up with the dropping water table by drilling deeper and deeper wells. Other serious consequences can also follow groundwater overuse.

What happens if you pump too much water too quickly from an aquifer?

Pumping too much water too fast draws down the water in the aquifer and eventually causes a well to yield less and less water and even run dry. In fact, pumping your well too much can even cause your neighbor’s well to run dry if you both are pumping from the same aquifer.

What causes a well to stop producing water?

It could be a broken water line from the well to the house — usually you’ll have a wet area between the well head and the house — a bad check valve just above the submersible pump at the bottom of the well, a bad connector leaving the well casing or even a broken water line inside the well casing.

What is perennial yield?

Perennial yield: the rate at which water can be withdrawn perennially under specified operating conditions without producing an undesired result (such as loss in quality, uneconomic pumping conditions, etc.)

What is well radius?

In this work, the radius of investigation of a pumping well is qualitatively defined as the maximum distance from the well up to which aquifer properties have a significant influence on drawdown at the well (Fig. 1b).

What is an artesian well and how is it related to the piezometric surface?

Wells that tap these confined aquifers are “artesian wells”. If altitude that the pressurized aquifer pushes water up a well tapping it is the “piezometric level”.

How do I know where my water table is?

The most reliable method of obtaining the depth to the water table at any given time is to measure the water level in a shallow well with a tape. If no wells are available, surface geophysical methods can sometimes be used, depending on surface accessibility for placing electric or acoustic probes.

How far down is water table?

Groundwater may be near the Earth’s surface or as deep as 30,000 feet, according to the U.S. Geological Survey (USGS).

Which rocks would not make a good aquifer?

Rocks such as granite and schist are generally poor aquifers because they have a very low porosity. However, if these rocks are highly fractured, they make good aquifers. A well is a hole drilled into the ground to penetrate an aquifer.

Do deeper wells mean better water?

In general, when it comes to water quality and well depth, there’s one golden rule: the deeper the well, the better the water quality. As you go deeper down, there’s a higher chance that the water you encounter will be rich in minerals.

What's the difference between a shallow well and a deep well?

Deep wells have higher protections against potential surface contaminants. … The equipment involved in these types of wells is less visible than with shallow wells, which require an above-ground well housing to contain the well pump. Their water tends to last longer and require less monitoring for quality.

How far away from your house can your well be?

Any contamination in your neighbor’s well can travel into your well. Some activities legally require more than a 50-foot zone of protection. As a general guidance, personal drinking water wells should have a minimum horizontal distance of at least 10 feet and preferably 25 feet from such boundaries.

What does over pumping of aquifers really mean?

This is a fairly common practice globally, but issues arise when the amount of water pumped out of the aquifers is greater than the amount of water flowing into the aquifers. When over-pumping occurs, large swaths of soils underground that previously were saturated with water are now left dried out permanently.

Can a water well collapse?

If your well suddenly starts producing much less water and the water coming out of it is full of sediment, it may have collapsed. Wells are installed with a casing that prevents loose soil from entering the water. … Earthquakes can also cause well casings to collapse when the soil shifts violently.

Is 6 gallons a minute a good well?

For most single-family homes, a minimum flow of 6 GPM is suggested from a well or spring. This flow would provide 360 gallons of water each hour, which would be sufficient to meet most home water peak demands.

What is normal water pressure for a house with a well?

Normal well water pressure should fall between 40 and 60 psi, so if your pressure is outside the normal range, adjust the pressure switch.

How fast does well water replenish?

Well water can replenish at a rate of 5 gallons per minute on average, but it will vary. It depends on the age of your well, how long you’ve been using it, the well’s location or geology, and the aquifer the well taps into to replenish its water level.

How deep should my well be?

In order to allow for maximum ground filtration to remove impurities, your well depth should be at least 100 feet. As a general rule, the deeper you drill, it’s more likely that there will be minerals present.

How do I increase my well yield?

1. Drill Deeper. If your well is otherwise properly set up, drilling several feet deeper may improve the yield. …
2. Shock and Clean. …
3. Add a Storage Tank. …
4. Add a Secondary Well. …
5. Reduce Your Water Use.
