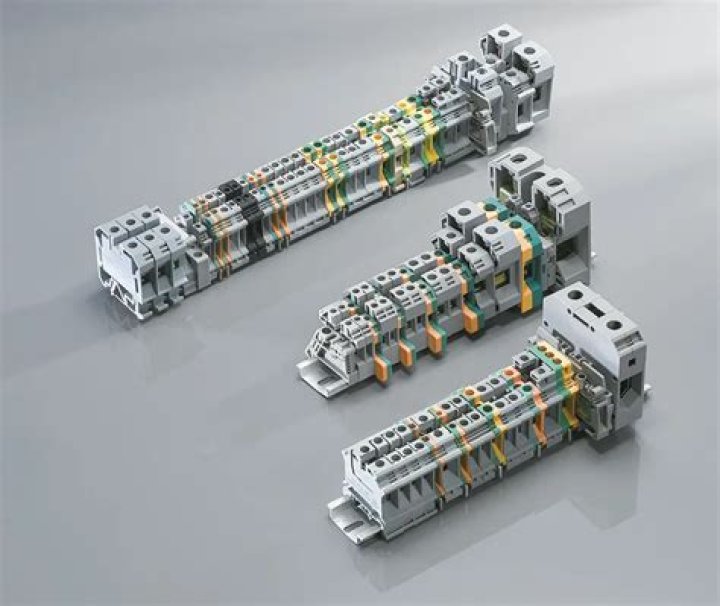

What is DIN terminal block

DIN rail mounted electrical terminal blocks that provide a means of connecting and identifying two or more wires.

How do I use DIN terminal blocks?

To use a terminal block connector, it is necessary to connect it to your DIN rail. Once you have selected a fully compatible connector, clip it onto the rail and then mount it to the equipment panels or enclosures. Finally, connect the requisite wiring.

What is terminal block plug?

Terminal blocks are connectors that terminate a single wire and connect it to a circuit or other system. … Terminal blocks are available as rows, but each terminal connects to only a single wire.

What are the types of terminal blocks?

BARRIER STRIPS.
MODULAR TERMINAL BLOCKS.
PCB TERMINAL BLOCKS.
POWER DISTRIBUTION BLOCKS.
TERMINAL BLOCK & STRIP ACCESSORIES.

What is a PCB terminal block used for?

PCB terminal blocks are modular, insulated devices that mount on printed circuit boards (PCBs) and secure two or more wires together. Terminal blocks are used to secure and/or terminate wires and, in their simplest form, consist of several individual terminals arranged in a long strip.

Can you use terminal blocks in residential wiring?

The applications of terminal blocks are wide-ranging, but essentially they’re used wherever you need to connect electrical systems safely. … They are designed to secure and organise wire connections, but at the same time provide easy access to these connections for maintenance or for upgrading connections and systems.

What are DIN rails used for?

DIN rails are the metal rails inside an electrical enclosure that are used to mount circuit breakers and other types of electrical equipment. Although DIN rails have a relatively simple design, they’re extremely important for the installation, maintenance and operation of electrical equipment.

What amp terminal block should I use?

It is best practice to use a terminal block that is rated for at least 150% of the max current that is expected in the system.

Where are terminal blocks used?

Terminal blocks are used to secure and/or terminate wires and, in their simplest form, consist of several individual terminals arranged in a long strip. Terminals are useful for connecting wiring to a ground or, in the case of electrical power, for connecting electrical switches and outlets to the mains.

Are connector blocks safe?

Most terminal blocks will be certified and/or designed to UL and/or IEC safety standards. Each agency uses a different standard that a terminal block must adhere to, so engineers will often find both ratings on a datasheet with differing values.

Article first time published on

How do you select a terminal block?

A good rule of thumb is to select a terminal block that has a current rating of at least 150% of the system’s expected maximum current. The voltage rating should also be greater than the maximum system voltage. When thinking about this, voltage surges must be taken into consideration to prevent damaging the connection.

What amp connector block do I need for sockets?

15 amp ones will be sufficient and will be easier to get into the space than 30 amp ones, also will make a better connection to the cables.

What is a Wago connector?

Wago connectors enable to quick and easy joining of two or more pieces of electrical wire together, offering a fuss free solution to save time on the job. They are reusable and feature integrated test points as well as being vibration proof, providing a reliable and secure connection.

What is DIN mounting?

DIN rails are a global industry standard component rail-mounting system used for securely attaching electrical and industrial control products, such as circuit breakers, terminal blocks and electronic enclosures.

What does DIN in DIN rail mean?

In this context, ‘DIN’ is an acronym that stands for Deutsche Institut für Normung, which translates into English as ‘German Institute of Standards‘. The now-familiar rack-mounting system we see supporting components of all kinds in many industrial settings was first devised by the Germans in the late 1920s.

What is DIN rail enclosure?

DIN rail enclosures are a protective case for protecting electrical devices and components. They enable electronic devices to be mounted onto equipment racks. Also known as top hat rail enclosures, DIN rail enclosures are mounted onto a standard sized metal rail within a rack.

Is it OK to use a junction box?

Mistake: No electrical box | Never connect wires outside of electrical boxes. Junction boxes (or a J box) protect the connections from accidental damage and contain sparks and heat from a loose connection or short circuit.

What is the difference between a junction box and a terminal box?

Terminal box is used for specific connections, no space for future expansion or does not require expansion of connections in future. On the other hand, junction box is with minimum specific size, plenty of woking space. Future expansion can also be planned for new connections.

Can you cut terminal blocks?

Feature: * The terminal block is designed to fasten the terminal wires for various devices. … * Terminal Block Strip can be easily cut to shorter lengths if required.

How do DIN connectors work?

A DIN connector encompasses several types of cables that plug into an interface to connect devices. It has an architecture that is composed of multiple pins that are within a protective circular sheath. Typically, a full-sized DIN connector has three to 14 pins with a diameter of 13.2 millimeters.

Are all DIN rails the same size?

Standard DIN Rails are available in 35mm (7.5 and 15mm deep), 32mm and 15mm widths and are supplied in 1 m (3’3″) and 2 m (6’6”) lengths.

How many amps is a ceiling light?

The relationship is simple: Amperage = Watts / Volts. So to calculate the amperage drawn by a light fixture or other electrical device, divide its power consumption by the voltage of your household current. For example, an electric light with three 60-watt light bulbs on a 120-V circuit draws 180W / 120V = 1.5 amps.

How many amps does a light circuit need?

Lighting circuits do not require large currents. Typically, a circuit breaker or fuse of 6 amps is used. The conductors in lighting cables therefore need not be very thick. One 100 Watt bulb uses less than half an amp as shown below.

What AMP is a ceiling rose?

Ceiling Rose and Flex with LAMP Holder 250V 6 AMP (Pack of 100)

Are choc blocks maintenance free?

Wago connectors are a simple solution for hidden connections, which can be maintenance free and replace junction boxes, terminal strips and block (choc block). The company prides itself on continuously keeping on top of industry trends and remaining one step ahead.

Is it OK to use a junction box to extend wiring?

Yes. You can definitely use a junction box to extend your wiring. To do this, start by turning off the power.

Can you extend cables in a socket?

2 Answers from MyBuilder Electricians If your leaving the sockets where they are use back box extensions, this will keep everything in a fire zone. Then crimping new cables of the same size 2.5mm for the sockets and 1mm for the lights or use Wago connectors as all of the connections will be accessible. Hope this helps.
