What is cyclic pitch

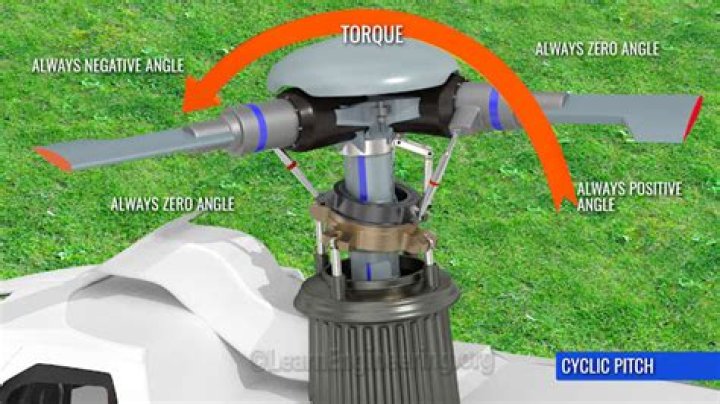

Cyclic pitch is the individual angling of the blades on each revolution of the rotor. This affects the roll of the craft, moving the nose upward or downward or rolling the craft from side to side. Collective pitch is the angling of all blades by an equal amount in unison.

What is cyclic pitch control?

The cyclic pitch control (or simply “cyclic”) is usually projected upward from the cockpit floor, between the pilot’s legs or between the two pilot seats in some models. [Figure 3-4] This primary flight control allows the pilot to fly the helicopter in any direction of travel: forward, rearward, left, and right.

What is cyclic pitch in RC helicopter?

Cyclic roll is responsible for moving the helicopter left and right or roll left and right. Same as the ailerons making a plane bank or roll to the left or right. Cyclic pitch is responsible for moving the helicopter forward and backward. Same as the elevator on an airplane pitches the nose of the airplane up and down.

What is cyclic pitch variation?

Definition of cyclic-pitch control : control of the lateral and longitudinal motion of a helicopter by means of an adjustable device that varies the pitch of the rotor blades during each rotation cycle so that there can be forward, backward, or lateral motion.

What does the cyclic do?

The cyclic is used to control the main rotor in order to change the helicopter’s direction of movement. In a hover, the cyclic controls the movement of the helicopter forward, back, and laterally.

Can a helicopter auto hover?

TLDR – Some modern helicopters are equipped with autopilot systems that allow the rotorcraft to automatically hover in place. However, helicopters are inherently less stable compared to airplanes, which restricts the ability of the autopilot system to completely control flight.

What is the difference between cyclic pitch and collective pitch?

Cyclic pitch is the individual angling of the blades on each revolution of the rotor. This affects the roll of the craft, moving the nose upward or downward or rolling the craft from side to side. Collective pitch is the angling of all blades by an equal amount in unison.

How do helicopter move forward?

This kind of directional flight is achieved by tilting the swash plate assembly with the cyclic, which alters the pitch of each blade as it rotates. As a result, every blade produces maximum lift at a particular point. … The unbalanced lift causes the helicopter to tip forward and move in that direction.

How does a helicopter fly?

Unlike airplanes, helicopters feature spinning wings called blades or rotors on top. As a helicopter’s blades spin, they create a force called lift that allows the helicopter to rise into the air. … The rear rotor can face different directions, allowing the helicopter to move forward, backward, and sideways.

What are the 4 types of helicopter vibration?

• High gross weight.
• Low RPM.
• High density altitude.
• Steep or abrupt turns.
• Turbulent air.

Article first time published on

What is cyclic gain?

Cyclic Gain (under Setup ->Swash -> Expert) is a rather poor translation, it should have been Cyclic Throw Limit or simply Cyclic Limit. Its about same as he limit for the tail, how much physical movement you get. Gyro gain is same as “gain” on tail, i.e. higher gain = firmer main rotor, too high = wag. Reply Quote.

How high can a helicopter fly?

Turbine-engined helicopters can reach around 25,000 feet. But the maximum height at which a helicopter can hover is much lower – a high performance helicopter like the Agusta A109E can hover at 10,400 feet.

What are helicopter feet called?

Bear paws, floats and pontoons are also fairly common. Bear paws are attached to the skids and used for helicopters landing off airport on uneven, unstable and soft terrain helping with overall stability.

How does a pilot compensate for blowback?

The pilot uses cyclic feathering to compensate for dissymmetry of lift allowing him or her to control the attitude of the rotor disk. Figure 2-42. To compensate for blowback, move the cyclic forward. Blowback is more pronounced with higher airspeeds.

How is dissymmetry of lift correct?

The tail rotor experiences dissymmetry of lift during forward flight, because it also has advancing and retreating blades. Dissymmetry is corrected for by a flapping hinge action. Two basic types of flapping hinges, the delta and the offset hinge, are used on most contemporary helicopters.

Can a helicopter do a roll?

Yes. Helicopters can do a barrel roll and can loop the loop, both of which involve momentarily flying upside down.

What is rotor pitch?

propeller, the rotor has a pitch angle, which is the angle between the horizontal plane of rotation of the rotor disc and the chord line of the airfoil. The pilot uses the collective and cyclic pitch control (see below) to vary this pitch angle.

Can a helicopter fly without power?

Helicopters can glide in case of an emergency (engine failure) albeit in a manner much different than fixed-wing airplanes. Though helicopters do not have any fixed wings, their rotor blades can act like rotating wings, making sure sufficient lift is available for the helicopter to glide till safe landing.

Is tip the hat a real helicopter move?

It turns out that this is an actual technique for getting a helicopter into tight spaces. American helicopter pilots call it “tipping the hat.” It was invented in Vietnam, where pilots used it to get into small clearings below the jungle canopy.

Does a Huey have auto hover?

Yes, advanced flight directors and autopilots for helicopters can control the aircraft in all axes, and often they have modes for hovering built in, including maintain altitude, lateral veloctiy hold, hover, and/or autolevel.

Do helicopters have autopilot?

Originally Answered: Do helicopters have autopilot? Yes, they do. However, they are far more complex as helicopters require greater operator control than do standard aircraft. The autopilots come in two-axis and four-axis systems, depending upon the needs of the pilots and the company which purchases the craft.

What do you mean by Aeroplane?

An aeroplane is a vehicle with wings and one or more engines that enable it to fly through the air. [British]regional note: in AM, use airplane. Synonyms: plane, aircraft, jet, airplane More Synonyms of aeroplane.

What fuel do helicopters use?

Aviation kerosene, also known as QAV-1, is the fuel used by airplanes and helicopters equipped with turbine engines, such as pure jet, turboprops, or turbofans.

Can a helicopter fly on Mars?

Ingenuity is a small robotic helicopter operating on Mars as part of NASA’s Mars 2020 mission along with the Perseverance rover, which landed on February 18, 2021. … As of December 15, 2021, the helicopter has made 18 successful flights.

Can a helicopter fly at 90 degrees?

Scientists have also fiddled with the main rotor assembly in an attempt to simplify one of the most complex parts of a helicopter. … But when it’s airborne, the pilot can tip the rotors forward 90 degrees, enabling the machine to fly like conventional turboprop airplane.

Can a helicopter fly in reverse?

Unlike an airplane, a helicopter can fly backwards or sideways. It also can hover in one spot in the air without moving. This makes helicopters ideal for things an airplane cannot do.

Why do helicopters fly nose down?

To move the helicopter in any direction, the rotor disk must tilt and begin pushing air in a lateral direction. This is known as thrust. To accelerate the helicopter forward and gain airspeed the pilot must push forward on the cyclic control which tilts the disk forward. … This is why a helicopter takes off nose down.

Can a helicopter fly in the rain?

Helicopters can fly just fine in the rain, and in conditions way worse than prevailed in Paris on November 10. First, about helicopters and weather. … There is nothing special about the rain-worthiness of the helicopter any president normally uses. In principle, any helicopter can fly in clouds or rain.

Why do helicopters take off backwards?

Helicopters take off backward to allow the pilot to keep the helipad in sight in case they need to re-land in an emergency. When taking off vertically, the helipad disappears out of sight around 30ft to 50ft up, backing up allows the pilot to keep the helipad in sight through the chin bubble window.

How does an Aeroplane fly?

Airplanes fly because they are able to generate a force called Lift which normally moves the airplane upward. Lift is generated by the forward motion of the airplane through the air. This motion is produced by the Thrust of the engine(s).

What is a flapping hinge?

The horizontal hinge, called the flapping hinge, allows the blade to move up and down. This movement is called flapping and is designed to compensate for dissymmetry of lift. The flapping hinge may be located at varying distances from the rotor hub, and there may be more than one hinge.
