What is core dump in Java

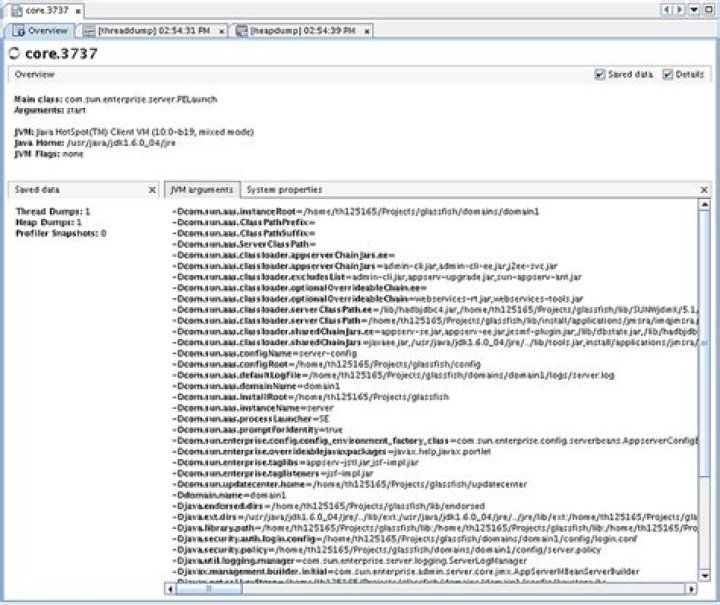

A core dump is a binary file capturing the entire heap contents at the moment the dump is captured. When you load a core dump in Java VisualVM, a node for the core dump appears below the Core Dump node. To view an overview of the core dump, right-click the core dump node and choose Open.

What is in a core dump?

In computing, a core dump, memory dump, crash dump, system dump, or ABEND dump consists of the recorded state of the working memory of a computer program at a specific time, generally when the program has crashed or otherwise terminated abnormally.

Can we delete core dump files in WebSphere?

Short answer: yes, it’s safe to delete them, but you should find out why they’re appearing, as it could indicate that your application is not running correctly.

What is Java core files?

A Javacore file is a formatted and pre-analyzed text file that is created by the JVM during an event or created by manual intervention. A Javacore file contains vital information about the running JVM process, such as: The JVM command line. Environment information. Loaded libraries.

What is the use of core dump?

A core dump is the printing or the copying to a more permanent medium (such as a hard disk ) the contents of random access memory ( RAM ) at one moment in time. One can think of it as a full-length “snapshot” of RAM. A core dump is taken mainly for the purpose of debugging a program.

Why is it called core dump?

A process dumps core when it is terminated by the operating system due to a fault in the program. The most typical reason this occurs is because the program accessed an invalid pointer value. Given that you have a sporadic dump, it’s likely that you are using an uninitialized pointer.

Where are my core dumps?

By default, all core dumps are stored in /var/lib/systemd/coredump (due to Storage=external ) and they are compressed with zstd (due to Compress=yes ). Additionally, various size limits for the storage can be configured. Note: The default value for kernel. core_pattern is set in /usr/lib/sysctl.

How do I make a core dump?

1. Check core dump enabled: ulimit -a.
2. One of the lines should be : core file size (blocks, -c) unlimited.
3. gedit ~/. …
4. Build your application with debug information : …
5. Run application that create core dump (core dump file with name ‘core’ should be created near application_name file): ./application_name.

What is difference between core dump and crash?

Core files are just a process dump (image from physical memory) when the process terminates abnormally. … Crash-dump is also similar to core-dump but instead of dumping for the process failure, it creates the memory dump for Operating system crash/failure.

Where is core dump file created?

By default, the core dump is created in the current working directory of the process and the name of the core dump file is core. pid, where pid is the process id of the crashed Java process.

Article first time published on

How do I stop a heap dump in Websphere?

How to stop Java Core Dumps from appearing in your Websphere profile root. Solution is to add Xdump:none which will turn off the IBM JDK defaults.

Where is Java heap dump created?

By default the heap dump is created in a file called java_pidpid. hprof in the working directory of the VM, as in the example above. You can specify an alternative file name or directory with the -XX:HeapDumpPath= option.

What is heap dump?

A heap dump is a snapshot of all the objects in the Java Virtual Machine (JVM) heap at a certain point in time. The JVM software allocates memory for objects from the heap for all class instances and arrays.

What is a heap dump file?

A heap dump is a snapshot of all the objects that are in memory in the JVM at a certain moment. They are very useful to troubleshoot memory-leak problems and optimize memory usage in Java applications. Heap dumps are usually stored in binary format hprof files.

Is it safe to delete heap dump?

You can safety delete heapdump files. The only issue will be that they cannot be later analyzed if you need analyzis of it.

How do you analyze a core dump?

With a core file, we can use the debugger (GDB) to inspect the state of the process at the moment it was terminated and to identify the line of code that caused the problem. That’s a situation where a core dump file could be produced, but it’s not by default.

What is computer dump?

Dumping refers to the cleaning of stored data from the core memory area of a computer into trash or somewhere else in an unorganised manner. … The reason for dumping, in most cases, is that the data has lost its value over time and occupies huge memory space. Retrieval from the dump is difficult but not impossible.

How does core dump work Linux?

A core dump is a file that gets automatically generated by the Linux kernel after a program crashes. This file contains the memory, register values, and the call stack of an application at the point of crashing.

How do I open a core dump file?

Configure a core dump debug session Select Run | Open Core Dump from the main menu or call this action from Help | Find Action ( Ctrl+Shift+A ). If there are no Core Dump Debug configurations in the project, the Open Core Dump dialog will be shown right away. Otherwise, select New Core Dump from the popup menu.

What is core dumped segmentation fault?

Core Dump/Segmentation fault is a specific kind of error caused by accessing memory that “does not belong to you.” When a piece of code tries to do read and write operation in a read only location in memory or freed block of memory, it is known as core dump. It is an error indicating memory corruption.

What is Abrt hook Ccpp?

C/C++ hook Abrt overrides default core_pattern with a pipe to abrt-hook-ccpp executable that stores core dump in abrt’s dump location and notifies daemon about new crash. It also stores number of files from /proc/<PID>/ that might be useful for debugging — maps , limits , cgroup , status .

What is core dump in Solaris?

A core dump is a file that records the contents of a process along with other useful information, such as the processor register’s value. There are two types of core dumps: system core dumps and process core dumps.

Where are core dumps stored Fedora?

Core dumps will be processed by systemd-coredump and metadata about core dumps will be stored in the system journal. Currently abrt-ccpp. service installs its own core pattern to /proc/sys/kernel/core_pattern that overrides the core pattern set by systemd.

How do I enable core dumping in Java?

To enable core dumping, try “ulimit -c unlimited” before starting Java again. When I play Minecraft, usually on servers, my game constantly crashes, and the reason for this is: ‘Core dumps have been disabled. To enable core dumping, try “ulimit -c unlimited” before starting Java again!’

What is heap dump and thread dump in WebSphere?

A thread dump is a dump of the stacks of all live threads. Thus useful for analysing what an app is up to at some point in time, and if done at intervals handy in diagnosing some kinds of ‘execution’ problems (e.g. thread deadlock). A heap dump is a dump of the state of the Java heap memory.

Why heap dump is generated in WebSphere?

Although heap dumps are generated only in response to a detected memory leak, you must understand that generating heap dumps can have a severe performance impact on WebSphere Application Server for several minutes. … This approach enables problem determination tools to identify the source of the memory leak.

How do you analyze a heap dump and thread dump in WebSphere application server?

1. Using wsadmin.sh. Login into WAS Server. Go to profile and bin folder. …
2. Using kill. Find the JVM process ID using ps command. Execute kill -3 $PID # kill -3 $PID. …
3. Using the WebSphere Administrative Console. Login into DMGR Console. Navigate to Troubleshooting at the left side.

What is heap memory?

Heap memory is a part of memory allocated to JVM, which is shared by all executing threads in the application. It is the part of JVM in which all class instances and are allocated. It is created on the Start-up process of JVM. It does not need to be contiguous, and its size can be static or dynamic.

How do I analyze a heap dump file?

Open the heap dump in Eclipse Memory Analyzer using the option File –> Open Heap Dump. First, it will prompt you to create a leak suspect report. The user can create it or skip it. The “overview” tab of the memory analyzer will show the total size of the heap and a pie chart of object size.

How do I make a heap dump?

Start the administrative console. In the navigation pane, click Troubleshooting > Java dumps and cores. Select the server_name for which you want to generate the heap dump. Click Heap dump to generate the heap dump for your specified server.

What causes Java heap dump?

By default, an IBM Java JRE will automatically generate a heapdump and a javacore file from an OOM error. … The running process that causes an OOM error to be thrown will probably keep throwing OOM errors, and by default, every OOM error will generate a javacore and heapdump.
