What is concentric venting

A concentric flue system provides a very compact room sealed flue, where the air supply and flue gases are managed within a one-piece concentric duct system. Typically using a duct within a duct, flue gases are expelled through the inner duct with combustion air being drawn in via the outer annulus.

How does a concentric flue work?

A concentric flue system provides a very compact room sealed flue, where the air supply and flue gases are managed within a one-piece concentric duct system. Typically using a duct within a duct, flue gases are expelled through the inner duct with combustion air being drawn in via the outer annulus.

What is a concentric pipe?

A concentric reducer is used to join pipe sections or tube sections on the same axis. The concentric reducer is cone-shaped, and is used when there is a shift in diameter between pipes. For example, when a 1″ pipe transitions into a 3/4″ pipe and the top or bottom of the pipe doesn’t need to remain level.

Do gas tankless water heaters need to be vented?

Installing a tankless water heater outside frees up indoor space and requires no additional venting. … Traditional gas tank water heater require venting through the roof. Tankless water heaters use fans to blow exhaust from the unit horizontally, allowing vents to terminate on the side of a house.

Can you vent a tankless water heater with PVC?

In most cases, PVC makes a great venting material. It’s the least expensive option and is easy to install. And it’s a good reason to consider a high-efficiency condensing unit.

Can you extend a concentric vent?

You can extend the concentric vent kit up to 60″ by replacing the piping between the concentric Y fitting and the rain cap. You must use SDR-26 PVC pipe. … It’s 33.5″ length is so that it can extend through a single roof opening, then you can connect 2″ or 3″ pvc from your furnace to it.

Do you glue concentric vent?

Allow 8” center-to-center distance between concentric vent terminations on multiple boiler installations (see Fig. 7). It is very important to properly glue all joints. Failure to do so can result in property damage, serious personal injury, or death.

How much ventilation does a tankless water heater need?

4. Outdoor tankless water heaters don’t need venting. In warmer climates, it’s easy to install a tankless water heater outdoors, with no additional venting required. Tankless units are designed to withstand below-freezing temperatures through self-warming capabilities that prevent freezing and cracking.

Can tankless water heater use existing vent?

For the same reason you can’t vent a tankless water heater with a furnace, you won’t be able to use the existing vent pipe from an old gas tank water heater. The existing vent for tankless water heaters is not compatible because most are galvanized vent piping and will rust quickly.

Can a tankless water heater use the same vent?

No common venting. The tankless heater cannot share vent piping with any other appliance, and it cannot use a masonry chimney flue for venting.

Article first time published on

What is difference between concentric and eccentric reducer?

Concentric reducers reduce the pipe in the center. … Eccentric reducers are used when the pipes have to maintain the same top or bottom level. Eccentric reducers are frequently used to avoid trapping air within the system, so they are often used when both air and liquids may be flowing together.

Where is concentric reducer?

Concentric reducers are used where the pipework is vertically installed and at the discharge side of pumps. Eccentric reducers are more often used when the pipework lays on a pipe rack.

Are concentric circles?

Concentric circles are circles with a common center. The region between two concentric circles of different radii is called an annulus. … Picking any two points on the outer circle and connecting them gives 1/3.

What is the downside of a tankless water heater?

The main disadvantage of tankless water heaters is their upfront cost (unit and installation) is significantly higher than tank-style heaters. … they take longer to deliver hot water. the water temperature is inconsistent when multiple outlets are on simultaneously. they cannot provide hot water during a power outage.

Is it normal to smell gas from a tankless water heater?

Tankless gas water heaters are not designed to release gases even when they are operating. … If you smell gas from a tankless water heater, it means there is a leak somewhere, which you need to get fixed out immediately. A tankless water heater will give out gas-only when there is a gas leak or incomplete combustion.

Does an electric tankless water heater need to be vented?

No. Unlike gas tankless water heaters and gas traditional tank style water heaters, electric tankless water heaters do not require any venting. This is often one of the deciding factors when choosing whether you should purchase a gas or electric tankless water heater.

Can high efficiency furnace be vented through the roof?

Depending on the installation, a high efficiency furnace will have at least one, and sometimes two, PVC pipes exiting the home. In newly built homes these vents will usually exit thru the roof. … One pipe is always required, which is for the exhaust.

Can you vent a furnace through the wall?

Direct Vents These furnace vents can be installed horizontally through an exterior wall, or vertically so exhaust fumes go out through the roof. Although more costly than a natural vent, a direct vent is also a more efficient and safer option.

How long can a furnace exhaust pipe be?

The maximum vertical distance you can run a furnace exhaust vent is about 15 feet. If there is a forced air inlet within 10 feet of the exhaust vent, the exhaust gas ventilation terminal should be positioned at least 3 feet above it.

What kind of vent does a tankless water heater use?

Tankless water heaters can be vented in two ways: power-vent or direct-vent. Power-vent units use indoor air for combustion and simply vent the exhaust to the outside. Direct-vent units pull in air from the outside, so they have two vents for intake and exhaust.

Can furnace and water heater share vent?

Many homes are built with the water heater and furnace sharing the same exhaust vent. This practice is common with standard efficiency (80%) furnaces. When installed correctly, this venting arrangement works with an 80% gas furnace (or less than 80%) + gas water heater.

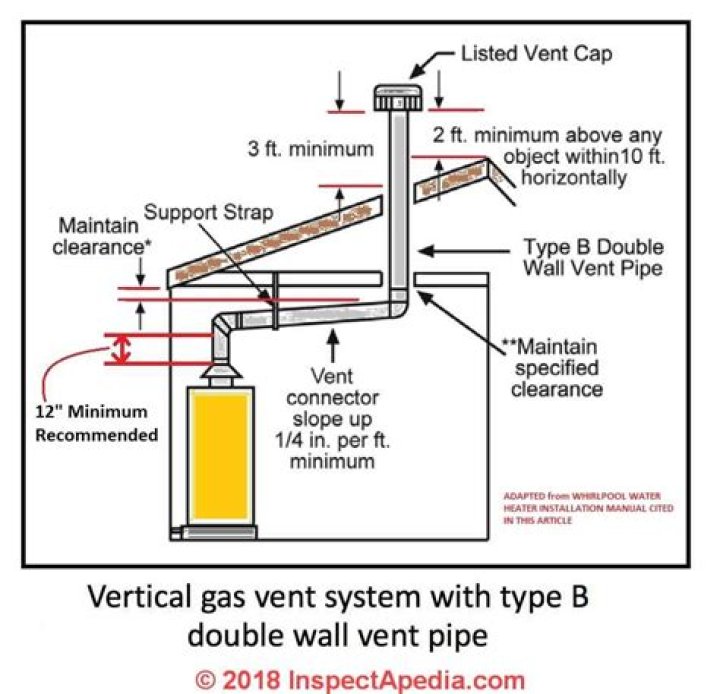

How high does a water heater vent need to be?

For a single-wall pipe, you need 6″ clearance, and you cannot pass it through a ceiling, floor, or wall unless it’s masonry or concrete (non-combustible). For the draft hood connection, you need to allow for at least 12″ of vertical vent before throwing an elbow fitting in the line.

Can I vent hot water heater through wall?

Direct Vent Water Boiler The air that is used for combustion will come from the water vent, this vent will either through the roof or from the outside of the wall. … This means that only one single pipe is required to go through the roof or wall where the clean air is moved and the off-gasses will be vented.

How far can you vent a power vent water heater?

The maximum equivalent vent length for the exhaust is 60 feet for 3” diameter pipe and 100 feet for 4” diameter pipe. The intake portion of the vent must be equal to or less than the vent length of the exhaust.

Why do I need a power vent water heater?

Power direct vents are used when the space in which you are installing a water heater lacks sufficient air for combustion and requires flexibility around the installation. Consult a professional plumbing contractor to make sure that you need power direct venting before going down this installation path.

Can you put a power vent on any water heater?

This difference in operation means that you can install a direct vent system almost anywhere, but a power vented water heater must be placed in a room with adequate airflow.

What does concentric and eccentric mean?

In a concentric contraction, the muscle tension rises to meet the resistance then remains stable as the muscle shortens. During eccentric contraction, the muscle lengthens as the resistance becomes greater than the force the muscle is producing.

Why is concentric reducer used in pump discharge?

This configuration prevents air pocket accumulation at the upstream end of the reducer. Concentric reducer is recommended for vertical inlet (suction) piping or horizontal installations where there is no potential for air vapor accumulation.

What is the purpose of an eccentric reducer?

Eccentric reducers are used at the suction side of pumps to ensure air does not accumulate in the pipe. The gradual accumulation of air in a concentric reducer could result in a large bubble that could eventually cause the pump to stall or cause cavitation when drawn into the pump.

What are the two types of reducer?

• Concentric reducers.
• Eccentric reducers.

How many types of elbow are there?

Elbow mainly available in two standard types 90° and 45°. However, it Can be cut to any other degree. Elbows are available in two radius types, Short radius (1D) and Long Radius (1.5D).
