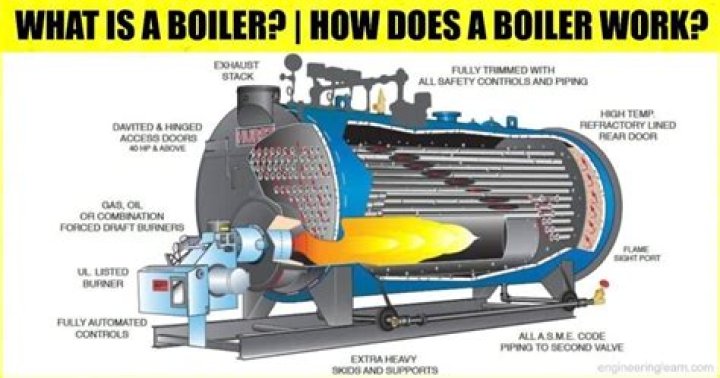

What is boiler combustion

In order for boilers to create the thermodynamic energy found in steam they must release energy from a fuel source. … Combustion is the process of igniting and burning a fuel source. As the fuel source burns it releases energy in the form of heat which can then be used to transform water into steam.

What is the purpose of automatic combustion control?

Explanation: The automatic combustion control system provides the effective prevention of the environmental pollution and steady combustion condition to get a constant steam output.

How do burner combustion control systems work?

The O2 sensor detects the “excess air” – the % oxygen present in the flue gas after combustion. … The more air we blow through the furnace, the more fuel we burn just to heat nitrogen to blow out the stack instead of heating water. Excess air can also produce excess NOx in some burners.

Which control is used in combustion control system?

Two control elements are used, ‘steam flow’ and ‘steam pressure’. The steam pressure signal is fed to a two-term controller and is compared with the desired value.

What are the 3 types of combustion?

Combustion can be divided into three types – rapid combustion, spontaneous combustion and explosion.

Which method can be used to control boilers?

Taken together, burner modulation, air/fuel cross-limiting, excess air regulation, oxygen trim and total heat control can provide excellent control and fuel efficiency for most boiler systems.

What is combustion efficiency of boiler?

Combustion efficiency is a measure of how effectively the heat content of a fuel is transferred into usable heat. … An often-stated rule of thumb is that boiler efficiency can be increased by 1% for each 15% reduction in excess air or 40°F reduction in stack gas temperature.

What is the basis on Principle of automatic control of combustion is determined *?

1. What is the basis on principle of automatic control of combustion is determined? clarification: The principle of automatic control of combustion is derived from the control of combustion.

What is parallel positioning control?

Summary. Parallel positioning controls help a burner to optimize its fuel-to-air ratio by using dedicated motorized actuators for the fuel and air valves. These parallel positioning controls directly tie into the electronic firing rate control, enabling more efficient and consistent performance.

What is boiler master control?

I. During this operation Boiler master control / Boiler Input Demand (BID) is a basis signal for signal demand or set point for main process boiler except feed water flow set. BID is used to control MW demand directly regardless main steam pressure deviation correction.

Article first time published on

Why air fuel ratio control is important in power plant?

A ratio control strategy can play a fundamental role in the safe and profitable operation of fired heaters, boilers, furnaces and similar fuel burning processes. This is because the air-to-fuel ratio in the combustion zone of these processes directly impacts fuel combustion efficiency and environmental emissions.

What are 5 examples of combustion everyday?

• Burning of Wood or Coal for the household purposes.
• Burning of Petrol or Diesel for using vehicles like car.
• Combustion of Natural Gas or LPG to cook.
• For the production of energy in thermal power plants.
• Fireworks or burning of Wax candle.

What is difference between fire and combustion?

Fire is the visible effect of the process of combustion – a special type of chemical reaction. It occurs between oxygen in the air and some sort of fuel. … Combustion is when fuel reacts with oxygen to release heat energy. Combustion can be slow or fast depending on the amount of oxygen available.

What are the 2 types of combustion?

2 Types of Fire. Combustion is applicable to two types of fire: Flaming combustion and smoldering combustion [13].

What is good combustion?

Perfect combustion is simply a mixture of fuel and oxygen, with both being completely consumed in the burning process. … Having just the right amount of oxygen (no more, no less) is called the stoichiometric point, or stoichiometric combustion. The stoichiometric point is also called the 100% air point.

What is good combustion efficiency?

Combustion ProcessEfficiency RangeBoiler with Gas-powered Burner75-83%Condensing Furnace (Gas & Oil) “High Efficiency”75-90+%

What is combustion Analyser?

Combustion analyzers are multifunction instruments designed to calculate the efficiency of all types of boilers, heaters and furnaces by measuring a range of parameters such as stack temperature, flue pressure and levels of gases. … Combustion occurs when fuel, generally a fossil fuel, reacts with oxygen to produce heat.

What are the 3 types of boilers?

There are three main types of boilers you can install into your home: combi boilers, heat only (regular boilers) and system boilers.

Why is phosphate used in boilers?

Phosphate compounds are common additives for boiler water treatment. Phosphate compounds react with any remaining hard water compounds to create a soft sludge that is eliminated through blowdown.

Why trisodium phosphate is used in boiler?

Trisodium phosphate (Na3PO4), also known as TSP, is a common boiler water conditioning chemical that establishes moderately alkaline conditions in the boiler to minimize corrosion and reduce scaling where hardness ingress occurs.

How does a low pressure boiler work?

How do low pressure steam boilers work. Low-pressure steam heating is just what it sounds like: the steam from the boiler is pushed out to the building at a low pressure as opposed to high. Low-pressure boilers generally stay between 10 and 15 psi and the temperature is maintained under about 300 degrees F.

Why is it important to prefer ash handling systems?

Why is it important to prefer ash handling systems? Explanation: Considering the large coal burning capacity plant of modern times, the amount of ash produced when the coal is burnt is in thousands of tones. It could have an effect on other subjects too if the proper ash handling methods are not followed.

What is 3 level drum control?

Three-element Control: Disturbances in drum level are caused by fluctuations in main steam flow. Figure 1 shows a typical drum level controller, which measures the drum level (1), main steam flow (2), and feedwater flow (3) and manipulates the feedwater control valve to regulate the drum level.

What is sliding pressure operation?

The term “sliding pressure” refers to a steam generating power plant startup and shutdown operating technique that allows the operating conditions (temperature and pressure) of the entire plant (furnace-boiler- process steam piping – as well as the steam turbine itself) to be brought up to – or down from – nameplate …

What is CMC power plant?

The supervisory controls include the UMC. The other synonyms are Plant load/master control, Coordinated Master Control (CMC), Automatic Power Regulation (APR), Automatic Generation Control (AGC).

What is oil fired boiler?

An oil-fired boiler uses oil rather than natural gas to provide your home with hot water and heating. Oil-fired boilers work much like gas boilers. Such systems boil oil to create hot water. The heated water then flows to your hot-water taps and through a water- or steam-based heating system.

What is Bunker C?

Bunker C is the residual oil left over after the lighter, more volatile products (gasoline, #2 diesel, natural gas) are distilled out of the crude oil. … These systems can handle the by-products and so heavy fuel oil becomes the best fuel for their needs because it is also markedly cheaper than gasoline or diesel fuel.

Who created the injection burner?

The Bunsen burner was created in 1855, and is named after its inventor, Doctor Robert Bunsen. He was a German chemist, who taught and performed research at the University of Heidelberg. In 1854, a new laboratory at the university was designed with coal-gas lines running to it.

How do you calculate air fuel ratio in boiler?

1. So 1 molecule of methane has a molecular weight of: 1 * 12.01 + 4 * 1.008 = 16.042.
2. One oxygen molecule weighs: 2 * 16 = 32.
3. The oxygen-fuel mass ratio is then: 2 * 32 / 1 * 16.042 = 64 / 16.042.
4. So we need 3.99 kg of oxygen for every 1 kg of fuel.

How much air is required for combustion?

Therefore the quantity of oxygen required for combustion of 1 kg of the fuel is: (2.66C + 8H + S) kg. ∴ Oxygen required from air for the complete combustion of fuel will be (2.66C + 8H + S – O) which can be written as 2.66C + 8 (H – O/8) + S, the term in the bracket being known as the available hydrogen.

What is rich fuel mixture?

Rich fuel mixture is a type of air-fuel mixture that has less air than the required quantity of air for the complete combustion of the fuel. These air-fuel mixtures are less efficient. It is because these mixtures lack the air required for the complete combustion of the fuel.
