What is ball bearing hinge

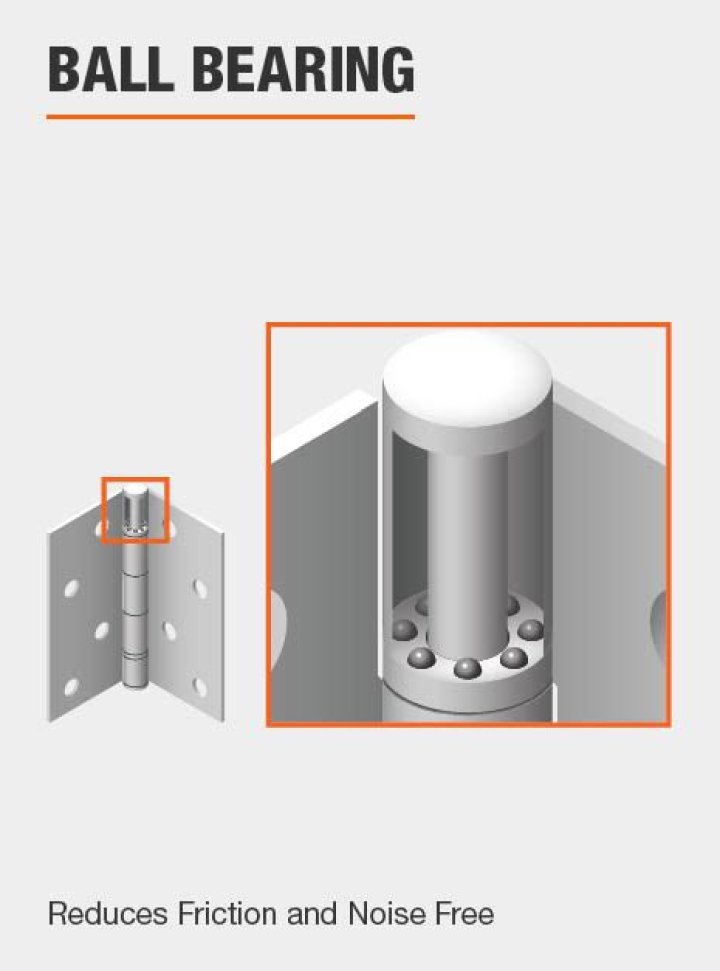

Ball bearing hinges look very similar to standard butt hinges. The difference lies at the pivot point, where there are hidden bearings placed between the knuckles of the hinge, either between each knuckle (for heaviest applications) or just a couple of the knuckles. Ball bearing hinges are considered heavy-duty hinges.

Whats a ball bearing hinge?

Should I use ball bearing hinges?

In general, the ball bearing hinges are higher quality and prevent squeaking of the hinges better than the plain bearing hinges. Hinge Outlet carries both, but we recommend the ball bearing hinges for most residential applications.

What is the difference between ball bearing hinge and regular hinge?

They differ from plain bearing hinges in that they have a steel ball bearing, or buffer, in between the knuckles. Standard weight ball bearing hinges have bearings only at the top and bottom knuckles, so a five-knuckle hinge would have two bearings. Heavy-duty ball bearing hinges have bearings between every knuckle.

What is the difference between plain bearing and ball bearing?

Plain bearings: Although the name itself sounds quite vague, these are smooth, solid surfaces that move across each other. The sheave rotates across the central hub. Ball bearings: Small spherical balls have little contact between surfaces, resulting in low friction.

Do ball bearing hinges squeak?

Over time, this friction can cause the hinges to squeak or stick. Ball-bearing hinges take the stress off the knuckles of the hinge, so the door opens more smoothly and quietly.

Which door hinge is best?

The butt hinge is one of the most popular types of plain bearing door hinges that are good for heavy doors. The butt hinge gets its name because both leaves are mortised into the door, allowing them to butt up against each other when the door is closed.

What are the different types of hinges?

Ball Bearing Hinge. The ball bearing hinge has lubricated bearings between the hinge’s knuckles to reduce friction caused by heavy doors. …
Spring-Loaded Butt Hinge. …
Barrel Hinge. …
Concealed Hinge. …
Overlay Hinge. …
Offset Hinge. …
Piano Hinge. …
Strap Hinge.

How do I know what size hinge I need?

In general, you’ll want to use one hinge for every 30 inches of door height. For example: Use two hinges for doors up to 60 inches tall. Use three hinges if the door is between 60 and 90 inches tall.

How do you lubricate ball bearing hinges?

Some hinges may require lubricating. If the operation feels stiff, apply a small spray of silicon oil, WD40, or GT85 to the knuckle joints, and wipe away the excess. The surface should be cleaned with warm soapy water and dried off.

Article first time published on

Are there left and right door hinges?

Another way to determine the door-hinge direction is to open the door and stand with your back against the hinge jamb or area. If your right hand is nearer the doorknob, then it is a right-handed hinge and door. If your left hand is nearer the doorknob, then it is a left-handed hinge and door.

What are the two main types of bearing?

Ball bearing, in which the rolling elements are spherical balls;
Roller bearing, in which the rolling elements are cylindrical, taper or spherical rollers;

What is ball bearing in friction?

A ball bearing is a type of rolling-element bearing that uses balls to maintain the separation between the bearing races. … Because the balls are rolling they have a much lower coefficient of friction than if two flat surfaces were sliding against each other.

What is sliding bearing?

Sliding bearings are bearings where only sliding friction is generated. The shaft is generally supported by the sliding surface, with oil and air in between to facilitate sliding movement. Sliding bearings are lightweight and have a long operating life while introducing minimal vibrations or noise.

What is a Grade 7 hinge?

Grade 7 Ball Bearing Hinge (Max Load 40kg). They have a CE mark and are Fire door rated. … Suitable for standard internal residential doors a pair of hinges is adequate; however fitting 3 hinges per door has its advantages.

What hinges to use for internal doors?

Ball Bearing Hinges are the most popular type of hinge and are used on internal doors. The hinge pivots on a series of small ball race bearings, offering a much smoother action. These hinges are generally made of steel or stainless steel and come in a whole host of finishes and the most common sizes are 3” and 4”.

Do door hinges matter?

Whether you are replacing an old door or hanging a new one, hinges are an important part of the structure. They may all look somewhat similar , but there are many types of hinges for various applications.

How do I choose a hinge?

Check the casing the hinge will attach to. …
Check the overlap of the door or lid on the face-framed cabinet or box. …
Measure the clearance you have between the door or lid and the box or frame. …
Weigh the door or lid the hinge will open.

How far apart should hinges be?

Because gravity works on a door in this way, hinges are placed on the high side, with the bottom hinge 10 inches from the bottom of the door and the top one 5 inches from the top of the door. You can get away with two hinges on a light, hollow-core door, but will need at least three on solid core or exterior doors.

What size hinges for kitchen cabinets?

Concealed hinges come in many versions but only two sizes, these are 26mm and 35mm. Concealed hinges are the hinges most commonly used on kitchen cabinet doors. 26mm concealed hinges are used in light units like bathroom cabinets and were oten used on budget kitchen cabinets to keep the price down.

What are the four main types of hinge?

Corner hinges. These are typically used on metal cabinets and machine covers and sit flush to the surface. …
Lift-off hinges. …
Offset hinges. …
Piano hinges. …
Leaf hinges. …
Concealed hinges. …
Side hinges. …
Weld-on hinges.

What is concealed hinge?

A concealed hinge acts as the name suggests – it is hidden from view behind the cabinet door. Another advantage of the concealed hinge is that they allow adjustment for varied fitting patterns and drilling.

What is mortise hinge?

A hinge mortise is the shallow cut made in the edge of a door and the door jamb that mirrors the size and thickness of the door hinge. The hinge mortise allows the hinge to be mounted flush with the jamb and door so the door will close properly.

Can you use Vaseline on door hinges?

Materials Required. If you’ve got a door hinge that squeals every time you open the door, we’ve got the fix for you. A little petroleum jelly will rid the hinge of that annoying squeak. The petroleum jelly works its way into the hinge and adheres well, so it won’t run off and make a mess like oil or other lubricants.

Should you oil door hinges?

Olive oil is a simple solution for fixing squeaking hinges. A few drops of olive oil will easily lubricate your squeaking hinges. We’d recommend using a pipette or oil can to make the process as easy and clean as possible. Simply apply a few drops of olive oil to the hinges and your hinge should soon be squeak-free.

Why do my door hinges leave black marks?

ANSWER: That black sooty stuff that seems to come out of the door hinges is graphite. … When you reinstall the hinges, dry them and apply a very small drop of oil to each one. That little bit of oil should be sufficient to lubricate the hinge for a long time to come.

How do you know if a door is right or left?

IF YOU ARE REPLACING AN EXISTING DOOR: With the door open, stand with your back against the hinge jamb. If your left hand is nearer the doorknob, then the door is LEFT-HANDED. If your right hand is nearer the doorknob, then the door is RIGHT-HANDED.

How do you tell if a door is right or left?

When viewed from the exterior of the home, a right-handed storm door will have a handle on the right-hand side of the unit, while a left-handed storm door will have a handle on the left-hand side of the unit.

How do I know if my hinge pin is removable?

Resolution: The NRP option will be identified by a small hole with a set screw on the side of the knuckle. The screw will be hidden when the door is closed. If there is no hole with a set screw, then the pin can be removed.

Do all hinges have pins?

Most all the hinges come standard with removable pins. Non removable pin hinges are available with almost any Emtek or PHG hinge upon request.

Why do hinge pins come out?

Over time, the weight of a door can cause screws to pull out of their holes and make the hinges loose. Hinge pins that are not fully inserted into the hinge barrel will work their way up out of the hinge and fall onto the floor, resulting in a broken door hinge.
