What is an instrument loop

Instrument loop diagrams are also called instrument loop drawings or loop sheets. These set of drawings are more detailed than process and instrument diagrams (P&IDs). Loop diagrams are the most detailed form of diagrams for a control system and thus it must contain all details omitted by PFDs and P&IDs alike.

What is a P&ID Loop?

P&IDs and loop diagrams are construction and documentation drawings that depict the flow of the process and illustrate the instrumentation control and measurement interactions, wiring and connections to the process. The process is illustrated in sections or subsystems of the process called loops.

How many types of loops are there in instrumentation?

There are two common control loop systems used in industrial processes. They are the open loop system and the closed loop system. The systems are distinguished by the control actions.

What is instrument loop checking?

The Loop checking is defined as pre-Commissioning activity which is initiated after installation of instruments in the field and carry out the instrument loop checks between installed field instrument and respective control system i.e. PLC or DCS.

What is ILD instrument loop diagram?

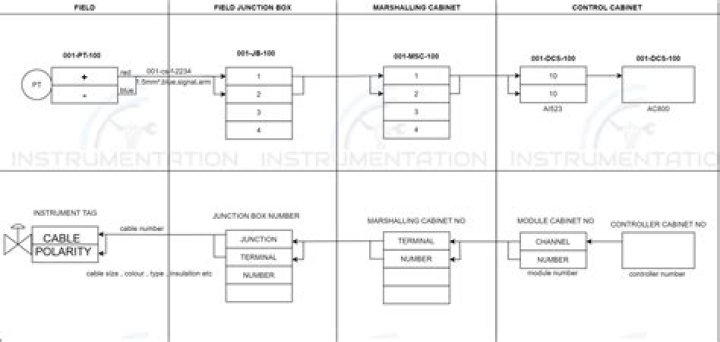

Instrument loop diagram (ILD) represents a connection from the field instrument to Control Room. ( vice versa) Instrument loop diagram is divided into two basic sections. One is the field side and other is Control Room side. ( vice versa)

What are the 3 types of loops?

Visual Basic has three main types of loops: for.. next loops, do loops and while loops.

How do you conduct a loop check?

1. Ensure that the electricity supply has been disconnected.
2. Connect an insulated copper conductor of suitable length(long lead) to one terminal of the ohm meter.
3. Connect a standard length test lead to the other terminal of the ohm metre(short lead.

What is difference between P&ID and PFD?

A Piping and Instrument Drawing (P&ID) includes more details than a PFD. It includes both major and minor details of the chemical process. … P&ID is a detail form of PFD. Process engineers, with coordination of piping, instrumentation, electrical and safety engineers, are responsible for designing P&ID’s.

What is a control loop in instrumentation?

A Control loop is the fundamental building block of the industrial control system or industrial automation. … An instrumentation control loop consists of a controller that can adjust the process variable equal to setpoint by measuring the current process variable using sensors.

How would we loop check an on/off valve?

if you want to check ON/OFF control valve,during the loop check,when you give 24 v dc from control room ,the valve must open fully, and when you give 0 v dc the valve must close.

Article first time published on

What is meant by hot loop and cold loop testing?

Cold Loop checking: Checking of wires continuity of respective field instrument-Junction box-DCS/PLC marshaling panel terminal. Hot loop checking: Once you power up your field instrument through DCS/PLC system, by stimulating process input from respective field instrument and cross check its response at DCS/PLC system.

What is loop signal?

The 4-20 mA current loop has been the standard for signal transmission and electronic control in control systems since the 1950’s. In a current loop, the current signal is drawn from a dc power supply, flows through the transmitter, into the controller and then back to the power supply in a series circuit.

What is open loop and closed loop in instrumentation?

The open loop system means the output of the system is free from their input. In the closed-loop system, the desired output depends on their input. The open loop system is called the non-feedback system while the closed loop is the feedback system.

How does control loop work?

A control loop is a process management system designed to maintain a process variable at a desired set point. Each step in the loop works in conjunction with the others to manage the system. Once the set point has been established, the control loop operates using a four-step process.

What are examples of closed loop systems?

• Thermostat Heater.
• Sunseeker solar system.
• Voltage stabilizer.
• Missile Launcher.
• Auto Engine.
• Inverter AC.
• Automatic toaster.
• Turbine Water Control System at power Station.

What are the purposes and usage Name 2 of instrument loop diagram?

The purpose of instrument loop diagram It is used in checking of a correct installation and connection when tested during pre-commissioning, commissioning and also for trouble shooting during operation.

How do you test a pressure transmitter loop?

1. Watch the valve move.
2. Read position feedback.
3. Read-back loop current.

What is earth loop test?

An earth loop impedance test is conducted to make sure that, if a fault occurs in an electrical circuit, the fault current will strong be enough to set off the circuit protection. If a fault current is left undetected, circuits can overheat and catch on fire.

How many loops are there?

There are mainly two types of loops: Entry Controlled loops: In this type of loops the test condition is tested before entering the loop body. For Loop and While Loop are entry controlled loops. Exit Controlled Loops: In this type of loops the test condition is tested or evaluated at the end of loop body.

What are the 2 types of loops?

Two major types of loops are FOR LOOPS and WHILE LOOPS. A For loop will run a preset number of times whereas a While loop will run a variable number of times. For loops are used when you know how many times you want to run an algorithm before stopping.

What is loop and explain its types?

In computer science, a loop is a programming structure that repeats a sequence of instructions until a specific condition is met. Programmers use loops to cycle through values, add sums of numbers, repeat functions, and many other things. Two of the most common types of loops are the while loop and the for loop. …

Why is loop control needed?

Control loops are systems applied by design engineers in various industrial applications to maintain process variables (PVs) at a desired value or set point (SP). Control loops are important for maintaining the stability of a system, and for consistently producing the desired outcome of a process.

Why do we need loop control?

With loop control statements, you can repeatedly execute a block of code. … for statements loop a specific number of times, and keep track of each iteration with an incrementing index variable.

What are the basic elements of control loop?

A control loop consists of all the physical components and control functions needed to adjust or maintain the value of a measured process variable (PV) to your desired value, or setpoint (SP). To do this, your loop needs at least three basic elements – an input, a controller, and an output.

Are valves included in PFD?

A PFD should include: Control, valves and valves that affect operation of the system. Interconnection with other systems. Major bypass and recirculation lines. System ratings and operational values as minimum, normal and maximum flow, temperature and pressure.

Does PFD have valve?

PFD will contain (main process piping, main equipment number, Equipment Name, Flow directions, Major bypass lines, Critical Control Valves that affects the process, Stream Number, Stream Designation, Process parameters like operating temperature, operating pressure, flow rate, Composition and heat duty of heat transfer …

What is piping and instrument drawing and process flow diagram?

A piping and instrumentation diagram (P&ID) is a graphic representation of a process system that includes the piping, vessels, control valves, instrumentation, and other process components and equipment in the system. The P&ID is the primary schematic drawing used for laying out a process control system’s installation.

What is Loop folder?

A loop folder is a manila folder or an electronic folder that contains an assortment of documents related to the instrumentation for a specific process control loop. The exact contents of a loop folder are defined in a project’s standards/requirements.

Which can be successfully tested using loop testing methodology?

• In Software Engineering, Loop testing is a White Box Testing. This technique is used to test loops in the program.
• Loops testing can reveal performance/capacity bottlenecks.
• Loop bugs show up mostly in low-level software.

What is cold testing?

Definition of cold test : a test of oils (as lubricating oils) to determine the temperature at which a cooled sample begins to deposit solid material or becomes too viscous to flow also : the temperature so determined.

What is cold test in electrical?

The objective of the cold test to the determination of the ability of components, equipment and samples to be used, stored or transported at low temperature. APPLICABLE STANDARD. IEC 60068-2-1.
