What is an immersion test
Mia Kelly
Published Mar 02, 2026

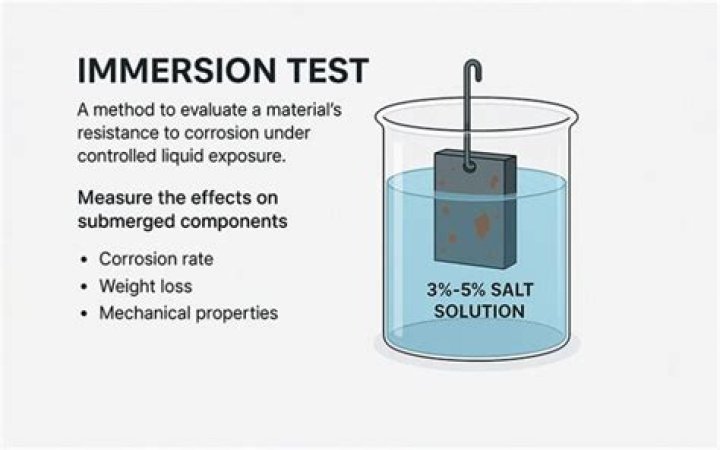

Immersion testing evaluates how well your product or component will hold up when submerged in water or other liquids. This is not limited strictly to waterproofing — other factors, such as the ability to withstand rapid changes in pressure or exposure to caustic chemicals, can also be made a part of testing.
What is immersion transducer?
An immersion transducer is a single element longitudinal wave transducer with a 1/4 wavelength layer acoustically matched to water. … Immersion transducers can be focused either spherically or cylindrically upon request within the allowable focal range for a given frequency and element size.
Which one is an advantage of immersion testing technique?
Immersion techniques provides significant coupling uniformity, simplicity of changing angles without changing the transducers, transducers not exposed to wear during use,, no special transducers adapter are required, simple adjustment of icidence angle, testing speed faster, delay line of water coupling advantageous …
What is ultrasonic testing and how does it work?
Ultrasonic testing (UT) is a non-destructive test method that utilizes sound waves to detect cracks and defects in parts and materials. It can also be used to determine a material’s thickness, such as measuring the wall thickness of a pipe.What is ultrasonic pulse echo technique?
In the pulse-echo ultrasonic technique, an ultrasound wave is excited and detected by two identical piezoelectric transducers (transmitter and receiver), which are glued to polished opposite sides of a sample. … The time evolution of the amplitude of the received pulse is defined by the sound attenuation.
What materials can ultrasonic testing be used on?
In industrial applications, ultrasonic testing is widely used on metals, plastics, composites, and ceramics. The only common engineering materials that are not suitable for ultrasonic testing with conventional equipment are wood and paper products.
What is through transmission ultrasonic inspection?
Through transmission was used in the early days of ultrasonic testing and is still used in plate and bar production. A probe on one side of a component transmits (T) an ultrasonic pulse to a receptor (R) probe on the other side. The absence of a pulse coming to the receiver indicates a defect.
How do ultrasonic transducers work?
Systems typically use a transducer which generates sound waves in the ultrasonic range, above 18 kHz, by turning electrical energy into sound, then upon receiving the echo turn the sound waves into electrical energy which can be measured and displayed.What is focused transducer?
A focused transducer can improve the sensitivity and axial resolution by concentrating the sound energy to a smaller area. Immersion transducers are typically used inside a water tank or as part of a squirter or bubbler system in scanning applications.
What are types of ultrasonic testing?- Automated Ultrasonic Backscatter Technique.
- Phased Array Ultrasonic Testing.
- Long Range Ultrasonic Testing.
- Internal Rotating Inspection Systems.
- Time of Flight Diffraction.
- Dry-Coupled Ultrasonic Testing.
- Rapid Ultrasonic Gridding (RUG)
What is the basic principle of ultrasonic testing?
The basic principles of ultrasonic testing involve the propagation and reflection of sound waves. This 8-minute, 14-second video shows how defects and abnormalities can be detected using the pulse-echo method.
Which of the following is an advantage of contact testing over immersion?
Q.An advantage of immersion testing is that:A.Large parts are easily inspectedB.Most test systems are easily transported in the fieldC.High test frequencies may be usedD.Most test systems are not easily transported in the field
Which of the following would make a good Couplant?
Term Some transducers are specifically fabricated to be:Definition Better transmitters Better receivers Used in high temperature applicationsTerm The ability to locate a small discontinuity is called:Definition SensitivityTerm Which of the following would make a good couplant?Definition Water Oil Glycerin
When an ultrasonic beam reaches the interface of two dissimilar materials it is?
Q.When an ultrasonic beam passes through the interface between two dissimilar materialsat an angle, a new angle of sound travel is formed in the second material due to:B.Transmission of ultrasoundC.Compression of ultrasoundD.RefractionAnswer» d. Refraction
How do ultrasonic flaw detectors work?
For ultrasonic flaw detection, standard transducers employ an active element that is made of either a polymer, composite, or piezoelectric ceramic. When an electrical pulse of high voltage is applied to this element, it vibrates through a particular spectrum of frequencies and produces sound waves.
What is pitch catch technique?
The pitch-catch technique is an application of ultrasonic testing where the ultrasonic beam follows a somewhat complex path (i.e., the beam is reflected one or more times before reaching the receiver). … For direct pitch-catch, the receiver is placed where the reflected beam is expected if there are no defects.
What is pulse echo principle?
The second key principle is the pulse-echo principle, which explains how the image is generated. … These reflected sound waves, or echoes, cause the crystals in the transducer to deform again and produce an electrical signal that is then converted into an image displayed on the monitor.
What is the maximum frequency used in ultrasonic inspection?
What is the maximum frequency used in the ultrasonic inspection? Explanation: The maximum frequency that may be needed for an ultrasonic inspection is around 50 MHz. Such frequencies make it easy for the devices to detect the flaws.
What does ultrasonic waves carry more?
Answer is “both frequency and energy“
Which of the following statements is true for ultrasonic test?
Which of the following statements is/are true for the ultrasonic test? Explanation: Ultrasonic test uses sound waves of high frequency to detect discontinuities. This method is used to detect flaws on the surface and also deep inside the component.
What is the maximum thickness for ultrasonic testing?
Conventional ultrasonic testing (according to BS EN ISO 17640) (1) limits thicknesses that can be examined to less than 8mm. Similarly, the draft phased array standard BS EN 13588 (2) goes down to 6mm.
What is DAC curve in UT?
DAC – Distance Amplitude Curve – is a method of compensating for the fact that the pulse-echo response of a reflector will decrease as the distance of the reflector from the ultrasonic probe increases. … BS EN ISO 16811:2014 Non-destructive testing – Ultrasonic testing – Sensitivity and range setting.
What is a delay line transducer?
Delay line transducers are single element broadband contact transducers designed specifically to incorporate a short piece of plastic or epoxy material in front of the transducer element. … Delay lines can be contoured to match the surface geometry of a part and can also be used in high temperature applications.
What is a dual transducer?
A dual element transducer consists of two crystal elements housed in the same case, separated by an acoustic barrier. One element transmits longitudinal waves, and the other element acts as a receiver.
What is contact transducer?
Contact transducers are used for direct contact inspections, and are generally hand manipulated. They have elements that are protected in a rugged casing to withstand sliding contact with a variety of materials. These transducers have an ergonomic design so that they are easy to grip and move along a surface.
Which sensor is used for ultrasonic imaging?
After excitation with a short high-voltage pulse, the piezo sensor used to insonify the medium produces a short ultrasound burst.
How ultrasonic sensors are made?
Applications of Ultrasonic Sensors Our ultrasonic sensors, made with piezoelectric crystals, use high frequency sound waves to resonate a desired frequency and convert electric energy into acoustic energy, and vice versa. Sound waves are transmitted to and reflected from the target back to the transducer.
What is ultrasonic signal?
Understanding Ultrasonics Ultrasonic Sensing/Control Basics Ultrasonic signals are like audible sound waves, except the frequencies are much higher. Our ultrasonic transducers have piezoelectric crystals which resonate to a desired frequency and convert electric energy into acoustic energy and vice versa.
What are the three types of ultrasonic inspection methods?
There are three basic ultrasonic inspection methods: pulse echo, through transmission, and resonance.
What is 6db drop method?
-6 dB drop A probe is swept from left to right. When the edge of the beam encounters the indication, a signal appears on the A-Scan. When the beam is completely over the indication, the echo is at its maximum amplitude.
What does NDT mean?
NDT stands for Non-Destructive Testing. It refers to an array of inspection methods that allow inspectors to evaluate and collect data about a material, system, or component without permanently altering it. NDT may also be called: NDE (non-destructive examination or evaluation)
