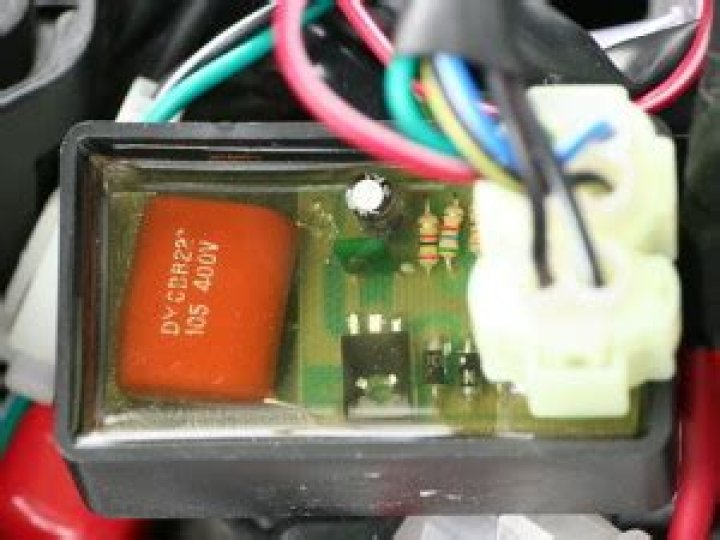

What is an ignition module

The ignition control module (ICM) gathers information from a triggering device (usually the crankshaft position sensor or camshaft position sensor) to determine your vehicle’s base ignition timing. … It is responsible for switching the ignition coil(s) on and off to fire the spark plugs.

What are the symptoms of a bad ignition module?

Acceleration Issues. The vehicle may shake, vibrate or jerk when the gas pedal is pressed. There may be hesitation or lack of power during increases in speed.
Temperature Problems. A faulty ignition module can cause a vehicle to overheat. …
No Power. The engine may turn over without starting.

What causes an ignition control module to fail?

The number one reason that ignition modules go bad is because of heat. On most of the cars that have a recurring problem with this, they have the original distributor in the car. As the distributor ages and wears, the bushing in the shaft goes goes bad and starts to cause excessive heat.

What happens when ignition control module goes bad?

a faulty ignition module can affect ignition timing, resulting in an engine that misfires and runs rough. the engine may also run well at low speed, but won’t accelerate well. 3. stalling: a failing ignition module can occasionally prevent the engine from getting spark, causing it to stall.

What is the function of a ignition module?

The ignition module works together with the computer to time the engine’s ignition system for the best performance and efficiency. One of the specific functions of the ESC module is to advance or retard the timing of the ignition system, depending on the operation conditions.

Can you drive with a bad ignition module?

A failing ignition control module can be a real headache at times. It can produce a wide range of engine performance problems, including preventing the engine from starting or stalling the engine as you speed down the road, just to let you resume your driving a few minutes later, as if nothing had happened.

How much does it cost to replace ignition module?

How Much Does an Ignition Control Module Replacement Cost? A replacement ignition control module can cost anywhere between $50 and $250. Labor costs can range anywhere between $70 and $90.

How do you replace an ignition control module?

Reach under the engine and unplug the coil assembly electrical connectors. Remove the assembly mounting bolts using a ratchet and socket. Remove the assembly from the engine and remove the coils using a ratchet and socket. Remove the old ignition module from the base plate and install the new unit.

Where is the ignition switch module?

The ignition module may be located inside the distributor, on the distributor housing, or mounted to the side of the engine compartment. When a module goes bad, it normally fails totally and the engine won’t run at all. Checking your ignition module is an easy task that requires only the simplest of tools.

How long do ignition modules last?

Life Span. Federal law in the United States dictates that the ignition coil and ignition module on new vehicles are warranted for at least two years or 24,000 miles, whichever occurs first. The insulation in the ignition coil will degrade over time, but many coils are designed to last 100,000 miles or more.

Article first time published on

What would cause an ignition coil to burn up?

The main cause of ignition coil burnout is the insulating material aging. For example, when the ignition coil high voltage can’t output smoothly, the current turbulence in coil will occur, causing the temperature to rise rapidly and accelerate the insulating material aging.

What is the difference between an ignition coil and ignition module?

An ignition coil is the coil in a vehicle’s ignition system used to convert sufficient voltage to spark the spark plugs. The ignition control module helps manage the electrical current used by the ignition coil.

What problems can a bad ignition switch cause?

A defective ignition switch may cause your vehicle’s interior lights, dashboard lights, and other accessories to turn off momentarily. Intermittent loss of lighting and other accessories is one of the symptoms of a bad ignition switch.

Does a win module have to be programmed?

No you will have to program the keys again and its better to have all keys during programming. when the WCM is replaced need the security pin code. and original keys sometimes do not reprogram with new updated WCM modules.

Can a bad coil cause a misfire?

If an ignition coil is not working properly, your engine will likely misfire. A misfiring engine results in a jerking or sputtering feel when you are moving at normal speeds. When you stop, a misfire from a bad ignition coil may cause your vehicle to run roughly, vibrate or shake.

How do you test a ignition module on a Chevy?

Open the hood of the GM vehicle. Locate the ignition module. …
Connect the positive test light lead to the ignition module signal wire. …
Ask a partner to crank the engine numerous times.

Is an ignition coil the same as a spark plug?

While spark plugs and ignition coils aren’t the same, they‘re both part of a vehicle’s ignition. Or rather, part of a gasoline-powered vehicle’s ignition system. … That causes a magnetic field to form in the ignition coil. At this point, the secondary ignition system comes into play.

Should I replace all ignition coils at once?

A faulty ignition coil cannot be repaired; it must be replaced. … In cases like this, your mechanic may recommend replacing all three rear ignition coils as a preventative measure. Whenever one of the ignition coils fails, it’s also recommended replacing all spark plugs if they haven’t been replaced in a while.

How do you diagnose ignition problems?

Verify Lack of Spark. …
Check for Any Obvious Issues. …
Probe for Power. …
Double-Check Firing Order. …
Double-Check Initial Timing. …
Test/Inspect Spark Plugs. …
Test Spark Plug Wires. …
Check for Spark at Coil.

Can ignition switch cause no spark?

No spark is one of the most common causes of a no-start condition. It’s the first thing I check for. … The igniter or ignition module, the pick up coil or crank sensor, the cam sensor, and the ignition switch are included.

How can you tell if your distributor is bad?

Check the Distributer Cap. Often the distributor cap is suspect. …
Check the Contact Points. Inspect the condenser; the engine will not function if it is broken. …
Check the Arc. …
Tools and Materials.
Crank the Engine. …
Remove the Old Distributor. …
Set the Point Gap. …
Set the Distributor.

Are cheap ignition coils OK?

While low-grade coils cause misfiring and difficult starting, using them can have more serious consequences. As coils are controlled by the engine management computer (ECU) they rely on fly-back voltages that are fed back after the spark plug has been ‘fired.

Can a bad coil burn a spark plug?

since a faulty ignition coil causes a misfire, it will also cause the related spark plugs to foul. always replace the spark plug or plugs that the bad coil was firing. this will restore the power and fuel economy. some manufacturers recommend replacement of the ignition coils at scheduled intervals.

How do I know if my spark plugs need changing?

The car is hard to start. The battery is often blamed as the culprit for a vehicle not starting. …
The engine misfires. …
The car gets poor fuel economy. …
Rough engine idle. …
Your car struggles to accelerate. …
The engine is really loud. …
Your ‘check engine’ light is on.

What's inside an ignition module?

Ignition control modules typically consist of one or more transistors or other electronic components that can be heat sensitive. Some modules are located inside or near the distributor, where they are often subjected to high temperatures.

How do you tell if you have points or electronic ignition?

It’s fairly simple. If you open your hood, be sure your car has a distributor cap with very thick wires coming out of the top and going to each spark plug. If you don’t have a standard distributor cap like this, you don’t have points. If you do have a standard distributor cap, you can open the cap up and peek inside.

What are the four different types of ignition?

Currently, we recognize four types of ignition systems used in most cars and trucks: conventional breaker-point ignitions, high energy (electronic) ignitions, distributor-less (waste spark) ignition and coil-on-plug ignitions.
