What is a wired thermostat

A wired thermostat belongs to the category of heating accessories known as atmosphere thermostats. These devices are designed to regulate the temperature in a home. They allow you to enter an ideal comfort temperature and switch the heating on or off in order to maintain this setpoint temperature.

How does a wired thermostat work?

Inner Workings. Thermostat wiring consists of wires that connect the transformer to the system relays. When you move the lever on the thermostat to turn up the heat, this rotates the thermometer coil and mercury switch, tipping them to the left.

Is my thermostat hardwired?

Most digital thermostats are both hardwired to your house and have backup batteries. … Knowing what to expect when batteries are low or changing them annually can help you take care of your HVAC system.

Are all thermostats wired?

Many thermostats function without a C wire by periodically pulling power from one of the other wires, usually the red wire. However, if your thermostat information says a C wire is required, then this information is for you. The wire is needed for most brands and models including ecobee and Honeywell Lyric.

What happens if thermostat is wired wrong?

Potential consequences of improper installation could include: Electric shock. Blowing a circuit breaker. Damaging the thermostat unit, the electrical system or even the AC/furnace unit itself.

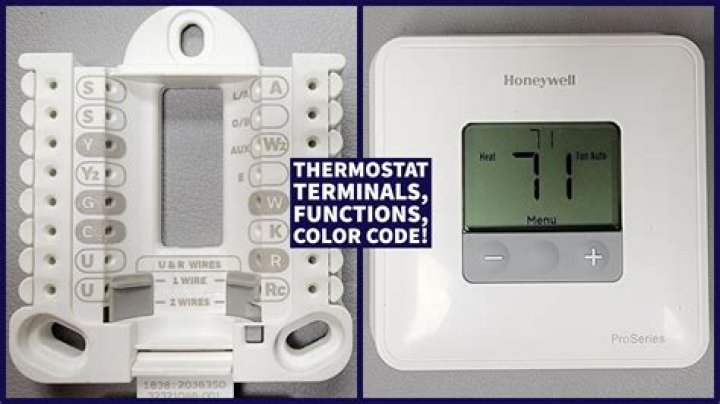

What are the four wires in a thermostat?

In general, the heating wire (often white), goes into the “W” port, the cooling wire (often yellow), goes into the “Y” port, the wire that sends power from the HVAC system to the thermostat (often red), goes into the “R” port, the fan wire (often green), goes into the “G” port, and the common wire (often blue), which …

How many wires should my thermostat have?

The most basic thermostat has 2 wires; usually a red and a white wire. Two wire thermostat wiring is used for furnaces only and usually doesn’t need a “C” or “Common” wire.

What gauge wire is thermostat wire?

The most common thermostat cabling is 18/5 (18 gauge, 5 conductor), because 5 conductors typically offer enough functions for a modern thermostat/low voltage device.

Why is my thermostat not hardwired?

If your thermostat wall does not have a c-wire, or common wire, your thermostat most likely is not hooked up to your HVAC system for its power and needs batteries. When your screen is blank, it could indicate you need to replace the batteries. … Most thermostats display a low-battery symbol when the juice is running low.

Where do thermostat wires go on furnace?

The white wire underneath your thermostat connects to your heating system. It terminates at your air handler or furnace. The white wire connects to terminal W in industry-standard thermostats.

Article first time published on

Should my thermostat be on E or F?

The thermostat fan operation switch, labeled FUEL SWITCH in the diagram below, is factory-set in the “F” position. This is the correct setting for most systems. … The “E” setting will allow the fan to turn on immediately with the heating or cooling in a system where the G terminal is connected.

Can a thermostat wire cause a fire?

More than 135,000 thermostats are being recalled because contact between the thermostat wires and household line voltage may cause a fire.

Can I use a 2 wire thermostat on a 4 wire system?

Replacing an outdated four-wire thermostat with a newer model that uses two wires is not complicated, once you purchase the thermostat from a home-and-garden shop or hardware store. The procedure to install the new thermostat is straightforward and does not require the assistance of a certified electrician.

What color wire goes where on a thermostat?

This is the most typical thermostat wiring style, and it applies to systems that regulate both heat and air conditioning. The wires are typically arranged as follows: red for 24-volt hot, white for heat, yellow for cooling, green for the fan, and blue for common (although the common wire may be a different color).

Can I use telephone wire for thermostat?

Phone wire would probably work fine in most millivolt situations, but some thermostat wire has decent current going through it (like 24V control loops), so – as always – why not use the right stuff. It might leak more current and not complete the circuit in long runs….the lighter wire, that is.

What if my thermostat has only two wires?

When it comes to low voltage systems, a 2 wire thermostat is usually known as a “heat only thermostat” and is used for systems like a gas furnace (with only heating option). A 2 wire thermostat can not be used for HVAC systems with a cooling option, or heating systems with multi stages or a heat pump.

Is common wire hot or neutral?

The “common” is the “neutral” or “ground” wire, depending on the type of circuit. In normal US residential wiring, you’ll have a black “hot” wire, a white “neutral” or “common” wire, and a green or bare “ground” wire.

What color is common wire?

Red, Black, and White are the colors of switch wiring for three-ways. Red and Black are connected to the switches if the White is used for neutral. The White is often referred to as Common, but the colored wires are also used as hot wires.

Why does my thermostat have a jumper wire?

Most of your current thermostat’s wires will be connected to your thermostat and go through the wall to connect to your HVAC system. However, some thermostats will have a jumper wire that doesn’t go back through the wall to connect to your system. Instead, a short jumper wire connects two thermostat terminals together.

How much does it cost to rewire a thermostat?

Thermostat Replacement Cost The average cost to replace a thermostat in a home is $140 to $350, including the unit and professional installation. Thermostat prices range from $15 to $250, depending on the type, brand, and features. Nest thermostat installation costs $100 to $200 for labor if the unit is provided.

What is the difference between R and RC on a thermostat?

They are normally connected together. If a system has 2 separate transformers , one for heating and one for cooling R is the heat power and RC is the cool power.

How does a 4 wire thermostat work?

The concept is that when you adjust your thermostat its like flipping a switch, and you are providing power to the your HVAC system to work, it’s just that in a typical 4 wire thermostat the thermostat decides where to route the power to turn on your HVAC system to make it heat, cool or run the fan.

Are common and neutral wires the same?

Generally a neutral wire is in an electrical system of a building and is tied the ground wire at the transformer. A common wire is a more general term and simply refers to the 0 Volt wire of a circuit, either electrical or electronic.

Can I replace my thermostat myself?

Can I do it myself? An experienced DIY-er can install most programmable thermostats and some smart thermostats. … If you’re replacing a central air conditioner or heating system, consider a thermostat upgrade at the same time – find a unit that will work with your family’s habits to save you the most.

Can I replace my thermostat with any thermostat?

Purchase a replacement thermostat that will work with your system. … Most replacement thermostats are compatible with all common systems. However, if your system is unique, finding a replacement thermostat may be difficult.

Are smart thermostats worth it?

Smart thermostats can be more than worth it, for the right tenant or homeowner. They can help save money and energy, they can be completely customized to the user’s needs, and they can be controlled remotely.

Why am I not getting power to my thermostat?

Power Supply In the event your home loses power, that could trip your circuit breaker, resulting in a power loss to your thermostat. To troubleshoot this, head over to your circuit breaker and ensure the breaker powering your thermostat is turned on. If it’s off, try resetting it.

Why is my thermostat not turning the heat off?

One of the most common issues is the thermostat. The wiring, switches, or heating sensors can fail on your unit. … A faulty check valve could be the cause of this type of heating system to fail. If your heating system will not shut down, then you need to call a professional technician for help.

How do I fix an unresponsive thermostat?

If the thermostat is still unresponsive, make sure the breaker is shut off and remove the cover. If it looks dirty inside, use canned air or a soft artist brush to clean away accumulated grime that may be affecting its functionality. Then look for issues like loose wiring or terminal screws and tighten them up.
