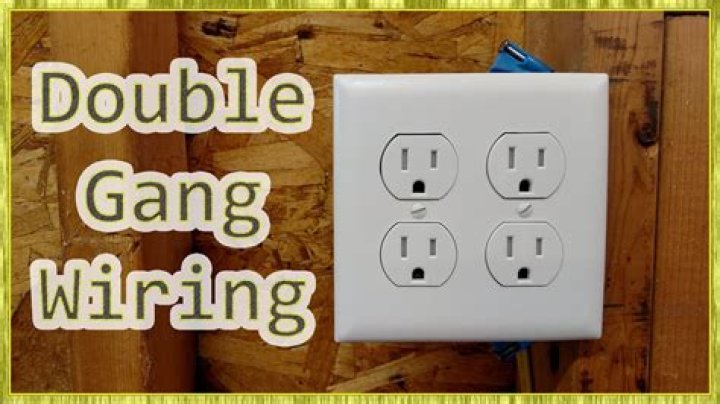

What is a two gang outlet

Two-gang electrical boxes are electrical boxes that allow you to fit two outlets or two light switches in them. The electrical boxes are made of either PVC or steel. The steel boxes have the advantage of being self grounding and do not require a grounding wire. The two-gang box secures the outlets or switches in place.

What is a 2 gang switch?

2 gang light switches also known as double light switches have two switches on the plate which control two lighting circuits. Within the wide range of 2g light switches there are multiple colours, finishes and profile types from top trusted brands, to ensure the perfect double light switch for any room.

What is the difference between 1 and 2 gang sockets?

‘Gang’ describes the number of switches on the plate. … A 1 gang switch will control a single lighting circuit, and with a 2 gang switch you can control two lighting circuits, and so on.

What does gang mean in outlet?

Each side-by-side element in an electrical box is called a gang. The standard household outlet is a single-gang duplex receptacle, meaning it has two outlets total. Two-gang duplex outlets are also common. Household switch plates are typically single-gang, two-gang, three-gang or four-gang.

Why do you need a junction box?

A junction box performs several essential functions: Encloses the wiring connections and protects them from physical damage. Provides a means for mounting the electrical device and securing the electrical cable(s) serving the device. Prevents accidental contact with live wires and terminals.

Can I use a 2 way switch for a 1 way light?

Yes it can be used. You need to com and either of the other two terminals normally S1. more often than not if you ask for a one-way switch these days you’ll be given a two-way. as a two-way can be used as a one-way some manufacturers no longer make one-way switches.

How does a 2 gang 2 way switch work?

A 2 gang, 2 way switch will have 6 terminals at the rear; two common, two L1 and two L2. 2 way means it switches between two different circuits; circuit 1 on and circuit 2 off, or circuit 2 on and circuit 1 off. You don’t have to use both circuits, you can use it as a simple on/off switch for one circuit.

What does 2 gang double pole mean?

Single pole switches can control just one circuit and a double pole switch can control two circuits. So a double pole switch is almost like having two single pole switches, controlled by the same switch.

What's the difference between a 1 way and 2 way switch?

The one-way switch has two contacts and the two-way switch has three contacts. In a two-way switch, there are two, one-way switches combined in one. One of the terminals can be connected to either of the two, but not both at the same time. … You flip the switch ON to light up the stairs as you walk up.

What does double pole mean?

Double pole switches are connected to two separate electric circuits. … They essentially contain 2 switches which are linked together and can complete the circuit either simultaneously or staggered.

Article first time published on

What is a one gang electrical box?

Single-gang boxes are intended to hold one electrical device, like a switch or a receptacle. … Double-gang boxes are intended to hold two electrical devices. 8. Round electrical boxes are used for lighting fixtures on the wall, like a sconce.

Why would an outlet have 2 hot wires?

The reason for multiple hot/neutral wires for one outlet is that the outlets are daisy-chained together. This means hot/neutral is only coming from one of the wires and it is being sent to the other wire.

Why are there 2 sets of wires in one outlet?

Two cables are hot wires—one bringing power in, the other carrying it onward to the next receptacle. Two cables are neutral and serve the same function. … (There may also be a third cable if the circuit is branching in two directions at this point.) There are two basic options for wiring the receptacle to these wires.

Can you change a 2 plug outlet to a 4 plug outlet?

If you want to convert an existing duplex outlet to a quad outlet, you’re going to need a bigger electrical box. A quad box is nothing more than a conventional double-gang electrical box. Electrical boxes are typically fastened to a stud, but you can buy remodeling, or old-work, boxes that anchor to the drywall.

Is there a difference between a 2 way and 3 way light switch?

In a normal switch, the two terminals are either connected (as shown) or disconnected. When they are connected, the switch is “on.” In a three-way switch, the top terminal connects to one or the other of the bottom two terminals.

What is 2 way switch?

Two way switching means you can switch the same light fixture from two switches that are located in different sides of a room. Two way switches have a COM terminal as well as L1 and L2 terminals. When L1 is off L2 would be on.

What is the difference between a junction box and a terminal box?

Terminal box is used for specific connections, no space for future expansion or does not require expansion of connections in future. On the other hand, junction box is with minimum specific size, plenty of woking space. Future expansion can also be planned for new connections.

Can you extend electrical wire without junction box?

Short answer: NO. Long answer: All splices must be in a junction box, and the junction box must be accessible.

How many junction boxes can you have in a house?

There are no limits on the number of junction boxes (without devices) in any particular circuit. Each piece of ‘utilization equipment’ reduces the maximum allowable load by it nameplate rating, 180va for each receptacle, and each light fixture at its maximum labeled lamp wattage.

Can you use a 2 gang 2 way switch for 1 way?

Yes, a two way switch can easily operate as a one way. A two way switch is, at least in all the cases I know of, identical to a one way switch, except that it has two sets of contacts and a common. Simply omit wiring the second contact, and, of course, omit the second switch.

Is L2 live or neutral?

L1 is live and L2 is neutral.

What does L1 and L2 mean in electrical terms?

L1 (line 1) is a red wire and L2 (line 2) is a black wire. Together, they show the motor voltage. Having both an L1 and L2 indicate that the motor voltage may be 240 volts.

What Colour wire goes in L2?

Brown for L1, Black for L2 and Grey for common. Result is Red (brown) is permant L.

How many terminals are available in two way switch?

The COM, L1, and L2 are the three terminals of the two-way switch. The L1 terminals of both the switches are connected to phase, and L2 terminals of both the switches connected to one end of the bulb terminal and the other end of the bulb terminal are connected to neutral of the AC supply.

What is the difference between a 1 pole and 2 pole socket?

Simple: Single pole means only the PHASE is switched. Double pole means both PHASE and NEUTRAL are switched together; giving complete isolation to the appliance.

Is double pole the same as 2 way?

Double pole light switches, also known as a four-way switch, are two single pole switches put together. Two separate circuits are controlled by one switch. This is typically used to control a circuit from multiple locations in a series of three switches on one circuit.

What is a pole in electrical terms?

An electric “pole” describes an electric charge determined by the number of protons and electrons in a given atom.

What is a double switch electrical?

A double-switch allows you to operate two lights or appliances from the same location. Double switches, sometimes called “double pole,” allow you to separately control the power being sent to multiple places from the same switch. For example, you might want to turn on a bathroom light separately from the ceiling fan.

What size outlet box do I need?

NEC Table 314.16 (A) Metal Electrical Boxes for Devices3 x 2 x 1 1/2“ Device Box7.5 cu. in.33 x 2 x 2 ” Device Box1043 x 2 x 2 1/2″ Device Box12.553 x 2 x 3 1/2″ Device Box188

What are the different types of electrical boxes?

• Plastic and metal electrical boxes. Most boxes are either made of plastic or metal. …
• Rectangular boxes. …
• Two-gang, three-gang, and four-gang boxes. …
• Round pan boxes. …
• Junction boxes. …
• Round and octagon boxes. …
• Ceiling fan-rated boxes.

How many wires can be in a single gang box?

Plastic Box Fill Capacities Capacities for two common sizes: Single Gang Boxes: A total capacity of 18 cubic inches allows for nine #14 gauge wires, eight #12 gauge wires, or seven #10 gauge wires. This is a wires-only capacity.
