What is a spot weld cutter

A true spot weld is when two panels are pinched together and joined through an electrical current to fuse them together. A rosette or plug weld is when you drill a hole in the top layer, pinch the two panels together, and fill the hole; joining the two panels together.

What is the difference between a spot weld and a plug weld?

A true spot weld is when two panels are pinched together and joined through an electrical current to fuse them together. A rosette or plug weld is when you drill a hole in the top layer, pinch the two panels together, and fill the hole; joining the two panels together.

How does Spot welding work?

Spot welding works by applying pressure and heat to the weld area using copper alloy electrodes. These electrodes transport an electrical current through the weld segments. As the material melts the parts are fused. At this point, the current is turned off and pressure from the electrodes is upheld.

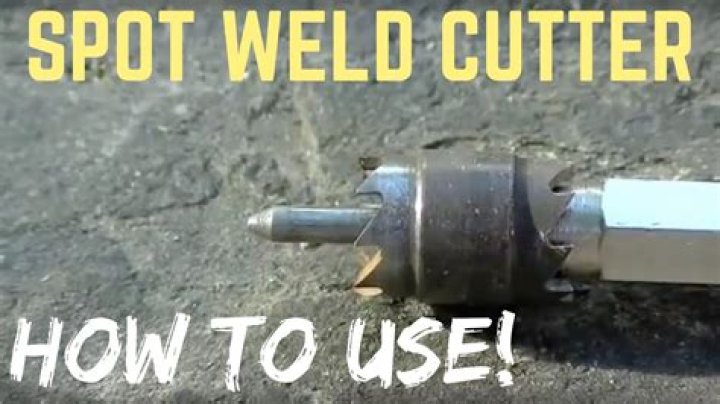

What is a spot weld bit?

SPOTWELD CUTTERS The fast, easy way to remove spot welds in car restoration or auto body repair work. Blair Spotweld Cutters are the Professional’s choice for removing spot welds. … The panel can be repaired and welded back on or a new panel be put back on using the spotweld cutters to make plug holes for welding.

Can you spot weld with MIG welder?

Using the Eastwood MIG Spot Weld Kit is the best way to achieve factory looking spot welds at home using only your MIG welder. This kit will save you time and money allowing you to get that project done and on the road.

How hard is it to spot weld?

Spot welding is quick and easy. There is no need to use any fluxes or filler metal to create a join by spot welding, and there is no dangerous open flame. Spot welding can be performed without any special skill.

Is it easy to spot weld?

Due to its lower thermal conductivity and higher electrical resistance, steel is comparatively easy to spot weld, with low carbon steel being most suited to spot welding. … Also, with zinc alloys, the copper electrodes rapidly degrade the surface and lead to a loss of weld quality.

What are the 3 stages of spot welding?

• Electrode Force. …
• Squeeze Time. …
• Weld or Heat Time. …
• Hold Time. …
• Weld Current.

Can you spot weld 3 pieces of metal together?

Joining three sheets by resistance spot welding is an increasing trend in automo- tive assembly. Compared to two-sheet spot welding, joining three sheets is signif- icantly more complicated because of the extra interface introduced.

What is the difference between arc welding and spot welding?

Arc welding uses an electric arc – a big spark – to heat and fuse metal, including filler metal. Spot welding uses electric resistance – current flow – to join pieces with no filler. Put another way, arc welding is like lightning, while spot welding is like an electric hot plate.

Article first time published on

What material can be spot welded?

Materials Used During Spot Welding There are different types of raw materials for spot welding. Other than metallic ones, you can use steel, nickel alloys, titanium, and wire mesh. Steel is extensively used in the automotive industry due to its high electrical resistance and poor conductivity.

How much does a spot welder cost?

This item 120 Volt Spot Welder Portable Air-CooledUpgraded Enhanced Rechargeable Portable Spot Welder Machine 6 Gear Adjustable Mini Small Battery Spot Welder DIY Spot Welding Nickel Strip and 18650 Battery Type-C Fast Charging 5M Nickel StripsPrice$18999$59.99$59.99Sold ByMichaelsonsNihouta

How do you break a weld without a grinder?

If you want to remove welds without using a grinder, you can either use plasma, drill, and oxy-acetylene torches as a thermal reverse procedure. Also, you can go beyond the norm and utilize a hacksaw or a band saw.

How do you snap a weld?

1. Mark the place you want to make the cut with a marker.
2. Secure the piece you want to cut using vices or clamps.
3. Put on your protective gear.
4. Connect your tool – the grinder or the saw – to the electric outlet.
5. Slowly allow the grinder to start cutting the metal. …
6. Cut the power and let the metal cool down.

What is difference between MIG and spot welding?

FactorsResistance Spot WeldingTIG / MIG WeldingSize of weldSmallVariesMaterial distortionMinimal to noneMinimal to Extreme

How big should spot welds be?

It is recommended that spot weld overlap region should be more than 8 mm in diameter.

What are plug welds?

Plug welds are a round weld that is made inside of an existing hole most commonly in one piece of metal, welding that piece to another member. … Some plug welds may include a countersink of the hole of the plug weld. This is called the included angle of countersink.

Can you spot weld through paint?

SCRS board member Dave Gruskos (Reliable Automotive Equipment) said “another big problem we always see is no welders are designed to weld through paint.” … The solution for a shop is to use shunt pliers to create an electrical circuit which allows the resistance spot weld through the e-coat.

Can a spot welder shock you?

You can get shocked while welding. It is possible to have a slight shock on rare occasions but It’s even rarer to receive a harmful or lethal shock. If you take necessary precaution steps chances are really slim.

What is a sparkle welder?

– Sparkle spot welder can be used to weld alloys of precious metal existing of gold, silver, platinum and high-grade steel. – It also can be used to restore break without remove pearl of jewelry and heat secsitive metal and aperture of moulding with the same attribute alloy. … tin and most of the brass alloys.

What are the disadvantages of spot welding?

• Only thin metals can be welded accurately and efficiently.
• Installment cost is more.
• This type of welding gets deformed.
• Changes in power supply leads to weak welding.

Why do spot welds fail?

Spot weld can fail in two completely distinct modes, namely, nugget pullout failure and interfacial failure. In this paper, we show that the nugget pullout failure is caused by plastic collapse and the interfacial failure is governed by crack or fracture mechanics.

Why is spot welding important?

Spot welding is considered to be one of the most efficient welding processes and is typically used to merge two or more metal sheets into one. To make this possible, the welder has to apply not only immense pressure and heat but also an electrical current through the sheets to eliminate resistance and make them fuse.

How thick of steel Can you spot weld?

Spot welding is primarily used for joining parts that are normally up to 3 mm in thickness. Thickness of the parts to be welded should be equal or the ratio of thickness should be less than 3:1. The strength of the joint depends on the number and size of the welds. Spot-weld diameters range from 3 mm to 12.5 mm.

Can you spot weld from one side?

Present » A single-sided spot weld does not create the same strength as STRSW for a number of reasons, strength being a major concern. Without pressure from both sides, the penetration of metal combining is much lower.

Why do my welds have air bubbles?

the bubble is a gas pocket caused when the weld pool solidifies gases are trapped and before the weld pool cools the gases expand an cause the bubbles.

Are Spot Welders AC or DC?

AC is more robust with longer life and is more familiar to many facilities. If you use press welders, power is not an issue and work with normal quality standards AC is a good choice.

How do you spot weld copper?

1. Apply brazing paste in between the two points to which you will apply the electrodes of the spot welder.
2. Lower the electrodes of your spot welder and pinch the two pieces of copper you will spot weld.

Can you spot weld stainless steel?

Spot welding is a popular way of joining two sheets of thin metal, such as stainless steel. The sheets are placed between the two welding electrodes, to which pressure is applied. … Copper-cobalt-beryllium electrodes have an optimal tensile strength and electrical conductivity for welding stainless steel.

Can you spot weld with a stick welder?

Eastwood’s Spot Weld Gun attaches to most Arc (stick) welders and uses 60 amps or less, making it possible to weld light gauge sheet metal (such as auto body panels) with virtually none of the distortion usually caused by high-powered stick welders.

Which method of spot welding is more versatile?

Resistance or Spot Welding Resistance or “spot” welding, as it is often called, is one of the most economical types of welding. The resistance welding (RW) equipment is incredibly versatile, which means it can be used on both small and large projects.
