What is a splice connector

A splice connector is a vinyl plastic wire termination device that has a sharp metal insert which safely cuts through the plastic insulating jackets of two wires and crimps them together.

What is splicing connector?

Splice connectors are plastic clips used to make quick splices or connections with two or more pieces of wire. They are designed for use with electrical cables, telephone cables and electrical device wires. … You can use a splice connector to splice wires without having to solder them.

What does splice mean in electrical?

WHEN two electric wires are joined together, the joint formed is normally called a splice. … The Western Union splice is used wherever two lengths of wire are to be joined end‐to‐end.

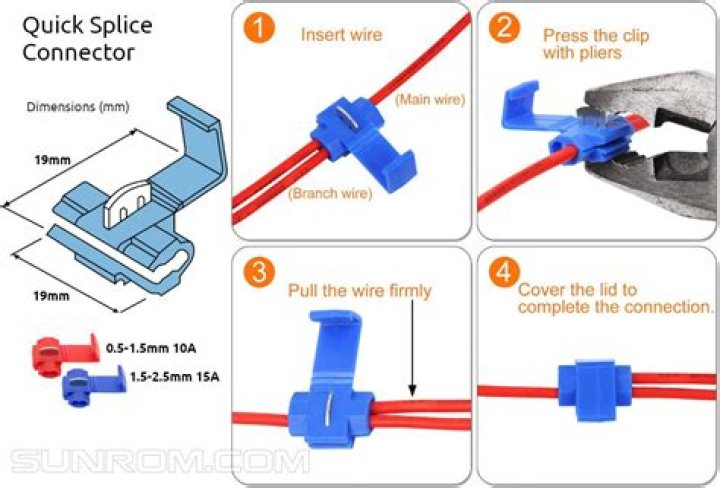

What is quick splice connector?

Quick splice connectors are a fast and easy way to splice an electrical circuit into an existing wire. … Quick splice connectors are used in automotive electrical applications, as well as commercial and industrial electrical wiring as well. Quick splices are rated for use up to to 300 volts.

What are crimp connectors used for?

A crimp connector is a type of solderless electrical connector used for terminating stranded wire. Depending on the type, crimp connectors, sometimes called crimp terminals, can be terminated to different configurations of spade-foot connectors, wire splices and screw terminals.

Can you crimp two wires together?

A wire crimping tool (not a pair of pliers, needle-nosed pliers, a hammer, a vice, etc.) is required to crimp an electrical joint between two wires, whether permanently or for temporary means. … A crimping tool, when used in a correct manner, will make a cold weld between the connector and wire.

How do you wire without cutting?

You simply want to strip back the insulation on the wire you need WITHOUT cutting any of the copper wires themselves. Then use a pointed tool to poke through the copper strands and make an eye. Then simply thread your new wire through the eye. Then close up the eye and wrap your new wire around it.

What is a fork terminal used for?

Fork Terminals are a type of connector used to attach a wire or wires to a stud, bus bar, or another part of an electrical system.

What is a splicer reducer?

Gardner Bender Aluminum Splicer-Reducers Designed to splice similar-gauge conductors or reduce the gauge from a larger wire diameter to a smaller one. Galvanic corrosion is limited by an internal wire stop, preventing direct contact of dissimilar metals inside.

How many wires can be in a wire connector?

Wire connectors are used to connect two or more wires together. There are many types of wire connectors, the most common are twist-on.

Article first time published on

What is a splice used for?

Splices can be used to form a stopper at the end of a line, to form a loop or an eye in a rope, or for joining two ropes together. Splices are preferred to knotted rope, since while a knot typically reduces the strength by 20–40%, a splice is capable of attaining a rope’s full strength.

What is a splice?

1a : to unite (two ropes or two parts of a rope) by interweaving the strands. b : to unite (two lengths of magnetic tape, photographic film, etc.) by overlapping and securing together two ends. 2 : to unite, link, or insert as if by splicing.

Is it OK to splice electrical wire?

Safety Considerations Electrical splices can never be left on their own in a wall or ceiling cavity. Instead, all splices must be contained within an approved junction box or fixture electrical box. … The old, informal method of splicing wires together with electrical tape should never be used.

Can you splice into Romex?

It must be noted that while it is possible to splice different types of Romex wire—12/2 to 12/3, for instance—you should never splice together wires of a different gauge. … Overloading a wire with more than its intended amperage could cause it to overheat, melt, and possibly catch fire.

WHAT IS A crimp splice?

A butt splice connector is a form of so called “crimp” connectors. Crimp connectors are used to terminate wires safely, or connect one wire to another. The wire is inserted into the connector. Then the connector is “crimped”, usually with pliers. As a result, the connector is bent and deformed around the wire.

Is it better to crimp or solder?

Crimping offers stronger, more reliable connections than soldering. Soldering uses heated metal to join the cable to the connector. Over time, this filler metal will degrade, which may cause the connection to fail. Most electricians will agree that crimping is also easier than soldering.

Can I crimp with pliers?

You can, but the quality will not be as it should… It is not advisable to use pliers to crimp wires because crimping process requires a lots of pressure and a pliers can not afford that amount of pressure to crimp a bunch of multi-strand wires in one go.

Can you splice three wires together?

Electrical splicing is connecting separate conductors to one another using a connecting device like a butt splice, solder or another means. Yes you can combine 3 wires together.

How do you connect wires without splicing?

To twist two wires together, you first need to strip the insulation off the wires. Next, hold the wires side by side and twist them together with your thumb and forefinger. The resulting connection should be fairly strong and hold together when a small tug is applied.

Can you super glue wires together?

super glue (cyanoacrylate glue) is a good insulator. i have heard of people using it to provide extra hold on wire wrap boards. its not doing the job of solder though, its not providing the electrical connection but rather just keeping it from coming unwrapped.

How do you splice small wires?

1. Cut a piece of heat shrink to cover the exposed wires. …
2. Face the wire terminals toward each other and touch the exposed ends together.
3. Hold the wires together by using tape to hold the wires in place against a soldering mat.

Can you connect two wires one connector?

No, it is not safe. That screw terminal is made to take just one wire. Since it doesn’t use the switch as it’s intended (by its UL listing) it’s a code violation. It will make a poor connection, which can heat up and potentially cause a fire.

What is the difference between a terminal and a connector?

Using a terminal block, you can connect or disconnect your wires at any time, with no soldering required. Connectors come in a wide variety of types, which reflects the broad range of applications they have. There are rectangular connectors, circular connectors, stepped connectors and many more.

What are spade lugs?

1 : a steel spade-shaped attachment to the rim of a tractor drive wheel to prevent slip during traction. 2 : a forked prong to be slipped under a screw or nut for making an electrical connection.

What are Crimp connectors made of?

Crimp-on wire connectors are typically made of steel or copper, and require a crimping tool to attach correctly. They are designed for making permanent, pressure-type connections and are therefore not reusable. Crimp-on connectors afford a very secure connection.

Can you put two Romex in connector?

The romex connector that is used has on the package the specs for wire size and number combinations. Usually more than two in any given connector is unacceptable.

Should you use electrical tape on wire nuts?

Never use tape in place of wire nuts—it’s simply not secure enough, and it’s vulnerable to damage. Some people like to use wire nuts and wrap them with tape. … But they are more expensive than wire nuts, and loosening them in the future when you need to remove a device can be more difficult.

Is a splice stronger than a knot?

A Splice is usually significantly stronger than a knot and is intended to be permanent. Undoing a splice and re-making it takes much more time than doing the same with most knots.

What are the 3 types of splicing tools?

• Fids. A fid is a mechanical tool made mainly from wood, plastic, or bone and used for creating splice in ropes. …
• Wire Fid. Wire fid is one of the most useful and versatile splicing tools that should be in your rope climbing gear. …
• Swedish Fid. …
• Tubular Fids. …
• Toss Splicing Wand. …
• Marline Spike.

How strong is spliced rope?

In contrast to these figures, a well spliced rope will typically retain 90 percent of its quoted strength. In fact, some ropes (typically HMPE products) are often quoted with spliced strength, as this is how the product is tested. If strength of termination is critical then a splice is always the preferred choice.
